Toyota COROLLA — PARTIAL ENGINE ASSEMBLY

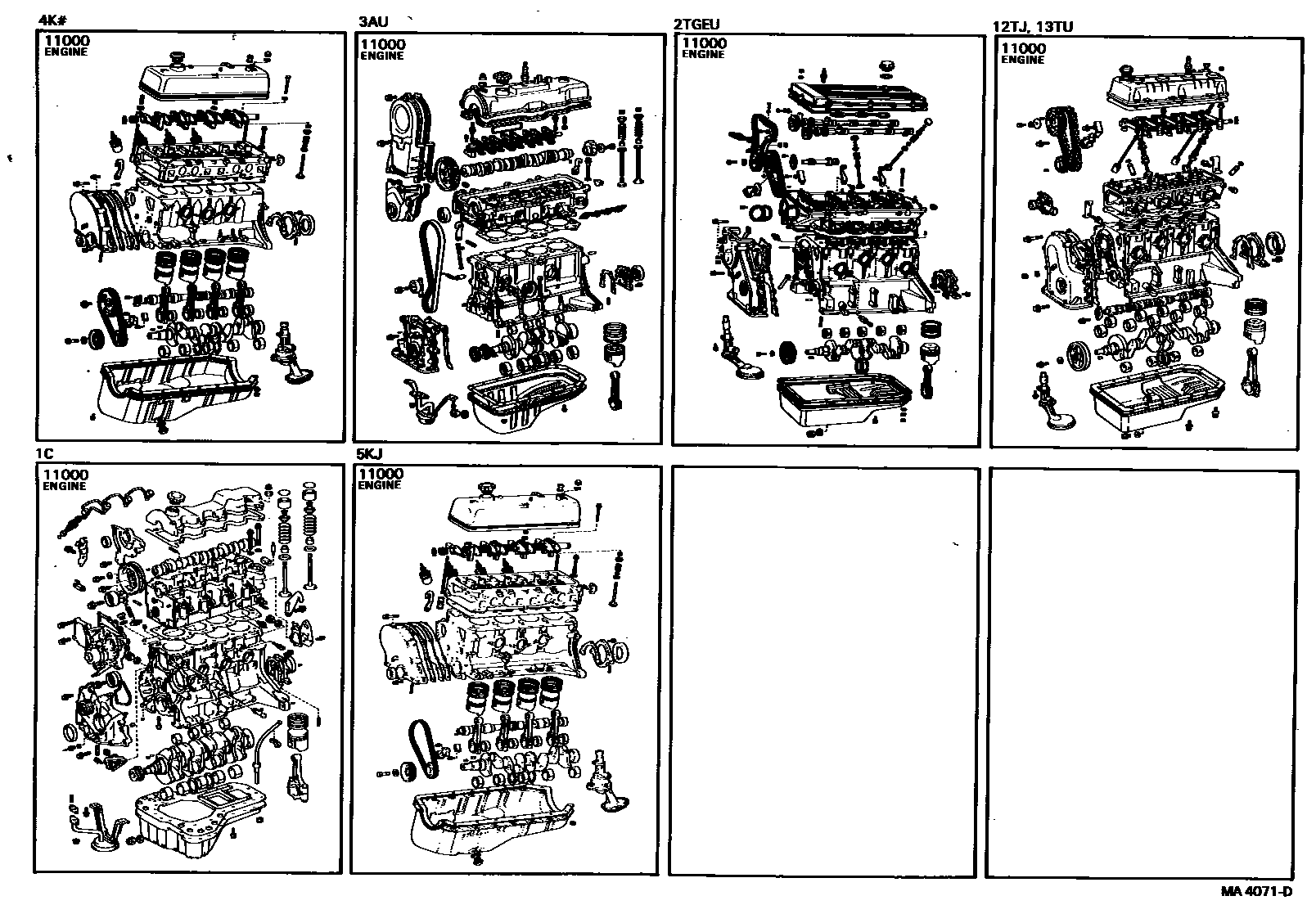

11000ENGINE ASSY, PARTIAL

main19000-13040i4KU..KE70197903-198108

main19000-13060i4KJ..KE71197908-198108

main19000-13120i4KU..KE70,73198108-198208

main19000-13121i4KU..KE70,73198208-198707

sub19000-13122

main19000-13130i4KJ..KE72198108-198707

sub19000-13131

main19000-13270i5KJ..KE74198308-198707

sub19000-13271

main19000-15020i3AU..AE70..MTM197903-198108

sub19000-15022

sub11355-15020

sub91611-60610

main19000-15050i3AU..AE70..3FC197910-198108

sub19000-15022

sub11355-15030

sub90950-01264

sub91611-60610

main19000-15052i3AU..AE70198108-198304

sub19000-15053

main19000-18060i13TU..TE70197908-198108

main19000-26252i2TGEU..TE71197903-198108

main19000-26263i2TGEU..TE71197903-198108

W/OK MONITOR

main19000-26310i2TGEU..TE71198108-198207

main19000-26311i2TGEU..TE71198207-198304

main19000-27100i12TJ..TE73197908-198108

main19000-27130i12TJ..TE74198108-198207

main19000-27131i12TJ..TE74198207-198308

main19000-64020i1C..CE7#198202-198303

sub16261-64011

main19000-64022i1C..CE7#198303-198307

main19000-64023i1C..CE7#198307-198508

main19000-64270i1C..CE7#..5F198508-198608

main19000-64271i1C..CE7#..5F198608-198707

main19000-64350i1C..CE71..4FC198508-198608

W/OIL COOLER PIPE

main19000-64351i1C..CE71..4FC198608-198707

W/OIL COOLER PIPE

1 parts on this diagram · 1 diagram in section
