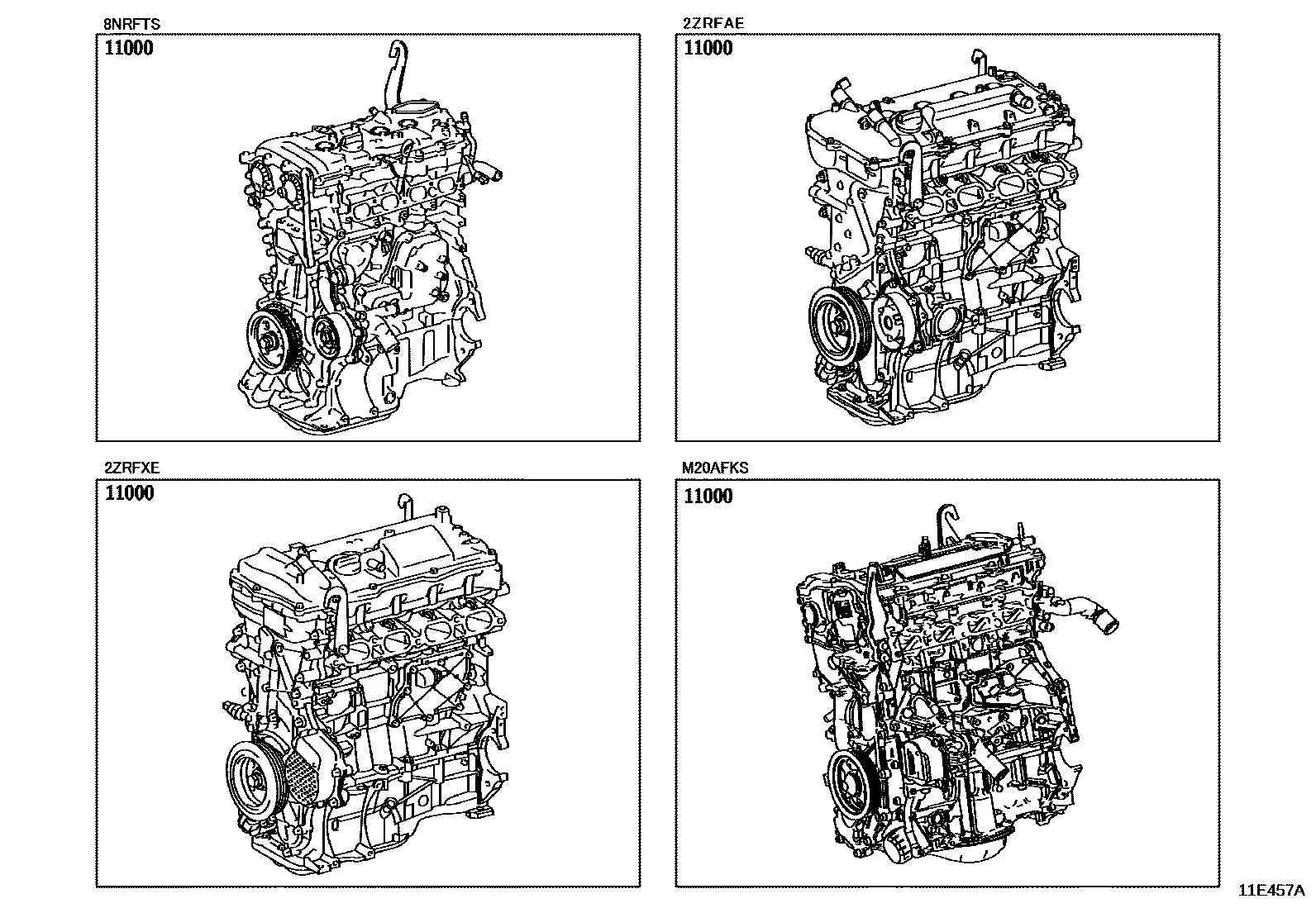

Toyota COROLLA — PARTIAL ENGINE ASSEMBLY

0001 1 0002 1

11000ENGINE ASSY, PARTIAL

main19000-15370iM15AFKS..MZEA17202210-202504

main19000-24310iM20AFKS..MZEA12202006

main19000-37790i2ZRFXE..ZWE211,214201908-202110

sub16278-37021

sub16281-37071

sub16295-37021

sub25601-37050

main19000-37870i2ZRFAE..ZRE212201908

main19000-37A80i2ZRFXE..ZWE215,219202210

main19000-37A90i2ZRFXE..ZWE211,214202110

sub19000-37B10

main19000-47470i8NRFTS..NRE210201908

1 parts on this diagram · 2 diagrams in section
