Toyota COROLLA — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

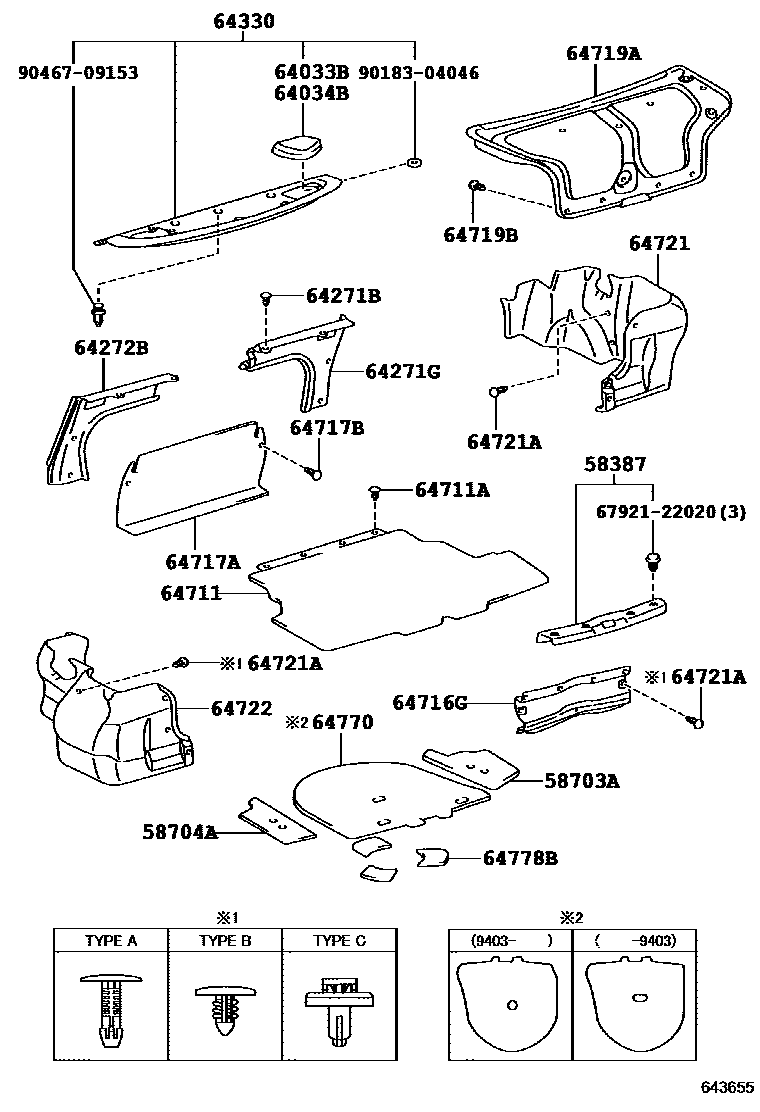

Parts diagram

58387PLATE, REAR FLOOR FINISH

main58387-12010-22i199305-199505

BLACK,TRIM1#,9#

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-12030i199106-199505

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-12030i199106-199505

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-12110-K0i199106-199305

main64033-12110-P0i199305-199505

main64033-12110-W3i199106-199305

main64033-12120-K0i199106-199108

main64033-12120-P0i199106-199108

main64033-12120-W3i199106-199108

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-12050-K0i199106-199305

main64034-12050-P0i199305-199505

main64034-12050-W3i199106-199305

main64034-12060-K0i199106-199108

main64034-12060-P0i199106-199108

main64034-12060-W3i199205-199305

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-05020-22×5i199405-199505

GRAPHITE,TRIM1#

main90467-05110-B0×5i199106-199308

SHADOW GRAY,TRIM1#

main90467-05110-C0×5i199308-199405

BLACK,TRIM1#

64271GBOARD, ROOM PARTITION, RH

main64271-12130-C0i199308-199505

BLACK,TRIM1#

main64271-12130-P0i199106-199308

SHADOW GRAY,TRIM1#

64272BBOARD, ROOM PARTITION, LH

main64272-12070-C0i199308-199505

BLACK,TRIM1#

main64272-12070-P0i199106-199308

SHADOW GRAY,TRIM1#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-1A430-J0i199106-199205

DARK BLUE,TRIM8#

main64330-1A430-J1i199205-199305

DARK BLUE,TRIM8#

main64330-1A430-K0i199106-199405

TAUPE,TRIM9#

main64330-1A430-P0i199405-199505

SHADOW GRAY,TRIM1#

main64330-1A440-J0i199106-199205

main64330-1A440-J1i199205-199305

main64330-1A440-K0i199106-199405

main64330-1A440-P0i199106-199505

main64330-1A470-J0i199106-199205

main64330-1A470-J1i199205-199305

main64330-1A470-K0i199305-199405

main64330-1A470-P0i199106-199305

main64330-1A500-J0i199106-199205

main64330-1A500-J1i199205-199305

main64330-1A500-K0i199106-199505

main64330-1A500-P0i199106-199505

main64330-1A510-J0i199106-199205

main64330-1A510-J1i199205-199305

main64330-1A510-K0i199106-199505

main64330-1A510-P0i199106-199305

main64330-1A670-J0i199106-199205

main64330-1A670-J1i199205-199305

main64330-1A670-K0i199305-199405

main64330-1A670-P0i199405-199505

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-12250-22i199205-199305

BLACK,TRIM1#,8#,9#

main64711-12290-C0i199205-199305

BLACK,TRIM1#,8#,9#

main64711-12300-C0i199106-199505

BLACK,TRIM1#

64711ACLIP(FOR LUGGAGE COMPARTMENT FLOOR MAT)

main90467-09156-C0×4i199106-199505

BLACK,TRIM1#

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-12130-C0i199106-199305

BLACK,TRIM1#,8#,9#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-12050-C0i199106-199305

BLACK,TRIM1#; BLACK,TRIM1#,8#,9#

main64717-12060-C0i199305-199505

BLACK,TRIM1#; BLACK,TRIM1#,9#

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-05027×2i199106-199209

main90467-05027-22×2i199209-199305

BLACK,TRIM1#,8#,9#

main90467-05096-22×2i199308-199505

BLACK,TRIM1#; BLACK,TRIM1#,9#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-12010-C0i199106-199305

BLACK,TRIM1#,8#,9#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-07072-11×16i199106-199205

BLACK,TRIM1#&040 ,183 ,3K4 ,6M3; BLACK,TRIM1#&040 ,183 ,3K4 ,6M3 ,8J7; BLACK,TRIM1#,8#,9#&040 ,183 ,3K4 ,3K5 ,3K9 ,6M3 ,8J7

main90467-07138×10i199402-199505

main90467-07146×16i199205-199211

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-12110-C0i199106-199305

BLACK,TRIM1#,8#,9#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-05096-01×4i199201-199208

main90467-05096-22×6i199308-199505

main90467-05105-C0×12i199106-199201

main90467-06146×4i199106-199202

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-12150-C0i199305-199505

BLACK,TRIM1#,9#

64770COVER ASSY, SPARE WHEEL

main64770-12160i199106-199403

main64770-12161i199403-199505

main64770-12170i199106-199403

main64770-12171i199403-199505

64778BPROTECTOR, SPARE WHEEL

main64778-12030×3i199106-199505

6792122020RETAINER, FRONT DOOR SCUFF PLATE

main67921-22020

9018304046

main90183-04046

9046709153

main90467-09153

24 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota COROLLA

This section contains 24 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota COROLLA. Key components include: PLATE, REAR FLOOR FINISH, COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH, COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH, GRILLE SUB-ASSY, REAR SPEAKER, RH, GRILLE SUB-ASSY, REAR SPEAKER, LH.
