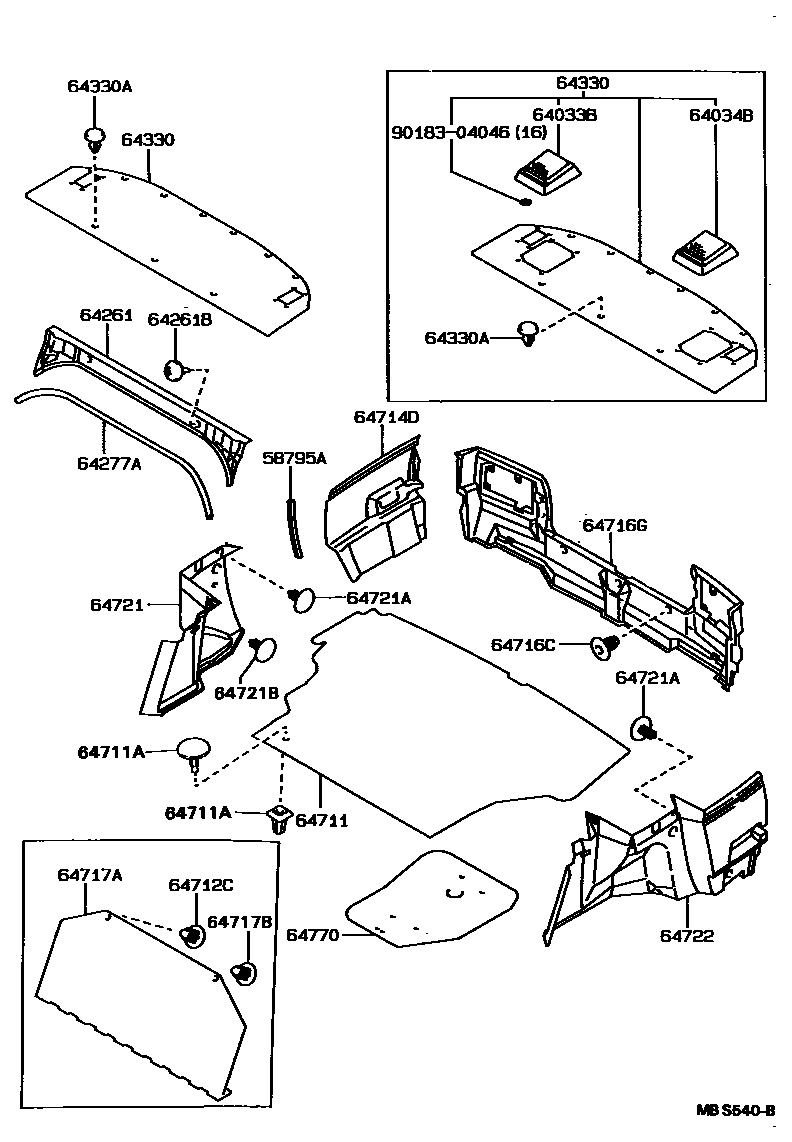

Toyota COROLLA — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58795ATRIM, JACK HOUSE OPENING
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
SHADOW GRAY,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
SHADOW GRAY,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
64261GARNISH, ROOM PARTITION
SHADOW GRAY,TRIM1#
64261BCUSHION(FOR ROOM PARTITION GARNISH)
64277AMOULDING, ROOM PARTITION TRIM
SHADOW GRAY,TRIM1#
64330PANEL ASSY, PACKAGE TRAY TRIM
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
GRAY,TRIM1#
DARK BEIGE,TRIM4#
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
MAROON,TRIM3#
DARK BEIGE,TRIM4#
LIGHT BLUE,TRIM8#
64711MAT, LUGGAGE COMPARTMENT FLOOR
LIGHT GRAY,TRIM1#; LIGHT GRAY,TRIM1#,4#
LIGHT GRAY,TRIM1#,3#; LIGHT GRAY,TRIM1#,3#,8#
LIGHT GRAY,TRIM1#
LIGHT GRAY,TRIM1#,4#; LIGHT GRAY,TRIM1#,8#
LIGHT GRAY,TRIM1#,3#,4#; LIGHT GRAY,TRIM1#,3#,8#
64711ACLIP(FOR LUGGAGE COMPARTMENT FLOOR MAT)
LIGHT GRAY,TRIM1#,MALE
FEMALE
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
main90467-10034-01×2iAE91,95,CE90,95,EE90..DX,TX; AE91..4F..XE; AE95,CE90,95,EE90..SE,XE;AE91..(3FC,4FC,5F)..(SE,XE)199008-199106
BLACK,TRIM1#,3#; BLACK,TRIM1#,3#,8#; BLACK,TRIM1#,8#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
LIGHT GRAY,TRIM1#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
GRAY,TRIM1#; GRAY,TRIM1#,3#,4#
LIGHT GRAY,TRIM1#; LIGHT GRAY,TRIM1#,3#,8#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
LIGHT GRAY,TRIM1#,3#,4#
LIGHT GRAY,TRIM1#,3#,4#; LIGHT GRAY,TRIM1#,3#,8#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
main64717-12020-03iAE91,CE90,EE90..DX,TX; AE91..4F..XE; CE90,EE90..SE,XE;AE91..(3FC,4FC,5F)..(SE,XE)198905-198908
GRAY,TRIM1#,3#; GRAY,TRIM1#,3#,8#; GRAY,TRIM1#,8#
main64717-12040-03iAE95,CE95..(SE,XE)..(DSL,EFI); AE95,CE95..TX..(DSL,EFI); AE95..(SE,XE)..CBR; AE95..TX..CBR198710-199106
LIGHT GRAY,TRIM1#,3#,4#; LIGHT GRAY,TRIM1#,3#,8#; LIGHT GRAY,TRIM1#,4#; LIGHT GRAY,TRIM1#,8#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
main90467-05020-13iAE95,CE95..SE..(DSL,EFI); AE95,CE95..TX..(DSL,EFI); AE95,CE95..XE..(DSL,EFI); AE95..SE..CBR; AE95..TX..CBR; AE95..XE..CBR198710-199106
GRAY,TRIM1#,3#,4#; GRAY,TRIM1#,3#,8#; GRAY,TRIM1#,4#; GRAY,TRIM1#,8#
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
LIGHT GRAY,TRIM1#,3#; LIGHT GRAY,TRIM1#,3#,8#
LIGHT GRAY,TRIM1#,3#,4#; LIGHT GRAY,TRIM1#,3#,8#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
GRAY,TRIM1#; GRAY,TRIM1#,3#,4#
main90467-07042-B0×2iAE91..4F..XE; AE95,CE90,95,EE90..SE,XE;AE91..(3FC,4FC,5F)..(SE,XE)198905-199106
LIGHT GRAY,TRIM1#,3#; LIGHT GRAY,TRIM1#,3#,8#
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
main90467-07104-03iAE91,95,CE90,95,EE90..TX; AE91..4F..XE; AE92..GT; AE95,CE90,95,EE90..SE,XE;AE91..(3FC,4FC,5F)..(SE,XE)198906-199106
LIGHT GRAY,TRIM1#; LIGHT GRAY,TRIM1#,3#; LIGHT GRAY,TRIM1#,3#,8#; LIGHT GRAY,TRIM1#,8#
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
LIGHT GRAY,TRIM1#,3#,4#
LIGHT GRAY,TRIM1#,3#,4#; LIGHT GRAY,TRIM1#,3#,8#
64770COVER ASSY, SPARE WHEEL
9018304046
main90183-04046
22 parts on this diagram · 1 diagram in section
PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota COROLLA
This section contains 22 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota COROLLA. Key components include: TRIM, JACK HOUSE OPENING, GRILLE SUB-ASSY, REAR SPEAKER, RH, GRILLE SUB-ASSY, REAR SPEAKER, LH, GARNISH, ROOM PARTITION, CUSHION(FOR ROOM PARTITION GARNISH).
