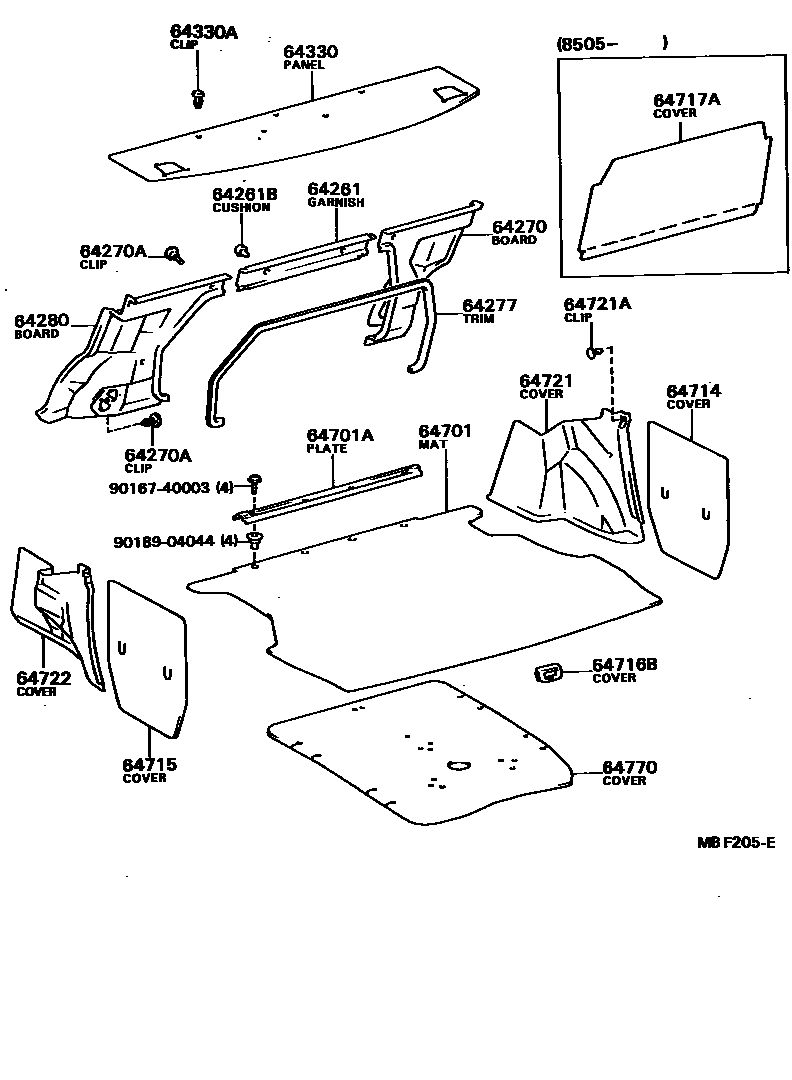

Toyota COROLLA — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
64261GARNISH, ROOM PARTITION
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64261BCUSHION(FOR ROOM PARTITION GARNISH)
64270BOARD ASSY, ROOM PARTITION, RH
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64270ACLIP(FOR ROOM PARTITION BOARD SETTING)
L=18.8,MAROON,RED/MAROON,TRIM3#
L=18.8,GRAY,GRAY,TRIM1#
L=18.8,BLUE,BLUE,TRIM8#
L=18.8,BROWN,BROWN,TRIM4#
L=10.0,MAROON,RED/MAROON,TRIM3#
L=10.0,GRAY,GRAY,TRIM1#
L=10.0,BLUE,BLUE,TRIM8#
L=10.0,BROWN,SEPIA BROWN,TRIM4#
64277TRIM, ROOM PARTITION LOWER
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64280BOARD ASSY, ROOM PARTITION, LH
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64330PANEL ASSY, PACKAGE TRAY TRIM
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
LIME; SALOON
SALOON
SALOON
64701ASET PLATE, LUGGAGE COMPARTMENT
64714COVER, LUGGAGE COMPARTMENT, RH
SALOON
64715COVER, LUGGAGE COMPARTMENT, LH
LIME; SALOON
64716BCOVER, LUGGAGE COMPARTMENT DOOR STRIKER
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
LIME; SALOON
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
BLACK
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
LIME; SALOON
64770COVER ASSY, SPARE WHEEL
W/COMPACT SPARE TIRE
W/O COMPACT SPARE TIRE
W/COMPACT SPARE TIRE
W/O COMPACT SPARE TIRE
9016740003
main90167-40003
9018904044
main90189-04044
20 parts on this diagram · 1 diagram in section
PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota COROLLA
This section contains 20 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota COROLLA. Key components include: GARNISH, ROOM PARTITION, CUSHION(FOR ROOM PARTITION GARNISH), BOARD ASSY, ROOM PARTITION, RH, CLIP(FOR ROOM PARTITION BOARD SETTING), TRIM, ROOM PARTITION LOWER.
