Toyota COROLLA — MUDGUARD & SPOILER

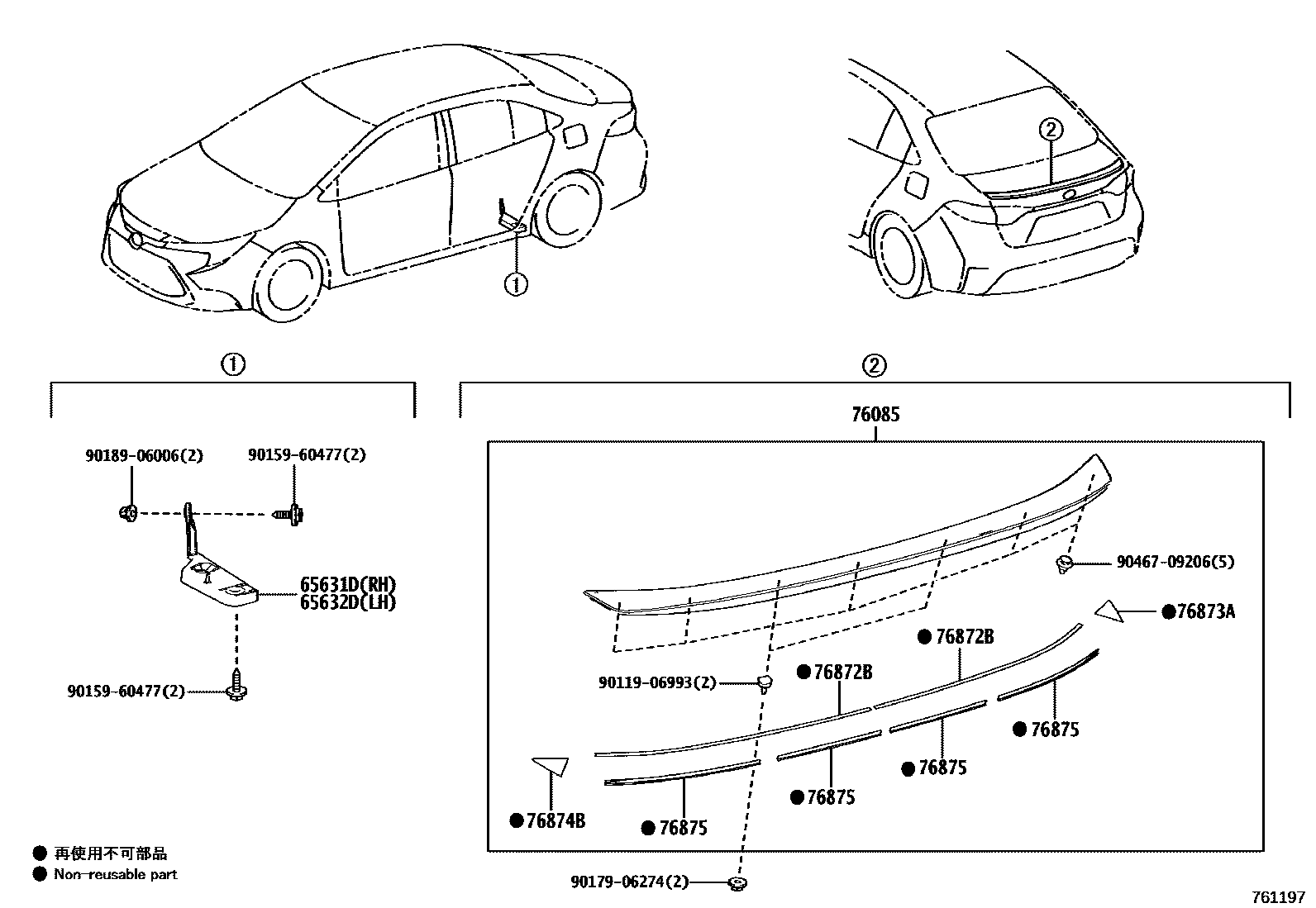

Parts diagram

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-12140i201908

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-12140i201908

76085SPOILER SUB-ASSY, REAR

main76085-12640i201908

main76085-12640-B0i202404-202504

main76085-12640-C2i202404

main76085-12610-A0i202111

main76085-12610-B0i202111

main76085-12610-C0i202111

76872BPROTECTOR, REAR SPOILER, CENTER

main76872-12280×2i201908-201912

76873APROTECTOR, REAR SPOILER, RH

main76873-12260i201908

76874BPROTECTOR, REAR SPOILER, LH

main76874-12260i201908

76875PROTECTOR, REAR SPOILER, NO.4

main76875-12170×4i201908

9011906993

main90119-06993

9015960477

main90159-60477

9017906274

main90179-06274

9018906006

main90189-06006

9046709206

main90467-09206

12 parts on this diagram · 2 diagrams in section

MUDGUARD & SPOILER for Toyota COROLLA

This section contains 12 genuine Toyota parts for the MUDGUARD & SPOILER system of the Toyota COROLLA. Key components include: PLATE, REAR WHEEL HOUSE, FRONT RH, PLATE, REAR WHEEL HOUSE, FRONT LH, SPOILER SUB-ASSY, REAR, PROTECTOR, REAR SPOILER, CENTER, PROTECTOR, REAR SPOILER, RH.
