Toyota COROLLA — MOUNTING

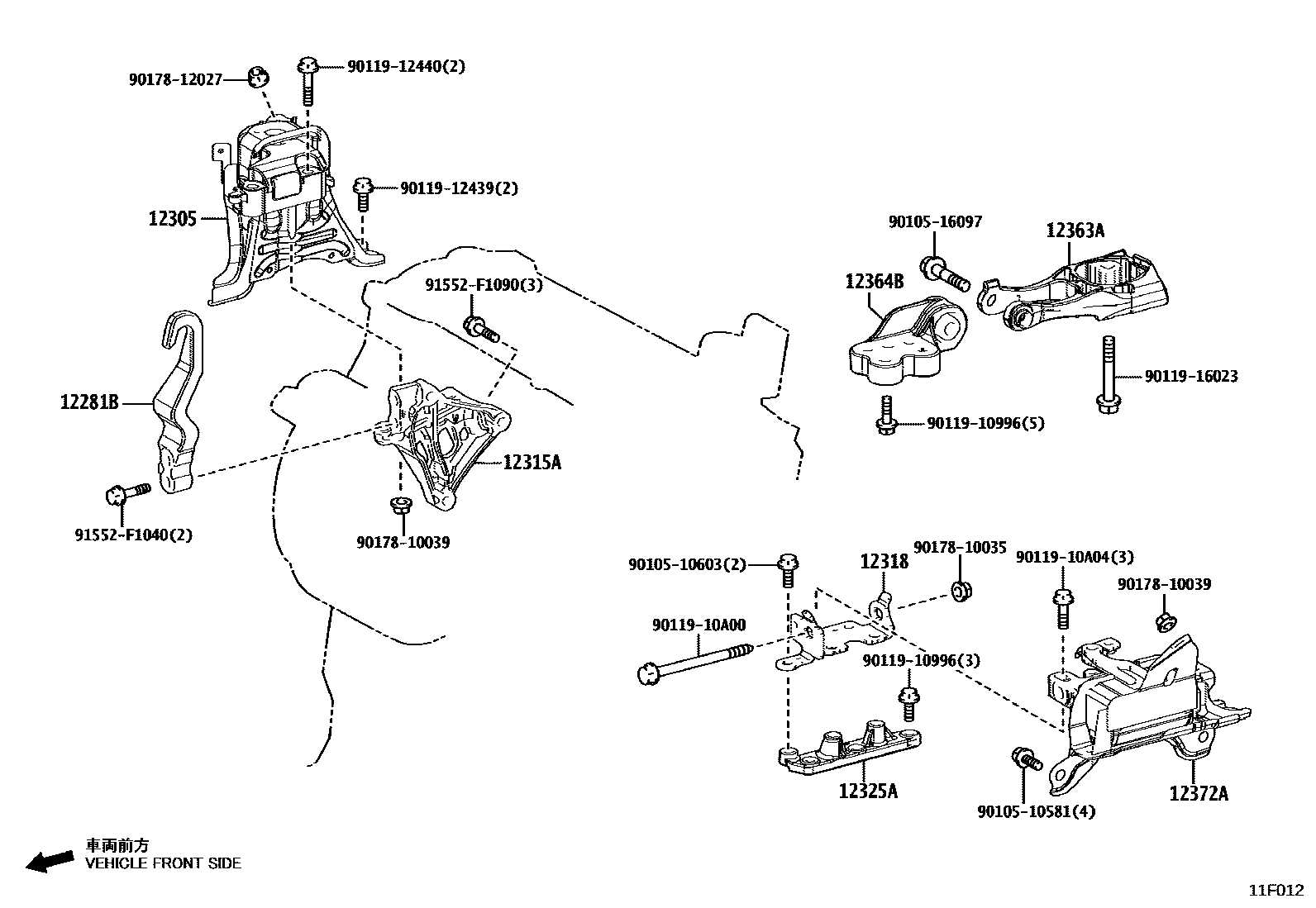

Parts diagram

12281BHANGER, ENGINE, NO.1

main12281-25030i202006-202504

main12281-47060i201908

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0Y151i201908

main12305-15120i202210-202504

main12305-24010i202006

main12305-37341i201908-202010

main12305-37342i202010

main12305-37380i202210

main12305-37390i201908

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-15090i202210-202504

main12315-24010i202006-202105

main12315-24011i202106

main12315-37060i201908

main12315-37070i202210

main12315-47081i201908

12318STAY, ENGINE MOUNTING, LH

main12318-24010i202006

main12318-47010i201908

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-24020i202006

main12325-47140i201908

main12325-47150i201908

12363AROD, ENGINE MOVING CONTROL

main12363-0Y150i201908

main12363-15070i202210-202504

main12363-24020i202006

main12363-37031i201908-202302

main12363-37032i202303

main12363-37060i202210-202306

main12363-37080i202307

main12363-47101i201908

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-15070i202210-202504

main12364-24020i202006

main12364-37040i201908

main12364-47060i201908

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0T620i201908

main12372-0Y182i201908

main12372-15301i202210-202504

main12372-24021i202006

main12372-37313i201908

main12372-37320i202210-202212

main12372-37321i202212

9010510581

main90105-10581

9010510603

main90105-10603

9010516097

main90105-16097

9011910996

main90119-10996

9011910A00

main90119-10A00

9011910A04

main90119-10A04

9011912439

main90119-12439

9011912440

main90119-12440

9011916023

main90119-16023

9017810035

main90178-10035

9017810039

main90178-10039

9017812027

main90178-12027

91552F1040

main91552-F1040

91552F1090

main91552-F1090

22 parts on this diagram · 6 diagrams in section

MOUNTING for Toyota COROLLA

This section contains 43 genuine Toyota parts for the MOUNTING system of the Toyota COROLLA. Key components include: HANGER, ENGINE, NO.1, INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), STAY, ENGINE MOUNTING, LH, INSULATOR SUB-ASSY, DRIVE SHAFT HEAT.
