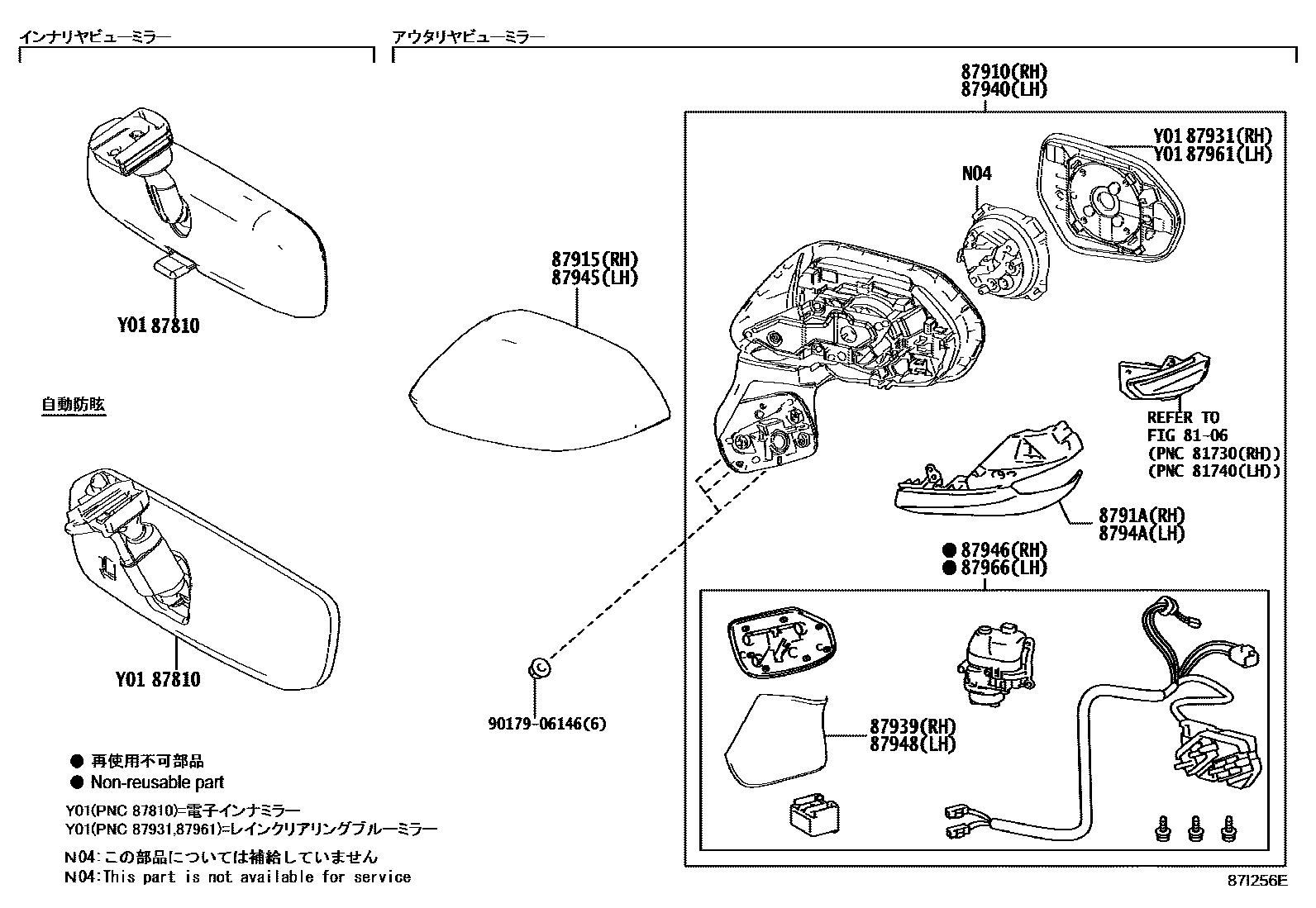

Toyota COROLLA — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915COVER, OUTER MIRROR, RH
WHITE PEARL CS.,070
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
CELESTITE GRAY ME.,1K3
DARK GRAY ME.,089 ,1L6 ,218 ,220 ,2PS ,2YD ,3T3
DARK GRAY ME.,040 ,070 ,089 ,1F7 ,1K3 ,209 ,220 ,2KR ,2KS ,2PU ,2TT ,2YK ,3T3 ,3U4,8W7
BLACK MC.,209 ,2KR ,2PU
BLACK MC.,209 ,2KR ,2KS ,2PU ,2TT ,2YK
ATTITUDE BLACK MC.,218 ,2PS ,2YD
ATTITUDE BLACK MC.,218
ATTITUDE BLACK MC.,040 ,089 ,1F7 ,218
ATTITUDE BLACK MC.,089 ,218 ,2PS ,2YD ,2YY
ATTITUDE BLACK MC.,089 ,1H5 ,218 ,2PS ,2YD
SCARLET ME.,3U4
RED M.M.,3R3
RED MC.,3T3
DK.BLUE M.M.,8W7
BLUE ME.,8X7
8791ACOVER, OUTER MIRROR, RH NO.2
87931OUTER MIRROR, RH
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945COVER, OUTER MIRROR, LH
WHITE PEARL CS.,070
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
CELESTITE GRAY ME.,1K3
DARK GRAY ME.,040 ,070 ,089 ,1F7 ,1K3 ,209 ,220 ,2KR ,2KS ,2PU ,2TT ,3T3 ,3U4 ,8W7
DARK GRAY ME.,089 ,1L6 ,218 ,220 ,2PS ,2YD ,3T3
BLACK MC.,209 ,2KR ,2PU
BLACK MC.,209 ,2KR ,2KS ,2PU ,2TT ,2YK
ATTITUDE BLACK MC.,089 ,218 ,2PS ,2YD ,2YY
ATTITUDE BLACK MC.,089 ,1H5 ,218 ,2PS ,2YD
ATTITUDE BLACK MC.,218
ATTITUDE BLACK MC.,218 ,2PS ,2YD
ATTITUDE BLACK MC.,040 ,089 ,1F7 ,218
SCARLET ME.,3U4
RED M.M.,3R3
RED MC.,3T3
DK.BLUE M.M.,8W7
BLUE ME.,8X7
87946RETRACTOR, OUTER MIRROR, RH
87948COVER, OUTER MIRROR HOLE, LH
8794ACOVER, OUTER MIRROR, LH NO.2
87961MIRROR OUTER, LH
87966RETRACTOR, OUTER MIRROR, LH
9017906146
main90179-06146
15 parts on this diagram · 1 diagram in section
MIRROR for Toyota COROLLA
This section contains 15 genuine Toyota parts for the MIRROR system of the Toyota COROLLA. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH, COVER, OUTER MIRROR, RH NO.2.
