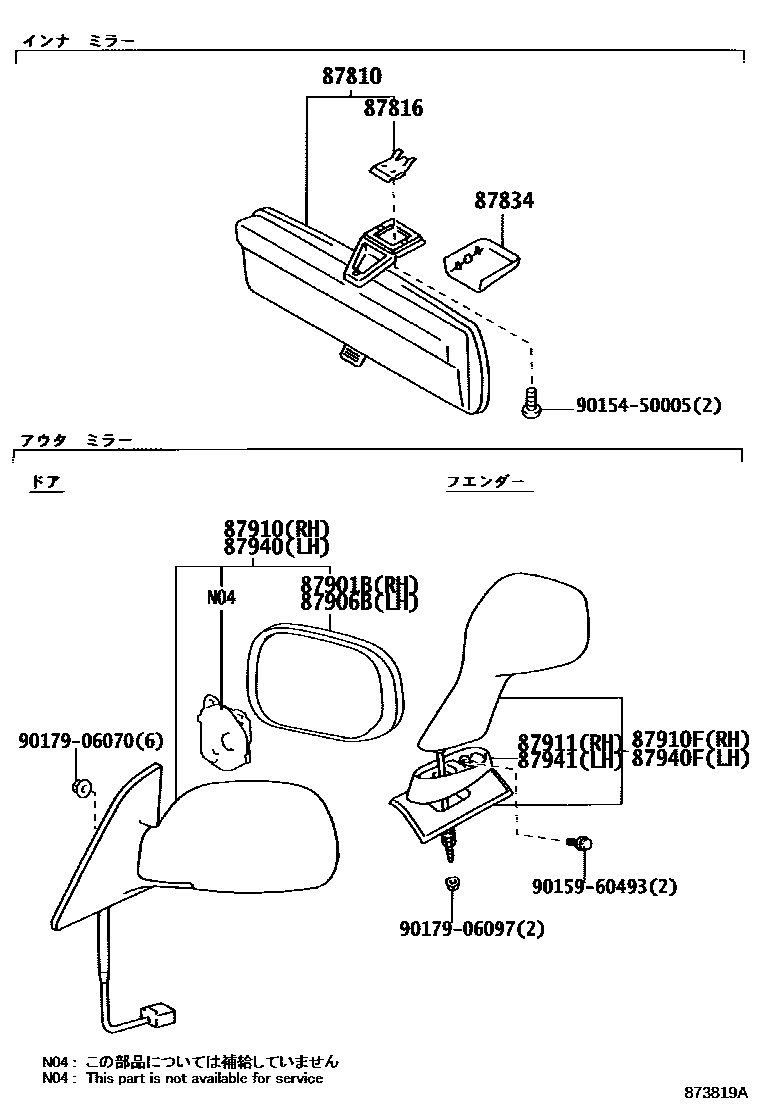

Toyota COROLLA — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
IVORY,TRIM4#
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
LT.GRAY,TRIM11
main87810-12270-B1iCE11#,EE111..(4FC,5F)..(SESAL,XESAL); EE111..3FC..XESAL;AE110,114..SESAL,XESAL199804-200008
LT.GRAY,TRIM1#
MD.CHARCOAL,TRIM1#
87816SPRING, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
LT.GRAY,TRIM11
MD.CHARCOAL,TRIM1#
IVORY,TRIM4#
main87834-12030-B4iAE110,114,EE111..(3FC,4FC,5F)..(SESAL,XESAL); CE11#,EE111..(4F,4FC,5F)..(DX,LX); CE11#,EE111..(4F,4FC,5F)..(SESAL,XESAL)199704-199804
main87834-12030-B6iAE110,114,EE111..(3FC,4FC,5F)..(SESAL,XESAL); CE11#,EE111..(4F,4FC,5F)..(SESAL,XESAL)199704-199804
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
SUPER WHITE 2,040
WARM GRAY PEARL ME.,1A5
BL.GRAY ME,182
SILVER ME,199
RED MM,3K4
DK GREEN MICA,6M1
MD.GREEN M.M.,6P0
DK.BLUE M.M.,8L2
SUPER WHITE 2,040
WARM GRAY PEARL ME.,1A5
BL.GRAY ME,182
SILVER ME,199
RED MM,3K4
DK GREEN MICA,6M1
MD.GREEN M.M.,6P0
DK.BLUE M.M.,8L2
SUPER WHITE 2,040
DK.GRAY ME.,1B4
CRYSTAL SILVER PEARL,1C1
DK.GREEN M.M.,6P2
DK.BLUE M.M.,8L2
SUPER WHITE 2,040
SILVER ME,199
WARM GRAY PEARL ME.,1A5
DK.GRAY ME.,1B4
CRYSTAL SILVER PEARL,1C1
BLACK ME,205
RED MM,3K4
DK.GREEN M.M.,6P2
DK.BLUE M.M.,8L2
SUPER WHITE 2,040
SILVER ME,199
WARM GRAY PEARL ME.,1A5
DK.GRAY ME.,1B4
RED MM,3K4
DK.GREEN M.M.,6P2
DK.BLUE M.M.,8L2
87910FMIRROR ASSY, FENDER, RH
87911GASKET, OUTER REAR VIEW MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
WARM GRAY PEARL ME.,1A5
DK.GRAY ME.,1B4
CRYSTAL SILVER PEARL,1C1
DK.GREEN M.M.,6P2
DK.BLUE M.M.,8L2
SUPER WHITE 2,040
WARM GRAY PEARL ME.,1A5
BL.GRAY ME,182
SILVER ME,199
RED MM,3K4
DK GREEN MICA,6M1
MD.GREEN M.M.,6P0
DK.BLUE M.M.,8L2
SUPER WHITE 2,040
WARM GRAY PEARL ME.,1A5
BL.GRAY ME,182
SILVER ME,199
RED MM,3K4
DK GREEN MICA,6M1
MD.GREEN M.M.,6P0
DK.BLUE M.M.,8L2
SUPER WHITE 2,040
SILVER ME,199
WARM GRAY PEARL ME.,1A5
DK.GRAY ME.,1B4
CRYSTAL SILVER PEARL,1C1
BLACK ME,205
RED MM,3K4
DK.GREEN M.M.,6P2
DK.BLUE M.M.,8L2
SUPER WHITE 2,040
SILVER ME,199
WARM GRAY PEARL ME.,1A5
DK.GRAY ME.,1B4
RED MM,3K4
DK.GREEN M.M.,6P2
DK.BLUE M.M.,8L2
87940FMIRROR ASSY, FENDER, LH
87941GASKET, OUTER REAR VIEW MIRROR, LH
9015450005
main90154-50005
9015960493
main90159-60493
9017906070
main90179-06070
9017906097
main90179-06097
15 parts on this diagram · 1 diagram in section
MIRROR for Toyota COROLLA
This section contains 15 genuine Toyota parts for the MIRROR system of the Toyota COROLLA. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
