Toyota COROLLA — MIRROR

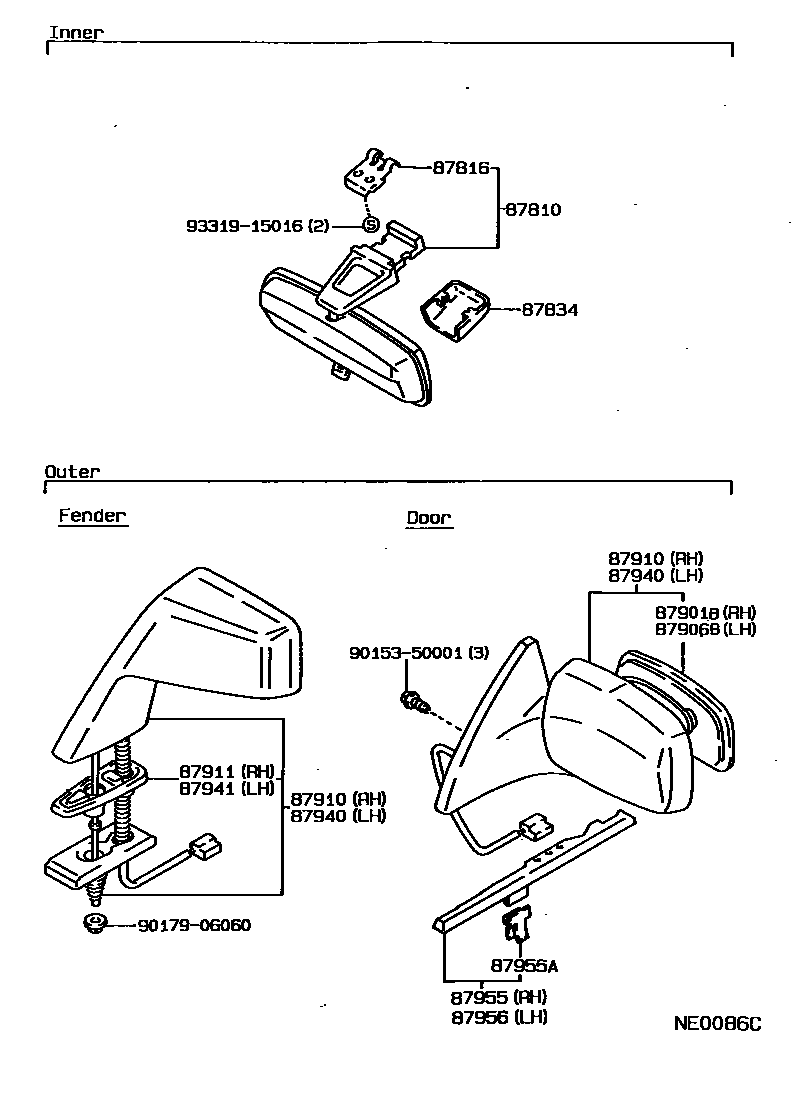

87810MIRROR ASSY, INNER REAR VIEW

main87810-12230-03iAE91,95,CE9#,EE9#..CTD,DX,FXD,L,STD,TX198705-199106

SHADOW GRAY,TRIM1#

sub87810-12250

sub87810-12280

main87810-12230-04iAE91,95,CE9#,EE9#..CTD,DX,L,TX198908-199109

DARK BLUE,TRIM8#

sub87810-12250

sub87810-12280

main87810-12230-05iCE96,97,EE96,97,98..DX198905-198908

DARK BEIGE,TRIM4#

sub87810-12250

sub87810-12280

main87810-12230-P0iCE9#,EE9#..CTD,DX,L,STD199106-199109

SHADOW GRAY,TRIM1#

sub87810-12250

sub87810-12280

main87810-12240-02iAE91,95,CE90,95,EE90..SE,XE198705-199106

MAROON,TRIM3#

sub87810-12260

sub87810-12270

main87810-12240-03iAE9#,CE9#,EE9#..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL,GT,LT,SE,XE198705-199106

SHADOW GRAY,TRIM1#

sub87810-12260

sub87810-12270

main87810-12240-04iAE92,95,CE90,EE90..FXGTV,SE,XE;AE91..(3D,4D)..(3FC,4FC,5F)..(FXV,FXVS,FXZS,SE,XE)198905-198908

DARK BLUE,TRIM8#

sub87810-12260

sub87810-12270

main87810-12240-05iCE96,97,EE96,97,98..GL198905-198908

DARK BEIGE,TRIM4#

sub87810-12260

sub87810-12270

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iAE9#,CE9#,EE9#198705-199108

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-12030-03iAE9#,CE9#,EE9#199106-199205

LIGHT GRAY,TRIM1#

main87834-12030-04iAE91..3FC..XE;AE92,95,CE9#,EE9#..CTD,DX,FXGTV,GL,L,SE,TX,XE;AE91..(3D,4D,WG)..(DX,FXV,FXVS,FXZS,G,LT,SE,TX)198908-199106

LIGHT BLUE,TRIM8#

main87834-12030-05iCE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE198705-198905

LIGHT BEIGE,TRIM4#

main87834-12030-12iAE91,95,CE90,95,EE90..SE,XE198705-199106

MAROON,TRIM3#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-1A210iEE98..4F;EE98..3FC..DX;AE9#,CE9#,EE90,96,97198705-198908

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-1A290iEE98..4F;EE98..3FC..DX;AE9#,CE9#,EE90,96,97198705-198908

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-1A160iCE97,EE97..DX;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD198705-199109

main87910-1A180iAE91..CBR198905-198908

main87910-1A200iAE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXL,GL,TX,XE)198705-198905

main87910-1A210iAE91,EE90..TX198705-198905

main87910-1A211iAE91..G199010-199109

main87910-1A220-02iCE90..SE198705-198905

main87910-1A220-03iCE90..SE198705-198905

main87910-1A220-04iAE91,95,CE90,95..SE..(DSL,EFI)198905-199009

DARK BLUE MICA METAL,8E9

main87910-1A220-05iAE91,95,CE90,95..SE..(DSL,EFI)198908-199009

main87910-1A220-06iAE91..SE..EFI198805-198905

DK GRAYISH BROWN M,25E

main87910-1A220-07iAE91..SE..EFIS198905-199009

GRAYISH GREEN METALL,6K6

main87910-1A220-08iCE90..SE198705-198905

main87910-1A220-12iCE90..SE198708-198905

main87910-1A220-22iAE91,95,CE90..SE198905-198908

DARK ROSE METALLIC,3J1

main87910-1A221-03iAE91,95,CE90,95..SE..(DSL,EFI)199009-199106

main87910-1A221-04iAE91,95,CE90,95..SE..(DSL,EFI)199009-199106

DARK BLUE MICA M.,8E9

main87910-1A221-05iAE91,95,CE90,95..SE..(DSL,EFI)199009-199106

LIGHT BEIGE METALLIC,4K1

main87910-1A221-07iAE91,95,CE90,95..SE..(DSL,EFI)199009-199106

main87910-1A221-08iAE91,95,CE90,95..SE..(DSL,EFI)199009-199106

main87910-1A221-12iAE91,95,CE90,95..SE..(DSL,EFI)199009-199106

main87910-1A480iEE90..FXD198705-198905

main87910-1A490iAE91,92..(3D,5D)..(4FC,5F)198905-199205

main87910-1A500iEE90..FXD198705-198905

main87910-1A510iAE91,92..3D..(4FC,5F)198705-198905

main87910-1A590-02iAE91..5D..EFI;AE92,95,CE90,EE90..GT,SE,XE;AE91..(4D,5D)..(FXG,SE,XE)..CBR198805-198905

SUPER RED,3E5

main87910-1A590-03iAE91..5D..EFI;AE92,95,CE90,EE90..GT,SE,XE;AE91..(4D,5D)..(FXG,SE,XE)..CBR198805-198905

GRAY METALLIC,168

main87910-1A590-04iAE91..5D..(FXG,FXZI)198705-198905

DARK BLUE METALLIC,27E

main87910-1A590-06iAE91,95,CE90..SE..(CBR,DSL)198705-198905

DARK GRAYISH BROWN-M,25E

main87910-1A590-08iAE9#,CE90..(4D,5D,WG)..(FXG,FXZI,G,GT,SE)198705-198805

SUPER WHITE,040

main87910-1A590-11iAE91..5D..(FXG,FXZS)198905-199009

BLACK METALLIC,205

main87910-1A590-12iAE91,95,CE90,EE90..(G,SE,XE)..(CBR,DSL)198805-198905

RED MICA,3H4

main87910-1A590-14iAE91..(G,SE,XE)..EFI;AE92,95,CE90,95,EE90..GT,SE,XE198905-199009

DARK BLUE MICA METAL,8E9

main87910-1A590-15iCE90,95,EE90..SE,XE198905-199009

LIGHT BEIGE METALLIC,4K1

main87910-1A590-22iAE91,95,CE90,95,EE90..(SE,XE)..(CBR,DSL,EFI)198908-199004

DARK ROSE METALLIC,3J1

main87910-1A590-24iAE91..G..EFI198905-199009

MIDIUM BLUE METALLIC,24M

main87910-1A590-27iAE91..5D..(FXG,FXZS)198905-199009

GRAYISH GREEN METALL,6K6

main87910-1A591-02iAE91..5D..(FXG,FXZS)199009-199205

SUPER RED,3E5

main87910-1A591-03iAE91..G199009-199106

GRAY METALLIC,168 ,23E

main87910-1A591-08iAE91..5D..EFIS;AE9#,CE90,95,EE90..(FXG,G,GT,SE,XE)..(CBR,DSL,EFI)199009-199205

SUPER WHITE,040

main87910-1A591-11iAE91..5D..(FXG,FXZS)199009-199205

BLACK METALLIC,205

main87910-1A591-12iAE9#,CE90,95,EE90..(G,GT,SE,XE)..(CBR,DSL,EFI)199009-199108

RED MICA,3H4

main87910-1A591-14iAE9#,CE90,95,EE90..(G,GT,SE,XE)..(CBR,DSL,EFI)199009-199108

DARK BLUE MICA-M,8E9

main87910-1A591-15iAE91,95,CE90,95,EE90..(SE,XE)..(CBR,DSL,EFI)199009-199106

LIGHT BEIGE METALLIC,4K1

main87910-1A591-24iAE91..G199009-199109

MIDIUM BLUE METALLIC,24M

main87910-1A591-27iAE91..5D..EFIS;AE9#,CE90,95,EE90..(FXG,GT,SE,XE)..(CBR,DSL,EFI)199009-199205

GRAYISH GREEN M.,6K6

main87910-1A600iAE91,95,CE90..SE198705-198905

main87910-1A670-02iAE91,92..3D..(4FC,5F)198705-199010

SUPER RED,3E5

main87910-1A670-03iAE91,92..3D..(4FC,5F)198705-198905

GRAY METALLIC,168

main87910-1A670-04iAE91,92..3D..(4FC,5F)198705-198905

DARK BLUE METALLIC,27E

main87910-1A670-07iAE91,92..3D198905-199010

GRAYISH GREEN METALL,6K6

main87910-1A670-08iAE91,92..3D..(4FC,5F)198705-199010

SUPER WHITE,040

main87910-1A670-11iAE92..FXGT198901-198902

main87910-1A670-14iAE91,92..3D198905-199010

DARK BLUE MICA METAL,8E9

main87910-1A670-21iAE91,92..3D198905-199010

BLACK METALLIC,205

main87910-1A671-01iAE91,92..3D199010-199205

BLACK METALLIC,BLACK METALLIC,205

main87910-1A671-02iAE91,92..3D199010-199205

SUPER RED,SUPER RED 2,3E5

main87910-1A671-04iAE91,92..3D199010-199108

DARK BLUE MICA METAL,DARK BLUE MICA META,8E9

main87910-1A671-07iAE91,92..3D199010-199205

GRAYISH GREEN METALL,GRAYISH GREEN METALL,6K6

main87910-1A671-08iAE91,92..3D199010-199205

SUPER WHITE,SUPER WHITE,040

main87910-1A671-J0iAE9#..3D199108-199205

DARK BLUE MICA M.,DARK BLUE MICA M.,8J7

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-12130iAE92,95,CE90..GT,XE;AE91,EE90..(SE,TX,XE)..CBR198805-198808

main87911-12200iAE9#,CE90..G,GT,SE198808-198905

main87911-12220iAE91,EE90..FXD,FXL198705-199205

main87911-12230iAE91,92..(3D,5D)..(4FC,5F)198705-199205

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-1A240iCE97,EE97..DX;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD198705-199109

main87940-1A260iCE90..SE;AE9#..(4FC,5F)..(G,GT,SE,XE)198705-198805

main87940-1A280iAE91,95,CE90,95,97,EE90,97..FXL,GL,L,LT,TX198905-199205

main87940-1A290iAE91,EE90..TX198705-198905

main87940-1A291iAE91..G199010-199109

main87940-1A300-02iAE91..SE..EFI198805-198905

SUPER RED,3E5

main87940-1A300-03iAE91,95,CE90,95..SE..(DSL,EFI)198905-199009

main87940-1A300-04iAE91,95,CE90,95..SE..(DSL,EFI)198905-199009

DARK BLUE MICA METAL,8E9

main87940-1A300-05iAE91,95,CE90,95..SE..(DSL,EFI)198908-199009

LIGHT BEIGE METALLIC,4K1

main87940-1A300-06iCE90..SE198705-198905

main87940-1A300-07iAE91,95,CE90,95..SE..(DSL,EFI)198908-199009

main87940-1A300-08iAE91,95,CE90,95..SE..(DSL,EFI)198905-199009

main87940-1A300-12iCE90..SE198708-198905

main87940-1A300-22iAE91,95,CE90,95..SE..(DSL,EFI)198908-199004

DARK ROSE METALLIC,3J1

main87940-1A301-03iAE91,95,CE90,95..SE..(DSL,EFI)199009-199106

main87940-1A301-04iAE91,95,CE90,95..SE..(DSL,EFI)199009-199106

DARK BLUE MICA M.,8E9

main87940-1A301-05iAE91,95,CE90,95..SE..(DSL,EFI)199009-199106

LIGHT BEIGE METALLIC,4K1

main87940-1A301-07iAE91,95,CE90,95..SE..(DSL,EFI)199009-199106

main87940-1A301-08iAE91,95,CE90,95..SE..(DSL,EFI)199009-199106

main87940-1A301-12iAE91,95,CE90,95..SE..(DSL,EFI)199009-199106

main87940-1A480iAE91,EE90..FXL198705-199205

main87940-1A490iAE91,92..(3D,5D)..(4FC,5F)198705-198905

main87940-1A500iEE90..FXD198705-198905

main87940-1A510iAE91,92..3D..(4FC,5F)198705-198905

main87940-1A670-02iAE91,92..3D..(4FC,5F)198705-199010

SUPER RED,3E5

main87940-1A670-03iAE91,92..3D..(4FC,5F)198705-198905

GRAY METALLIC,168

main87940-1A670-04iAE91,92..3D..(4FC,5F)198705-198905

DARK BLUE METALLIC,27E

main87940-1A670-07iAE91,92..3D198905-199010

GRAYISH GREEN METALL,6K6

main87940-1A670-08iAE91,92..3D..(4FC,5F)198705-199010

SUPER WHITE,040

main87940-1A670-11iAE92..FXGT198901-198902

main87940-1A670-14iAE91,92..3D198905-199010

DARK BLUE MICA METAL,8E9

main87940-1A670-21iAE91,92..3D198905-199010

BLACK METALLIC,205

main87940-1A671-01iAE91,92..3D199010-199205

BLACK METALLIC,BLACK METALLIC,205

main87940-1A671-02iAE91,92..3D199010-199205

SUPER RED,SUPER RED 2,3E5

main87940-1A671-04iAE91,92..3D199010-199108

DARK BLUE MICA METAL,DARK BLUE MICA METAL,8E9

main87940-1A671-07iAE91,92..3D199010-199205

GRAYISH GREEN METALL,GRAYISH GREEN METALL,6K6

main87940-1A671-08iAE91,92..3D199010-199205

SUPER WHITE,SUPER WHITE,040

main87940-1A671-J0iAE9#..3D199108-199205

DARK BLUE MICA METAL,DARK BLUE MICA M.,8J7

main87940-1A680-02iAE91..5D..EFI;AE92,95,CE90,EE90..GT,SE,XE;AE91..(4D,5D)..(FXG,SE,XE)..CBR198805-198905

SUPER RED,3E5

main87940-1A680-03iAE91..G198905-199009

GRAY METALLIC,168 ,23E

main87940-1A680-04iAE91..5D..(FXG,FXZI)198705-198905

DARK BLUE METALLIC,27E

main87940-1A680-06iAE91,CE90,EE90..XE198805-198905

main87940-1A680-08iAE91..5D..EFIS;AE9#,CE90,95,EE90..(FXG,G,GT,SE,XE)..(CBR,DSL,EFI)198905-199009

SUPER WHITE,040

main87940-1A680-11iAE91..5D..(FXG,FXZS)198908-199009

BLACK METALLIC,205

main87940-1A680-12iAE9#,CE90,95,EE90..(G,GT,SE,XE)..(CBR,DSL,EFI)198905-199009

RED MICA,3H4

main87940-1A680-14iAE91..(G,SE,XE)..EFI;AE92,95,CE90,95,EE90..GT,SE,XE198905-199009

DARK BLUE MICA METAL,8E9

main87940-1A680-15iAE91,95,CE90,95,EE90..(SE,XE)..(CBR,DSL,EFI)198908-199009

LIGHT BEIGE METALLIC,4K1

main87940-1A680-22iAE91,95,CE90,95,EE90..(SE,XE)..(CBR,DSL,EFI)198908-199004

DARK ROSE METALLIC,3J1

main87940-1A680-24iAE91..G198908-199009

MIDIUM BLUE METALLIC,24M

main87940-1A680-27iAE91..5D..(FXG,FXZS)198905-199009

GRAYISH GREEN METALL,6K6

main87940-1A681-02iAE91..5D..(FXG,FXZS)199009-199205

SUPER RED,3E5

main87940-1A681-03iAE91..G199009-199106

GRAY METALLIC,168 ,23E

main87940-1A681-08iAE91..5D..EFIS;AE9#,CE90,95,EE90..(FXG,G,GT,SE,XE)..(CBR,DSL,EFI)199009-199205

SUPER WHITE,040

main87940-1A681-11iAE91..5D..(FXG,FXZS)199009-199205

BLACK METALLIC,205

main87940-1A681-12iAE9#,CE90,95,EE90..(G,GT,SE,XE)..(CBR,DSL,EFI)199009-199108

RED MICA,3H4

main87940-1A681-14iAE9#,CE90,95,EE90..(G,GT,SE,XE)..(CBR,DSL,EFI)199009-199108

DARK BLUE MICA M.,8E9

main87940-1A681-15iAE91,95,CE90,95,EE90..(SE,XE)..(CBR,DSL,EFI)199009-199106

LIGHT BEIGE METALLIC,4K1

main87940-1A681-24iAE91..G199009-199109

MIDIUM BLUE METALLIC,24M

main87940-1A681-27iAE91..5D..EFIS;AE9#,CE90,95,EE90..(FXG,GT,SE,XE)..(CBR,DSL,EFI)199009-199205

GRAYIS GREEN M.,6K6

main87940-1A730iAE91,95,CE90..SE198705-198905

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-12110iAE95,CE90..XE;AE91,EE90..TX,XE198808-198905

main87941-12180iAE91,EE90..TX198705-198905

main87941-12220iAE91,EE90..FXD,FXL198705-199205

main87941-12230iAE91,92..(3D,5D)..(4FC,5F)198705-199205

87955GASKET, OUTER REAR VIEW MIRROR BASE, LOWER RH

main87955-12040iAE91,CE90,96,97,EE9#..CTD,DX,GL,L,STD198705-199108

main87955-12050iEE90..FXD198705-198905

87955ACLIP, DOOR GLASS WEATHERSTRIP

main68211-12160×2iAE91,CE90,96,97,EE9#..CTD,DX,FXD,GL,L,STD198705-199108

87956GASKET, OUTER REAR VIEW MIRROR BASE, LOWER LH

main87956-12040iAE91,CE90,96,97,EE9#..CTD,DX,GL,L,STD198705-199108

main87956-12050iEE90..FXD198705-198905

9015350001

main90153-50001

9017906060

main90179-06060

9331915016

main93319-15016

15 parts on this diagram · 1 diagram in section
