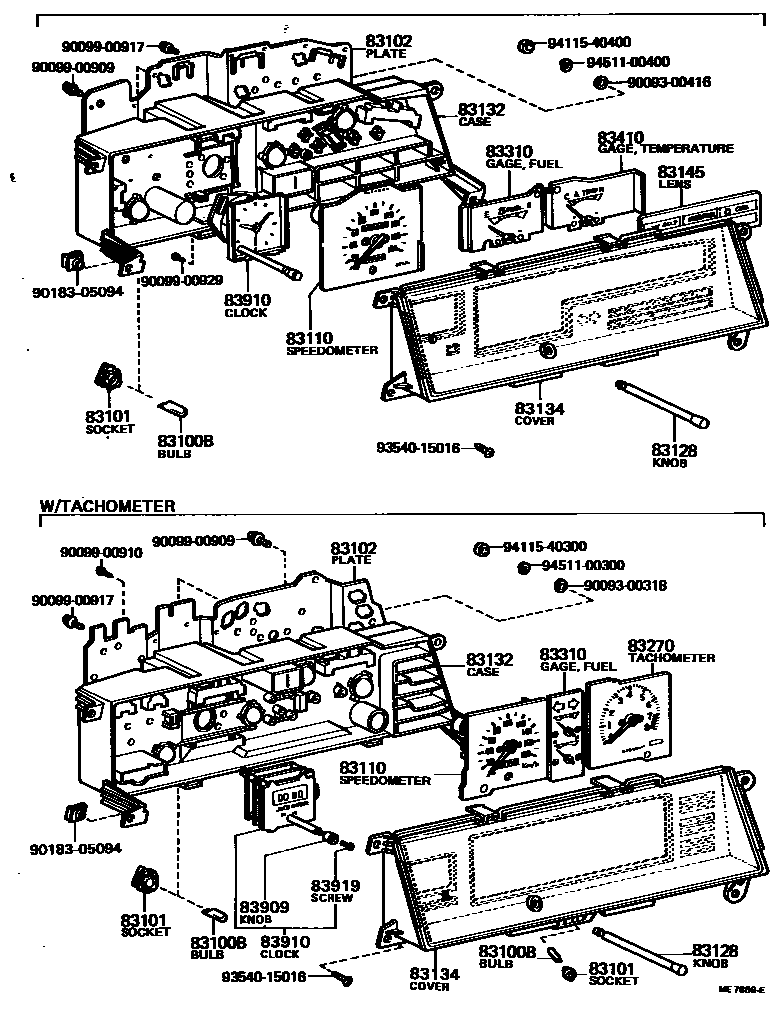

Toyota COROLLA — METER

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018×6iTE71;AE70,TE70..(CP,SED)..(SE,SR)197903-198108

main99132-12034×14iAE70,CE7#,KE7#,TE7#197903-198707

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×14iAE70,CE70,71,KE7#,TE7#197903-198707

12V 3.4W

main83101-14040×6iAE70,CE70,KE70,TE71..GT,LVN,LVS,SE,SR,SX198108-198304

12V 1.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-12480iAE70,TE70,71..(GT,SE)..4D197903-198108

main83247-12490iAE70,KE7#,TE70,73..(SED,V)..(CTD,DX,GL)197903-198108

W/CLOCK

main83247-12500iAE70,KE70..(SE,SL)..2D197903-197906

W/TACHOMETER

main83247-12501iAE70,KE70,TE70..(SE,SL)..2D197906-198108

W/TACHOMETER

main83247-12510iAE70,TE71..(GT,LVN,SR)..2D197903-197906

main83247-12512iAE70,TE70,71..(GT,LVN,SR)..2D197906-198108

main83247-12520iKE70..(CP,HT,LB)..DX197903-198108

main83247-12530iKE70..(CP,HT,LB)..DX197903-198108

W/CLOCK

main83247-12540iAE70,KE70,TE70..(CP,HT,LB)..(GL,SL)197903-198108

main83247-12550iAE70,KE7#,TE73..(SED,V)..(CTD,DX,STD)197903-198108

main83247-12770iAE70,KE7#,TE74..(SED,V,WG)..(CTD,DX,GL)198108-198308

W/CLOCK

main83247-12790iCE71198202-198308

W/CLOCK

main83247-12810iAE70,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD)198108-198308

main83247-12830iCE71..DX198202-198308

main83247-13020iKE7#..DX,STD198308-198310

YAZAKI

main83247-13040iKE7#..DX,STD198310-198707

YAZAKI

main83247-1A150iAE70,KE70,TE71..(GT,SE,SX)..4D198108-198304

main83247-1A190iCE70..SE198202-198304

main83247-1A210iAE70,KE70..(SE,SX)..2D198108-198304

main83247-1A230iAE70,TE71..(GT,LVN,LVS,SR)..2D198108-198304

main83247-1A330iAE70,KE70..(HT,LB)..(DX,GL)198108-198304

main83247-1E450iKE7#..GL198308-198707

main83247-1E470iKE7#..DX,STD198308-198707

DENSO

main83247-1E490iCE7#..DX198308-198405

main83247-1E510iCE7#..GL198308-198405

main83247-1E530iCE7#..DX198308-198405

W/CLOCK

main83247-1E730iCE7#..DX198405-198707

main83247-1E750iCE7#..GL198405-198707

main83247-1E770iCE7#..DX198405-198707

W/CLOCK

83110SPEEDOMETER ASSY

main83110-12550iAE70,TE70,71..(GT,SE)..4D197903-198108

main83110-12551iAE70,CE70,KE70,TE71..(GT,SE,SX)..4D198108-198308

main83110-12560iKE7#..CTD,STD197903-198108

main83110-12570iKE70..CTD197903-198108

W/CLOCK

main83110-12571iAE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,GL,STD)198108-198308

main83110-12660iAE70,KE70..(CP,HT,LB)..(DX,GL,SL)197903-197908

main83110-12661iAE70,KE70,TE70..(CP,HT,LB)..(DX,GL,SL)197908-198108

main83110-12662iAE70,KE70..(HT,LB)..(DX,GL)198108-198304

main83110-12670iAE70,KE70,TE71..(GT,LVN,SE,SL,SR)..2D197903-197908

W/TACHOMETER

main83110-12671iAE70,KE70,TE70,71..(GT,LVN,SE,SL,SR)..2D197908-198108

W/TACHOMETER

main83110-12672iAE70,KE70..(SE,SR,SX)..2D198108-198304

main83110-13040iKE7#198308-198409

DENSO

main83110-13041iKE7#198409-198707

DENSO

main83110-13050iKE7#..DX,STD198308-198409

YAZAKI

main83110-13051iKE7#..DX198508-198707

YAZAKI

main83110-13060iCE7#198308-198405

main83110-13070iKE72..STD198508-198707

YAZAKI

main83110-1A120iTE71..2D198108-198304

main83110-1A180iTE71..LVN198108-198304

APEX

83128KNOB, TRIP COUNTER

main83128-10260iAE70,KE70,TE70,71..CP,HT,LB197903-198304

main83128-12650iAE70,CE7#,KE7#,TE7#..SED,V,WG198108-198308

main83128-12670iAE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE)197903-198108

main83128-89130iKE7#..DX,STD198308-198508

YAZAKI

83132CASE, COMBINATION METER

main83132-12010iTE71..4D197903-198108

main83132-12020iAE70,TE70..SE..4D197903-198108

main83132-12030iAE70,KE7#,TE70,73..(SED,V)..(CTD,DX,GL,STD)197903-198108

main83132-12040iAE70,KE70,TE70..(SE,SL)..2D197903-198108

W/TACHOMETER

main83132-12051iAE70,TE70,71..(GT,LVN,SR)..2D197903-198108

main83132-12060iAE70,KE70,TE70..(CP,HT,LB)..(DX,GL,SL)197903-198108

main83132-12190iAE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,GL,STD)198108-198308

main83132-12250iAE70,CE70,KE70,TE71..(GT,SE,SX)..4D198108-198304

main83132-12270iAE70,KE70..(SE,SX)..2D198108-198304

main83132-12290iAE70,TE71..(GT,LVN,LVS,SR)..2D198108-198304

main83132-12430iAE70,KE70..(HT,LB)..(DX,GL)198108-198304

main83132-12490iTE71..LVN198108-198304

APEX

main83132-12830iKE7#..GL198308-198707

main83132-12850iKE7#..DX,STD198308-198707

DENSO

main83132-12870iCE7#..GL198308-198707

main83132-12890iCE7#..DX198308-198707

main83132-13020iKE7#..DX,STD198308-198310

YAZAKI

sub83132-13H90

main83132-13040iKE7#..DX,STD198310-198707

YAZAKI

83134COVER, COMBINATION METER, NO.1

main83133-12010iAE70,TE70,71..(GT,SE)..4D197903-198108

main83133-12020iAE70,KE7#,TE70,73..(SED,V)..GL197903-198108

main83133-12030iAE70,KE70,TE71..(GT,LVN,SE,SL,SR)..2D197903-197908

W/TACHOMETER

main83133-12031iAE70,KE70,TE70,71..(GT,LVN,SE,SL,SR)..2D197908-198108

W/TACHOMETER

main83133-12040iAE70,KE70..(CP,HT,LB)..(DX,GL,SL)197903-197908

W/CLOCK

main83133-12041iAE70,KE70,TE70..(CP,HT,LB)..(DX,GL,SL)197908-198108

W/CLOCK

main83133-12050iAE70,KE7#,TE73..(SED,V)..DX197903-198108

main83133-12060iKE7#..CTD,STD197903-198108

main83133-12070iAE70,KE70..SED..(CTD,DX)197903-198108

W/CLOCK

main83133-12080iKE70..(CP,HT,LB)..DX197903-197908

main83133-12081iKE70..(CP,HT,LB)..DX197908-198108

main83133-12330iAE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD)198108-198308

main83133-12350iAE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,GL)198108-198308

W/CLOCK

main83133-12470iAE70,CE70,KE70,TE71..(GT,SE,SX)..4D198108-198304

main83133-12490iAE70,KE70,TE71..(GT,LVN,LVS,SE,SR,SX)..2D198108-198304

main83133-12530iAE70,KE70..(HT,LB)..(DX,GL)198108-198304

W/CLOCK

main83133-12550iKE70..LB..DX198108-198304

main83133-12870iKE7#198308-198707

DENSO

main83134-13020iKE7#..DX,STD198308-198310

YAZAKI

sub83132-13H90

main83134-13040iKE7#..DX,STD198310-198707

YAZAKI

83145LENS, METER, NO.1

main83145-12050iAE70,KE70,TE70..SED..GL197903-198108

main83145-12060iAE70,KE70..SED..(CTD,DX,STD)197903-198108

main83145-12070iKE71,TE73..DX,STD197908-198001

main83145-12080iKE71,TE73..GL197908-198001

main83145-12090iKE71,TE73..DX,STD198001-198108

main83145-12100iKE71,TE73..GL198001-198108

main83145-12170iAE70,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD)198108-198308

main83145-12190iCE70..CTD198202-198304

main83145-12210iCE7#..GL198202-198308

main83145-12230iCE71..DX198202-198308

main83145-12430iAE70,KE70,TE71..(GT,SE,SX)..4D198108-198304

main83145-12450iCE70..SE198202-198304

main83145-13020iKE7#..DX198310-198707

YAZAKI

83270TACHOMETER ASSY, ENGINE

main83242-12230iTE71..4D197903-198108

main83242-12240iAE70,TE70..SE..4D197903-198001

main83242-12250iAE70,KE70..(SE,SL,SR)..2D197903-197908

main83242-12251iAE70,KE70,TE70..(SE,SL,SR)..2D197908-198108

main83242-12260iTE71..2D197903-198108

main83242-12350iAE70,TE70..SE..4D198001-198108

main83242-12390iAE70,KE70..(SE,SR,SX)..2D198108-198304

main83242-12410iTE71..2D198108-198304

main83242-12570iAE70,KE70..(SE,SX)..4D198108-198304

main83242-12590iTE71..4D198108-198304

main83242-12610iCE70..SE198202-198304

main83242-12630iTE71..LVN198108-198304

APEX

83310GAGE ASSY, FUEL RECEIVER

main83243-12110iAE70,TE71..(GT,SE)..4D197903-197908

main83243-12120iAE70,KE70,TE70..SED..(CTD,DX,GL,STD)197903-197910

main83243-12130iAE70,KE70,TE70,71..(GT,LVN,SE,SL,SR)..2D197903-198108

W/TACHOMETER

main83243-12140iKE70..(CP,HT,LB)..DX197903-198108

main83243-12150iAE70,KE70,TE70..(CP,HT,LB)..(GL,SL)197903-198108

sub83243-12220

main83243-12190iAE70,TE70,71..(GT,SE)..4D197908-198108

main83243-12200iKE71,TE73197908-198108

main83243-12230iAE70,KE70,TE70..SED..(CTD,DX,GL,STD)197910-198108

main83243-12250iAE70,CE70,KE70..SED..(CTD,DX,GL,STD)198108-198304

main83243-12270iCE70..CTD198202-198304

W/CLOCK

main83243-12370iAE70,CE70,KE70,TE71..(GT,SE,SX)..4D198108-198304

main83243-12390iAE70,KE70..(SE,SX)..2D198108-198304

main83243-12410iAE70,TE71..(GT,LVN,LVS,SR)..2D198108-198304

main83243-12490iTE71..LVN198108-198304

APEX

main83243-12750iKE7#..GL198308-198707

main83243-12770iKE7#..DX,STD198308-198707

DENSO

main83243-12790iCE7#..GL198308-198707

main83243-12810iCE7#..DX198308-198707

main83243-13020iKE7#..DX,STD198308-198310

YAZAKI

main83243-13040iKE7#..DX,STD198310-198707

YAZAKI

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-12190iAE70,KE70..SED..(CTD,DX,GL,STD)197903-197908

main83244-12200iAE70,KE70,TE71..(GT,LVN,SE,SL,SR)..2D197903-197908

W/TACHOMETER

main83244-12201iAE70,KE70,TE70,71..(GT,LVN,SE,SL,SR)..2D197908-198108

W/TACHOMETER

main83244-12210iAE70,KE70..(CP,HT,LB)..(DX,GL,SL)197903-197908

main83244-12211iAE70,KE70,TE70..(CP,HT,LB)..(DX,GL,SL)197908-197910

main83244-12250iAE70,KE7#,TE70,73..(SED,V)..(CTD,DX,GL,STD)197908-197910

main83244-12300iAE70,KE70,TE70..(CP,HT,LB)..(DX,GL,SL)197910-198108

main83244-12310iAE70,KE7#,TE70,73..(SED,V)..(CTD,DX,GL,STD)197910-198108

main83244-12330iTE74198211-198308

main83244-12450iAE70,CE70,KE70,TE71..(GT,SE,SX)..4D198108-198211

main83244-12470iAE70,KE70..(SE,SX)..2D198108-198304

main83244-12490iAE70,TE71..(GT,LVN,LVS,SR)..2D198108-198211

W/VOLT METER

main83244-12610iAE70,KE70..(HT,LB)..(DX,GL)198108-198304

W/FUEL RECEIVER GAGE

main83244-12650iTE71..LVN198108-198304

APEX,W/VOLT METER

main83244-12670iCE7#..CTD,DX,GL198202-198308

main83244-12690iAE70,CE70,KE70,TE71..(GT,SE,SX)..4D198211-198304

main83244-1A270iAE70,TE71..(GT,LVN,LVS,SR)..2D198211-198304

W/VOLT METER

83909KNOB, CLOCK

main83909-12230iAE70,TE70,71..(GT,SE)..4D198002-198108

DIGITAL CLOCK,BLACK

main83909-13010iCE7#,KE7#198308-198707

sub83909-12320

main83909-14012iAE70,KE70..(HT,LB)..(DX,GL)198108-198304

main83909-22180iAE70,KE70,TE71..(GT,LVN,LVS,SE,SR,SX)..2D198108-198304

main83909-30250iAE70,TE70,71..(GT,SE)..4D197903-198002

DIGITAL CLOCK,SILVER

83910CLOCK ASSY

main83910-12210iAE70,TE70,71..(GT,SE)..4D197903-198108

DIGITAL TYPE

main83910-12211iAE70,CE70,KE70,TE71..(GT,SE,SX)..4D198108-198304

DIGITAL

main83910-12220iAE70,KE7#,TE70,73..(SED,V)..(CTD,DX,GL)197903-198108

main83910-12221iAE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,GL)198108-198308

main83910-12230iAE70,KE70,TE70,71..(GT,LVN,SE,SL,SR)..2D197903-198108

DIGITAL

main83910-12240iAE70,KE70,TE70..(CP,HT,LB)..(DX,GL,SL)197903-198108

main83910-12290iAE70,KE70,TE71..(GT,LVN,LVS,SE,SR,SX)..2D198108-198304

DIGITAL

main83910-12300iAE70,KE70..(HT,LB)..(DX,GL)198108-198304

main83910-12310iTE71..LVN198108-198304

APEX,DIGITAL

main83910-13010iCE7#,KE7#198308-198707

83919SCREW, CLOCK

main83919-12230iAE70,TE70,71..(GT,SE)..4D198002-198108

DIGITAL CLOCK,BLACK

main83919-13010iCE7#,KE7#198308-198707

sub83919-12320

main83919-14012iAE70,KE70..(HT,LB)..(DX,GL)198108-198304

main83919-30250iAE70,TE70,71..(GT,SE)..4D197903-198002

DIGITAL CLOCK,SILVER

9009300318

main90093-00318

9009300416

main90093-00416

9009900909

main90099-00909

9009900910

main90099-00910

9009900917

main90099-00917

9009900929

main90099-00929

9018305094

main90183-05094

9354015016

main93540-15016

9411540300

main94115-40300

9411540400

main94115-40400

9451100300

main94511-00300

9451100400

main94511-00400

26 parts on this diagram · 7 diagrams in section
