Toyota COROLLA — METER

0001 1������������ 0002 1���������������� 0003 1������������ 0004 1����������������

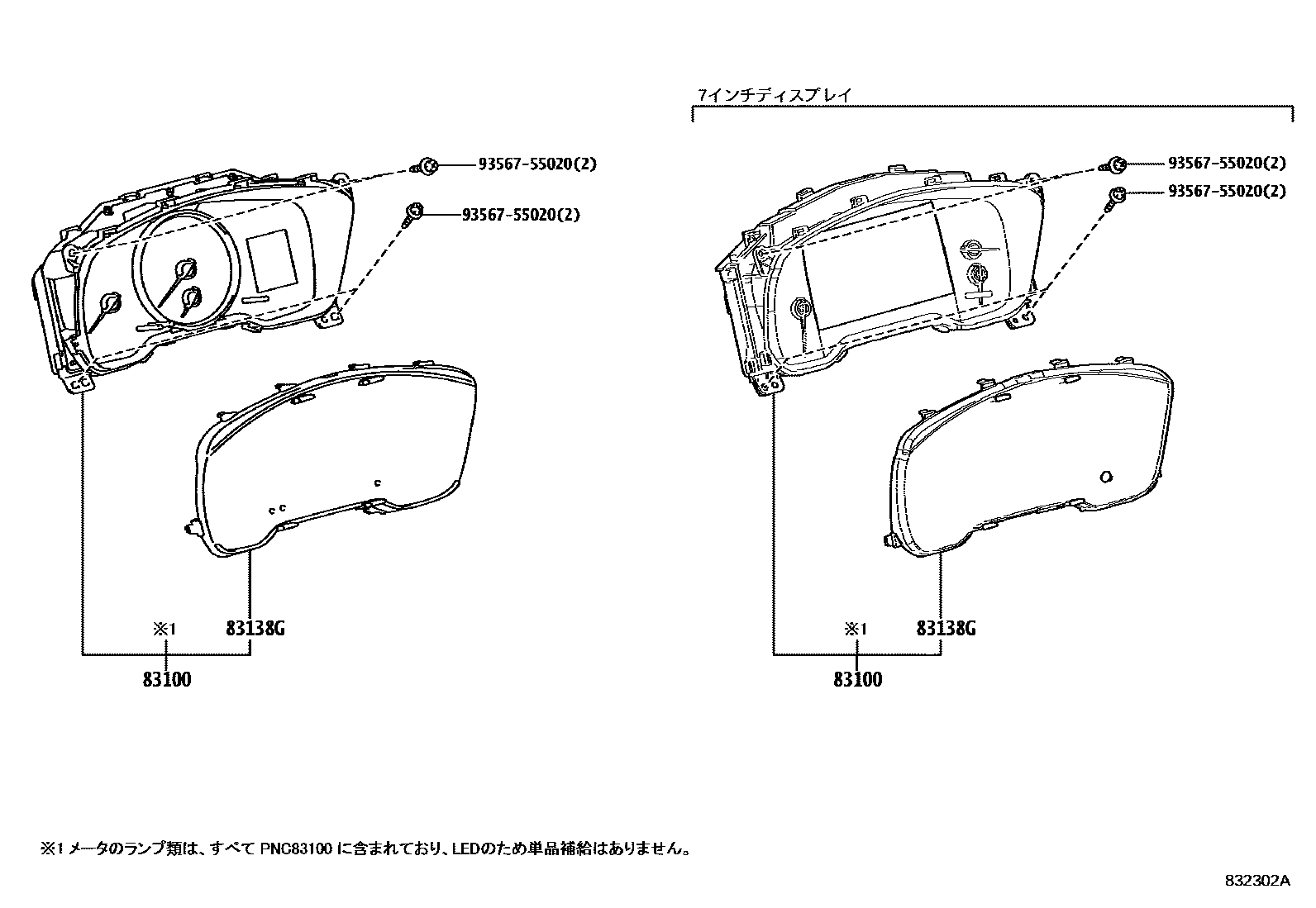

83100METER ASSY, COMBINATION

main83800-1AP21iNRE210..SED202004-202103

main83800-1AP22iNRE210..SED202103

main83800-1AP40iZWE21#..SED..HBDGX201908-202003

sub83800-1AP41

main83800-1AP61supersedes 83800-1AP51iZWE21#..SED..HBDS202004-202103

main83800-1AP62supersedes 83800-1AP52iZWE211,214..SED..HBDS202103

main83800-1AR41supersedes 83800-1AP11iZRE212..SED..S202004-202103

main83800-1AR42supersedes 83800-1AP12iZRE212..SED..S202103

main83800-1AT61iNRE210..WG202004-202103

main83800-1AT62iNRE210..WG202103

main83800-1AT81supersedes 83800-1AK91iZRE212..WG..S202004-202103

main83800-1AT82supersedes 83800-1AK92iZRE212..WG..S202103

main83800-1AU91supersedes 83800-1AU71iZWE211,214..WG..HBDWB202004-202103

main83800-1AU92supersedes 83800-1AU72iZWE211,214..WG..HBDWB202103

main83800-1AV51iMZEA12202006-202104

main83800-1AV52iMZEA12202104

main83800-1AW60iMZEA17..SED..X202404-202504

main83800-1AW70iZWE219..SED..HBDX202404

main83800-1EG90iZWE219..SED..(HBDG,HBDX)202210-202312

main83800-1EG91iZWE219..SED..(HBDG,HBDX)202312-202404

main83800-1EJ00iMZEA17..SED..(G,X)202210-202312

main83800-1EJ01iMZEA17..SED..(G,X)202312-202404

main83800-1EJ20iZWE215..SED..(HBDG,HBDX)202210-202312

main83800-1EJ21iZWE215..SED..(HBDG,HBDX)202312-202404

main83800-1EJ90iMZEA17..WG..(G,X)202210-202312

main83800-1EJ91iMZEA17..WG..(G,X)202312-202404

main83800-1EK00iZWE219..WG..(HBDG,HBDX)202210-202312

main83800-1EK01iZWE219..WG..(HBDG,HBDX)202312-202404

main83800-1EK10iZWE215..WG..(HBDG,HBDX)202210-202312

main83800-1EK11iZWE215..WG..(HBDG,HBDX)202312-202404

main83800-1EQ80iZWE215..SED..HBDX202404

main83800-1ER00iMZEA17..SED..G202404-202504

main83800-1ER10iZWE219..SED..HBDG202404

main83800-1ER20iZWE215..SED..HBDG202404

main83800-1ER50iZWE219..SED..(ACT,HBDWB)202404-202410

main83800-1ER51iZWE219..SED..(ACT,HBDWB)202411

main83800-1ER60iZWE215..SED..(ACT,HBDWB)202404-202410

main83800-1ER61iZWE215..SED..(ACT,HBDWB)202411

main83800-1ES50iMZEA17..WG..X202404-202504

main83800-1ES60iZWE219..WG..HBDX202404

main83800-1ES70iZWE215..WG..HBDX202404

main83800-1ES80iMZEA17..WG..G202404-202504

main83800-1ES90iZWE219..WG..HBDG202404

main83800-1ET00iZWE215..WG..HBDG202404

main83800-1ET30iZWE219..WG..(ACT,HBDWB)202404-202410

main83800-1ET31iZWE219..WG..(ACT,HBDWB)202411

main83800-1ET40iZWE215..WG..(ACT,HBDWB)202404-202410

main83800-1ET41iZWE215..WG..(ACT,HBDWB)202411

main83800-1AP32supersedes 83800-1AP20iNRE210..SED202408

main83800-1AP72supersedes 83800-1AP60iZWE211,214..SED..HBDWB202408

main83800-1AR30supersedes 83800-1EK62iZWE219..WG..HBDWB202210-202306

main83800-1AR31supersedes 83800-1EK62iZWE219..WG..HBDWB202307-202310

main83800-1AR32supersedes 83800-1EK62iZWE219..WG..HBDWB202310-202311

main83800-1AR33supersedes 83800-1EK63iZWE219..WG..HBDWB202311-202404

main83800-1AR52supersedes 83800-1AR40iZRE212..SED..WB202408

main83800-1AU02supersedes 83800-1AT60iNRE210..WG202408

main83800-1AU22supersedes 83800-1AT80iZRE212..WG..WB202408

main83800-1AV12supersedes 83800-1AU90iZWE211,214..WG..HBDWB202408

main83800-1ED70supersedes 83800-1EK72iZWE215..WG..HBDWB202210-202306

main83800-1ED71supersedes 83800-1EK72iZWE215..WG..HBDWB202307-202310

main83800-1ED72supersedes 83800-1EK72iZWE215..WG..HBDWB202310-202311

main83800-1ED73supersedes 83800-1EK73iZWE215..WG..HBDWB202311-202404

main83800-1ED80supersedes 83800-1ET11iMZEA17..WG..WB202210-202306

main83800-1ED81supersedes 83800-1ET11iMZEA17..WG..WB202307-202310

main83800-1ED82supersedes 83800-1ET11iMZEA17..WG..WB202310-202311

main83800-1ED83supersedes 83800-1EK83iMZEA17..WG..WB202311-202404

main83800-1EE10supersedes 83800-1EE42iZWE219..SED..HBDWB202210-202306

main83800-1EE11supersedes 83800-1EE42iZWE219..SED..HBDWB202307-202310

main83800-1EE12supersedes 83800-1EE42iZWE219..SED..HBDWB202310-202311

main83800-1EE13supersedes 83800-1EE43iZWE219..SED..HBDWB202311-202404

main83800-1EE20supersedes 83800-1EE52iZWE215..SED..HBDWB202210-202306

main83800-1EE21supersedes 83800-1EE52iZWE215..SED..HBDWB202307-202310

main83800-1EE22supersedes 83800-1EE52iZWE215..SED..HBDWB202310-202311

main83800-1EE23supersedes 83800-1EE53iZWE215..SED..HBDWB202311-202404

main83800-1EE30supersedes 83800-1ER31iMZEA17..SED..WB202210-202306

main83800-1EE31supersedes 83800-1ER31iMZEA17..SED..WB202307-202310

main83800-1EE32supersedes 83800-1ER31iMZEA17..SED..WB202310-202311

main83800-1EE33supersedes 83800-1EE63iMZEA17..SED..WB202311-202404

main83800-1EJ30iZWE219..SED..HBDG202210-202306

main83800-1EJ31iZWE219..SED..HBDG202307-202312

main83800-1EJ32iZWE219..SED..HBDG202312-202404

main83800-1EJ40iMZEA17..SED..G202210-202306

main83800-1EJ41iMZEA17..SED..G202307-202312

main83800-1EJ42iMZEA17..SED..G202312-202404

main83800-1EJ50iZWE215..SED..HBDG202210-202306

main83800-1EJ51iZWE215..SED..HBDG202307-202312

main83800-1EJ52iZWE215..SED..HBDG202312-202404

main83800-1EK30iZWE219..WG..HBDG202210-202306

main83800-1EK31iZWE219..WG..HBDG202307-202312

main83800-1EK32iZWE219..WG..HBDG202312-202404

main83800-1EK40iZWE215..WG..HBDG202210-202306

main83800-1EK41iZWE215..WG..HBDG202307-202312

main83800-1EK42iZWE215..WG..HBDG202312-202404

main83800-1EK50iMZEA17..WG..G202210-202306

main83800-1EK51iMZEA17..WG..G202307-202312

main83800-1EK52iMZEA17..WG..G202312-202404

main83800-1ER40supersedes 83800-1ER30iMZEA17..SED..WB202404-202410

main83800-1ER41supersedes 83800-1ER31iMZEA17..SED..WB202411-202504

main83800-1ER70iZWE219..SED..HBDWB202404-202410

main83800-1ER71supersedes 83800-1EE42iZWE219..SED..HBDWB202411

main83800-1ER80iZWE215..SED..HBDWB202404-202410

main83800-1ER81supersedes 83800-1EE52iZWE215..SED..HBDWB202411

main83800-1ET20supersedes 83800-1ET10iMZEA17..WG..WB202404-202410

main83800-1ET21supersedes 83800-1ET11iMZEA17..WG..WB202411-202504

main83800-1ET50iZWE219..WG..HBDWB202404-202410

main83800-1ET51supersedes 83800-1EK62iZWE219..WG..HBDWB202411

main83800-1ET60iZWE215..WG..HBDWB202404-202410

main83800-1ET61supersedes 83800-1EK72iZWE215..WG..HBDWB202411

83138GGLASS, COMBINATION METER

main83852-12G10iZRE212,ZWE211,214..GX,HBDGX,HBDS,S201908

main83852-16760iZWE215,219..ACT,HBDWB202210-202411

main83852-1AK50supersedes 83852-1EF00iMZEA17..G202404-202504

main83852-1AM40supersedes 83852-1AK50iMZEA12202006

main83852-1EF00iZWE215,219..HBDX202210

9356755020

main93567-55020

3 parts on this diagram · 4 diagrams in section
