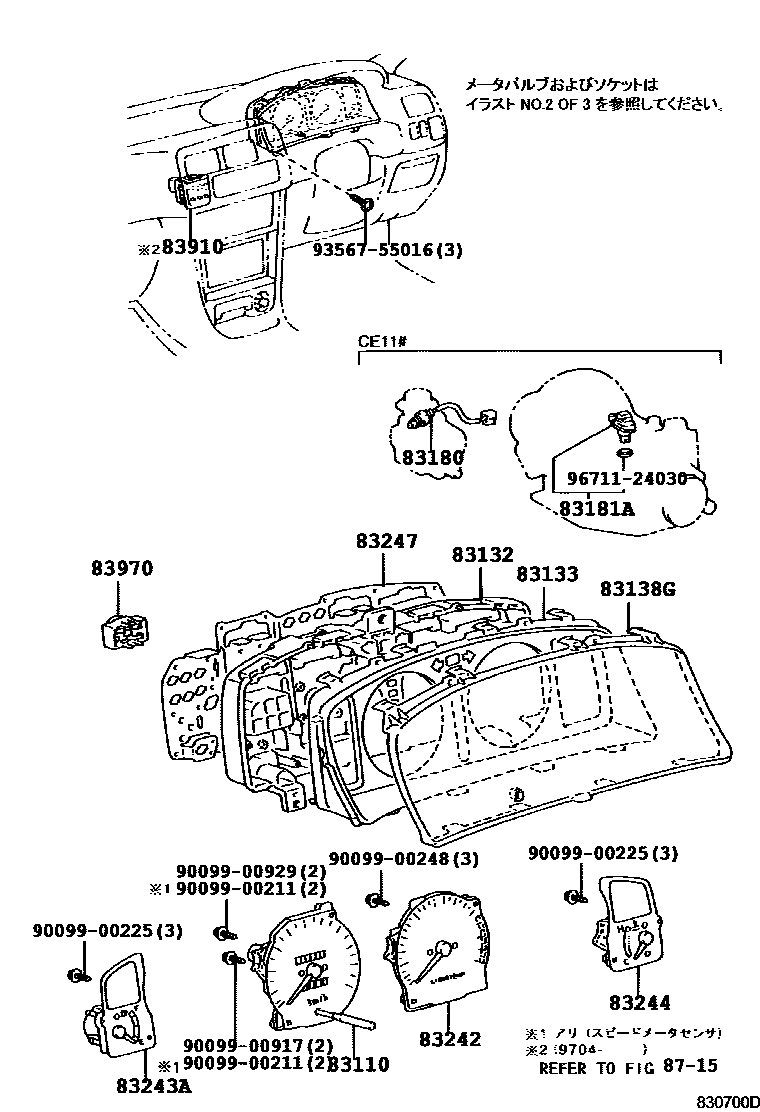

83110SPEEDOMETER ASSY

main83110-1H230iAE111..5F;AE114..4FC;AE110,CE110,EE111199505-199704

main83110-1H231iAE114..4FC;AE110,CE110,113,EE111199704-200008

main83110-1H240iAE111..4FC;AE114,CE114..5F199505-199704

main83110-1H241iAE114,CE114,116..5F199704-200008

main83220-12011iAE111199704-200008

83132CASE, COMBINATION METER

main83132-1A710iAE110,111,CE110..5F..(SCRU,SESAL)199505-199704

main83132-1A730iAE111..4FC199505-199704

main83132-1A750iAE114,CE114..5F..SESAL199505-199704

main83132-1A770iAE114..4FC..XESAL199505-199605

main83132-1A790iAE110,EE111..ATM..(DX,LX,XESAL)199505-199605

main83132-1A810iAE110,EE111..MTM..(DX,LX,XESAL)199505-199605

main83132-1A830iCE110..4FC..(DX,LX,XESAL)199505-199605

main83132-1A850iCE110..5F..(DX,LX,XESAL)199505-199605

main83132-1A890iAE114..5F..(LX,XESAL)199505-199605

main83132-1E050iCE114..LX,XESAL199505-199605

main83132-1E060iAE110,114,CE110..4FC..SESAL199505-199704

main83841-12290iAE114..4FC..XESAL199605-199704

main83841-12300iAE110,EE111..ATM..(DX,LX,XESAL)199605-199704

main83841-12310iAE110,EE111..MTM..(DX,LX,XESAL)199605-199704

main83841-12320iCE110..4FC..(DX,LX,XESAL)199605-199704

main83841-12330iCE110..5F..(DX,LX,XESAL)199605-199704

main83841-12340iAE114..5F..(LX,XESAL)199605-199704

main83841-12350iCE114..LX,XESAL199605-199704

main83841-12600iAE110,114,CE110,113..4FC..SESAL199704-200008

main83841-12610iAE110,CE110,113..5F..SESAL199704-200008

main83841-12630iAE111..4FC199704-200008

main83841-12640iAE111,114,CE114,116..MTM..(GT,SESAL)199704-200008

main83841-12700iAE110,114,EE111..ATM..(DX,LX,XESAL)199704-199711

main83841-12701iAE110,114,EE111..ATM..(DX,LX,XESAL)199711-199804

main83841-12702iAE114,CE113..4FC..(DX,LX,XESAL)199804-200008

main83841-12720iAE110,EE111..MTM..(DX,LX,XESAL)199704-199711

main83841-12721iAE110,EE111..MTM..(DX,LX,XESAL)199711-200008

main83841-12730iCE110..4FC..(DX,LX,XESAL)199704-199804

main83841-12740iCE110..5F..(DX,LX,XESAL)199704-199804

main83841-12741iCE113..5F..(DX,LX,XESAL)199804-200008

main83841-12750iAE114..5F..(LX,XESAL)199704-199711

main83841-12751iAE114..5F..(LX,XESAL)199711-199804

main83841-12752iAE114,CE116..5F..(LX,XESAL)199804-200008

main83841-12760iCE114..LX,XESAL199704-199804

83133PLATE, COMBINATION METER, NO.1

main83133-1H270iAE11#,CE110..4FC..(SCRU,SESAL)199505-199704

main83133-1H290iAE11#,CE11#..5F..(SCRU,SESAL)199505-199704

main83133-1H310iAE110,114,CE110,EE111..ATM..(DX,LX,XESAL)199505-199704

main83133-1H330iAE110,114,CE11#,EE111..MTM..(DX,LX,XESAL)199505-199704

main83811-12600iAE110,114,CE110,113..4FC..SESAL199704-200008

main83811-12610iAE110,114,CE11#..5F..SESAL199704-200008

main83811-12630iAE111..4FC199704-200008

main83811-12640iAE111..6F199704-200008

main83811-12700iAE110,114,CE110,113,EE111..ATM..(DX,LX,XESAL)199704-200008

main83811-12720iAE110,114,CE11#,EE111..MTM..(DX,LX,XESAL)199704-200008

83138GGLASS, COMBINATION METER

main83138-1A210iAE11#,CE11#,EE111199505-199704

main83852-12700iAE11#,CE11#,EE111199704-200008

83180DETECTOR ASSY, REVOLUTION

main83180-32020iCE11#199505-199704

83181ASENSOR, SPEEDOMETER

main83181-12020iAE111199704-200008

main83181-12050iAE114,CE114..5F199505-199704

83242TACHOMETER ASSY, ENGINE

main83242-1H380iAE110..SESAL199505-199704

main83242-1H400iAE111,114..SCRU,SESAL199505-199704

main83242-1H420iCE11#..SESAL199505-199704

main83881-12600iAE110,114..SESAL199704-200008

main83881-12630iAE111199704-200008

main83881-12650iCE11#..SESAL199704-199804

main83881-12651iCE11#..SESAL199804-200008

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-1A710iAE114..5F..SESAL;AE110,111..SCRU,SESAL199505-199605

main83243-1A730iAE114..4FC..SESAL199505-199604

main83243-1A750iCE11#..SESAL199505-199604

main83243-1A790iAE110,114,CE11#,EE111..DX,LX,XESAL199505-199704

main83882-12140iAE114..5F..SESAL;AE110,111..SCRU,SESAL199605-199704

main83882-12170iAE114..4FC..SESAL199605-199704

main83882-12190iCE11#..SESAL199605-199704

main83882-12600iAE110..SESAL199704-199711

main83882-12601iAE110..SESAL199711-200008

main83882-12620iAE114..SESAL199704-199711

main83882-12621iAE114..SESAL199711-199804

main83882-12622iCE113..5F..SESAL;AE114,CE116..SESAL199804-200008

main83882-12650iCE110,114..SESAL;CE113..4FC..SESAL199704-200008

main83882-12700iAE110,114,CE11#,EE111..DX,LX,XESAL199704-200008

main83882-12820iAE111199704-199711

main83882-12821iAE111199711-200008

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-1E300iAE11#,CE11#..SCRU,SESAL199505-199704

main83883-12600iAE110,114,CE110,114..SESAL199704-200008

main83883-12650iCE11#..SESAL199804-200008

main83883-12820iAE111199704-200008

83247PLATE, METER CIRCUIT

main83247-1K030iAE110,CE110..4FC..SESAL199505-199605

main83247-1K050iAE110,111,CE110..5F..(SCRU,SESAL)199505-199605

main83247-1K070iAE114..4FC..SESAL199505-199605

main83247-1K110iAE111..4FC199505-199605

main83247-1K130iAE110,114,CE110,EE111..ATM..(DX,LX,XESAL)199505-199605

main83247-1K150iAE110,CE110,EE111..MTM..(DX,LX,XESAL)199505-199605

main83247-1K190iAE114,CE114..5F..(LX,XESAL)199505-199605

main83247-1K210iAE114,CE114..5F..SESAL199505-199605

main83861-12140iAE110,CE110..4FC..SESAL199605-199704

main83861-12150iAE110,111,CE110..5F..(SCRU,SESAL)199605-199704

main83861-12160iAE111..4FC199605-199704

sub83861-12110

main83861-12170iAE114..4FC..SESAL199605-199704

main83861-12210iAE114,CE114..5F..SESAL199605-199704

sub83861-12110

main83861-12290iAE110,114,CE110,EE111..ATM..(DX,LX,XESAL)199605-199704

main83861-12310iAE110,CE110,EE111..MTM..(DX,LX,XESAL)199605-199704

main83861-12340iAE114,CE114..5F..(LX,XESAL)199605-199704

main83861-12620iCE110,113..SESAL199711-200008

main83861-12621iAE110..SESAL199804-200008

main83861-12622iAE114..4FC..SESAL199804-200008

main83861-12630iAE114..5F..SESAL;AE111,CE114..GT,SESAL199704-199711

main83861-12631iAE111;AE114..5F..SESAL199711-200008

main83861-12700iAE114..4FC..XESAL;AE110,CE110,EE111..DX,LX,XESAL199704-199711

main83861-12701iAE114..4FC..XESAL;AE110,EE111..DX,LX,XESAL199711-200008

main83861-12731iCE113..4FC..(DX,LX,XESAL)199804-200008

main83861-12741iCE113..5F..(DX,LX,XESAL)199804-200008

main83861-12750iCE114..LX,XESAL199711-199804

main83861-12751iAE114..5F..(LX,XESAL)199711-200008

main83861-12761iCE116..LX,XESAL199804-200008

83910CLOCK ASSY

main83910-12520iAE11#,CE11#,EE111199505-199704

83970BUZZER ASSY, REVERSE WARNING

main83970-12040iAE111..6F199704-200008

main83970-20010iAE11#,CE110,EE111..ATM199505-199704

8715

9009900211

main90099-00211

9009900225

main90099-00225

9009900248

main90099-00248

9009900917

main90099-00917

9009900929

main90099-00929

9356755016

main93567-55016

9671124030

main96711-24030

20 parts on this diagram · 5 diagrams in section
