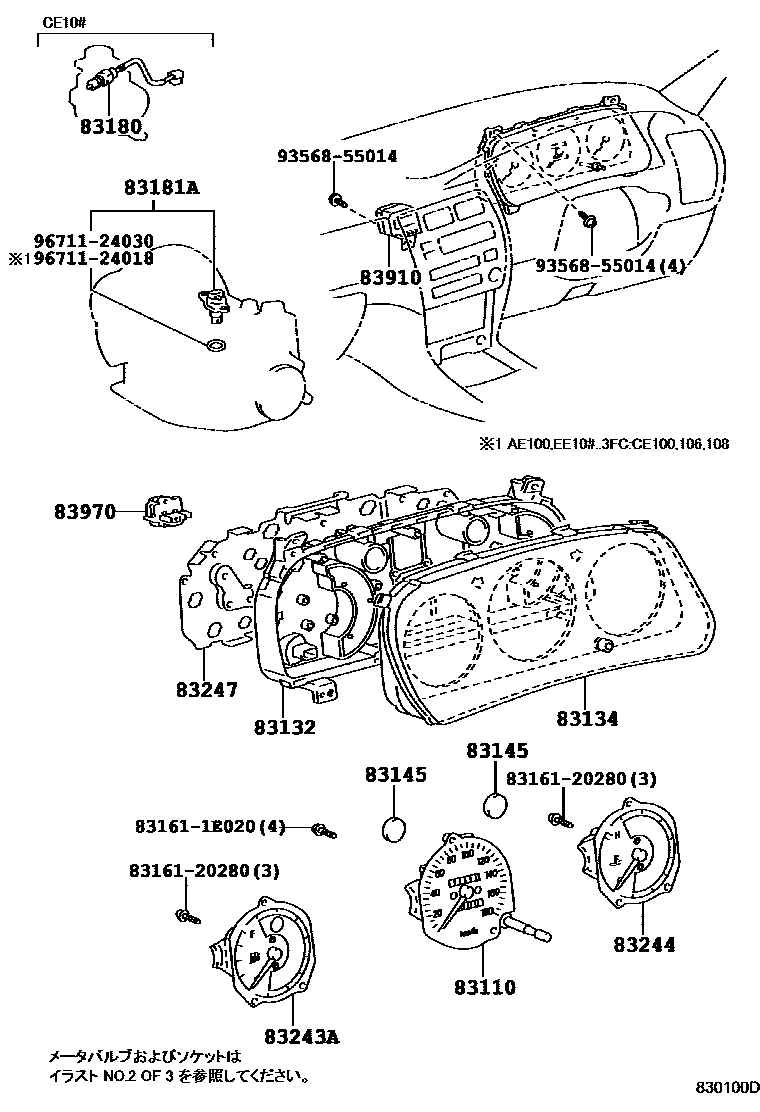

83110SPEEDOMETER ASSY

main83110-1E660iAE100,CE100,104,106,108,EE10#..MTM..(CTD,DX,DXJ,GL,L,LX)199305-199505

main83110-1E690iAE100,101,104,CE100,101,104,EE101..(4DS,WG)..(G,GT,LT,SEG,SEL,XE)199106-200008

main83110-1E870iAE101..3DS199205-199505

main83220-12020iAE101199605-200008

83132CASE, COMBINATION METER

main83132-0W010iCE106,108,109,EE10#..MTM199605-199705

main83132-1A450iAE101..5F..SEG199106-199305

main83132-1A470iAE101..4FC..SEG199106-199305

main83132-1A530iAE100,101,104,CE100,101,104,EE101..(4DS,WG)..(G,GT,LT,SEG,SEL,XE)199106-200008

main83132-1A570iAE101..3DS,WG199205-199711

main83132-1E020iCE109;AE100,CE100,106,108,EE10#..ATM..(CTD,DX,DXJ,GL,L,LX)199305-199605

main83841-1A641iAE101199711-199804

main83841-1A642iAE101199804-200008

83134COVER, COMBINATION METER, NO.1

main83134-0W010iCE106,108,109,EE10#..MTM199605-199705

main83134-1E040iAE100,CE100,104,106,108,EE10#..MTM..(CTD,DX,DXJ,GL,L,LX)199305-199605

83145LENS, METER, NO.1

main83145-0W010iCE102,105,106,107,108,109,EE102,103..MTM199705-200206

main83145-89320×2iAE100,CE100,106,108,EE107,108..ATM..(DX,GL,L,LX);AE104,CE104,109,EE101,106..(3FC,5F)..(CTD,DX,GL,LX)199205-199305

83180DETECTOR ASSY, REVOLUTION

main83180-32020iCE10#199106-199804

83181ASENSOR, SPEEDOMETER

main83181-12010iAE104,109..4FC199109

main83181-12020iAE100,101,EE10#..4F,4FC,5F,6F199106

main83181-12030iCE100,101,102,106,107,108..5F199106

main83181-12040iAE100,EE10#..3FC199106

main83181-12050iAE104,109,CE104,105,109..5F199109

main83181-12060iCE100,101,102,106,107,108..4FC199106

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-0W010iAE100,EE10#..MTM..(CTD,DX,DXJ,GL,L,LX)199205-199704

main83243-0W020iCE100,104,106,108..5F..(CTD,DX,GL,L,LX)199305-199605

main83243-1E020iAE100,EE10#..MTM..(CTD,DX,GL,L,LX)199205-199305

main83243-1E040iCE100,106,108..4FC..(DX,GL,L,LX)199205-199305

main83243-1E060iAE100,104,109,EE10#..(3FC,4F,5F)..(CTD,DX,DXJ,GL,L,LX)199305-199704

main83243-1E080iCE100,104,106,108..CTD,DX,GL,L,LX199305-199605

main83243-1E120iCE109199109-199605

main83243-1E710iAE101..SEG199106-199201

main83243-1E890iAE100,EE101..G,LT,SEL,XE199106-199202

main83243-1E891iAE100,EE101..G,LT,SEL,XE199202-199305

main83243-1H010iAE101199106-199202

main83243-1H011iAE101..4DS199202-199305

main83243-1H012iAE101..4DS199305-199505

main83243-1H030iCE100..SEL,XE199106-199202

main83243-1H031iCE100..SEL,XE199202-199305

main83243-1H050iAE104..5F..(G,LT,SEL,XE)199109-199705

main83243-1H070iAE104..4FC199109-199305

main83243-1H090iCE104..SEL,XE199109-199305

main83243-1H251iAE101..3DS199305-199505

main83243-1H530iAE101..SEG199205-199305

main83243-1H550iAE101..3DS199205-199305

main83243-1H690iAE101199605-200008

main83882-0W010iEE10#..MTM199704-199705

main83882-0W011iEE102,103..MTM199804-200206

main83882-0W020iCE106,109..5F199704-199804

main83882-0W021iCE102,105,107..5F199804-199806

main83882-12080iAE109..4FC199605-199704

main83882-1A420iEE104..3FC199612-199804

main83882-1A430iCE108..5F199612-199804

main83882-1A431iCE102,105,107..5F199804-200206

main83882-1A460iAE100,104199612-199705

main83882-1A470iCE100199612-199705

main83882-1A471iCE101199804-200008

main83882-1A600iAE109..5F199704-199804

main83882-1A602iEE102,103..MTM199804-200206

main83882-1A610iAE109..4FC199704-199804

main83882-1A612iAE109..4FC199804-200206

main83882-1A620iAE100;AE104..5F199705-199711

main83882-1A621iAE100;AE104..5F199711-199804

main83882-1A622iAE100;AE104..5F199804-200008

main83882-1E071iAE104..4FC199711-199804

main83882-1E072iAE104..4FC199804-200008

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-0W010iEE102,103..MTM199705-199804

main83244-0W011iEE102,103..MTM199804-200206

main83244-0W020iCE100,104,106,108..5F..(CTD,DX,GL,L,LX)199305-199605

main83244-0W021iCE102,105,107..5F199804-200206

main83244-1A810iAE101..SEG199106-199305

main83244-1A830iAE100,101,104,EE101..(4DS,WG)..(G,GT,LT,SEG,SEL,XE)199106-199804

main83244-1A850iCE100,104..G,LT,SEL,XE199106-199804

main83244-1E020iAE100,EE103,104,107,108..3FC..(DX,GL,L,LX);AE104,109,EE101,102,106..(3FC,4FC,5F)..(CTD,DX,DXJ,LX)199205-199804

main83244-1E040iCE106,108..4FC199605-199804

main83883-1A431iCE102,105,107..5F199804-200206

main83883-1A470iCE101199804-200008

main83883-1A602iAE109,EE104;EE102,103..3FC199804-200206

main83883-1A620iAE100,104199804-200008

83247PLATE, METER CIRCUIT

main83149-1E020iAE100,CE100,106,108,EE107,108..ATM..(DX,GL,L,LX);AE104,CE104,109,EE101,106..(3FC,5F)..(CTD,DX,GL,LX)199205-199305

main83247-0W010iCE106,108,109,EE10#..MTM199605-199704

main83247-1H050iAE101..5F..SEG199106-199305

main83247-1H070iAE101..4FC..SEG199106-199305

main83247-1H330iAE100..G,LT,XE;AE100..4FC..SEL;CE100,104,EE101..G,LT,SEL,XE199106-199605

main83247-1H350iAE101..4DS199106-199505

main83247-1H370iAE104..5F..(G,LT,SEL,XE)199109-199605

main83247-1H390iAE104..4FC199109-199705

main83247-1H410iAE100..5F..SEL199106-199505

main83247-1H770iAE101..3DS,WG199205-199705

main83861-0W010iCE106,109,EE102,103..MTM199705-199711

main83861-0W011iCE102,105,107..5F199804-200206

main83861-0W030iEE10#..MTM199711-199804

main83861-0W031iEE102,103..MTM199804-200206

main83861-12080iAE109..4FC199605-199704

main83861-1A420iCE106..4FC199711-199804

main83861-1A421iEE10#..3FC199711-199804

main83861-1A422iEE102,103..MTM199804-200206

main83861-1A431iCE102,105,107..5F199804-200206

main83861-1A460iAE104..5F;AE100,CE100199612-199705

main83861-1A470iCE101199804-200008

main83861-1A480iAE104..4FC199705-199711

main83861-1A530iAE101..4FC199705-199711

main83861-1A531iAE101..4FC199711-199804

main83861-1A532iAE101..4FC199804-200008

main83861-1A600iAE109..5F199704-199711

main83861-1A601iAE109..5F199711-199804

main83861-1A602iAE109..5F199804-200206

main83861-1A610iAE109..4FC199704-199711

main83861-1A611iAE109..4FC199711-199804

main83861-1A612iAE109..4FC199804-200206

main83861-1A620iAE100;AE104..5F199705-199711

main83861-1A621iAE100;AE104..5F199711-199804

main83861-1A622iAE100;AE104..5F199804-200008

main83861-1A640iAE101..6F199705-199801

main83861-1A641iAE101..6F199801-199804

main83861-1A642iAE101..6F199804-200008

main83861-1E071iAE104..4FC199711-199804

main83861-1E072iAE104..4FC199804-200008

main83861-1E110iEE104199804-200206

83910CLOCK ASSY

main83910-12460iAE10#,CE10#,EE10#199106

JECO

main83910-12480iAE10#,CE10#,EE10#199106

RHYTHM

main83910-12490iAE101..SEG199106-199305

83970BUZZER ASSY, REVERSE WARNING

main83970-12020iAE100,101,104,CE100,101,EE101..(4DS,WG)..ATM..(G,GT,LT,SEG,SEL,XE)199106-200008

main83970-12030iAE101..3DS..5F;AE100,109,CE100,102,106,107,108,EE10#..ATM..(CTD,DX,DXJ,GL,L,LX)199106-200206

main83970-12040iAE101..6F199705-200008

main83970-20010iAE101..(3DS,WG)..4FC199205-200008

831611E020CASE, COMBINATION METER MIRROR, NO.1

main83161-1E020

8316120280CASE, COMBINATION METER MIRROR, NO.1

main83161-20280

9356855014

main93568-55014

9671124018

main96711-24018

9671124030

main96711-24030
