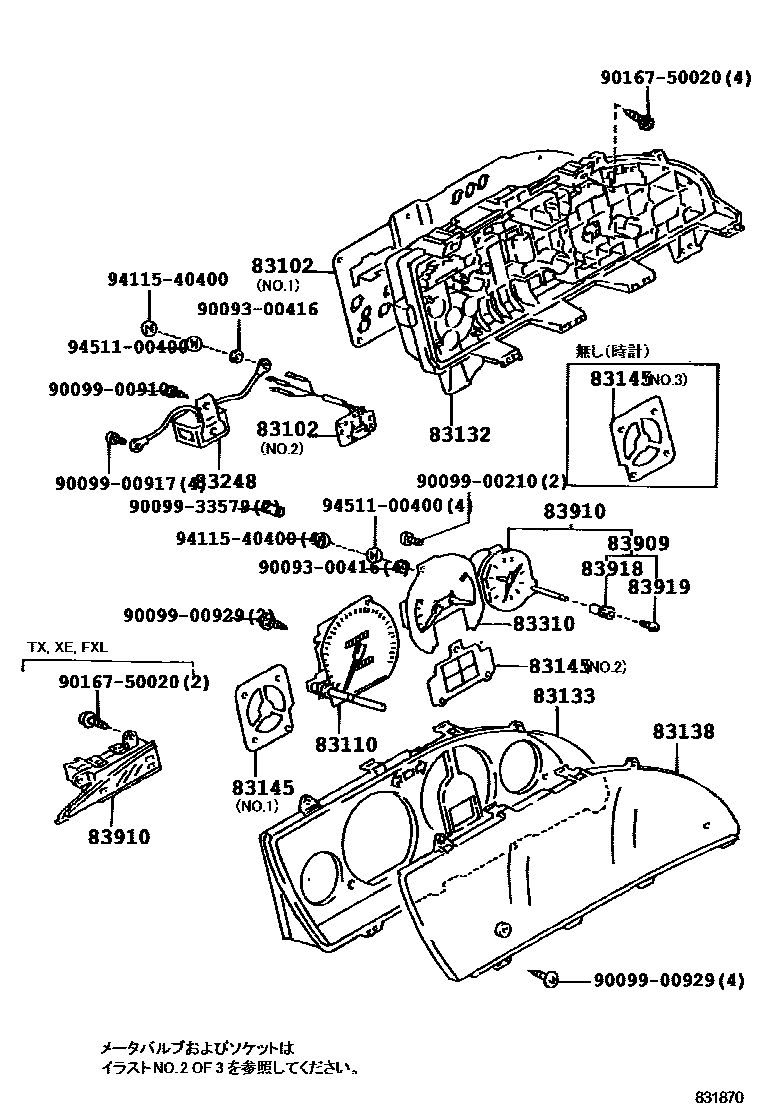

Toyota COROLLA — METER

0001 1������������,��(�����) 0002 1������������,��(�����) 0003 1������������(�����) 0005 1������������(������) 0006 1����� & ����,��(�����) 0007 1����� & ����,��(�����) 0008 1����� & ����(��������) 0010 1����� & ����(���������) 0011 1

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-13010iAE95..4FC..XE198710-198905

main83247-13011iAE95..4FC..XE198905-199008

main83247-13110iAE95..4FC..XE198710-199106

main83247-13430iAE91..SE..EFI198905-199008

main83247-13450iAE91..SE..EFI199005-199106

main83247-13510iAE91..SE..EFI198905-199106

main83247-13650iAE95..4FC..XE199008-199106

main83247-13670iAE95..5F..(TX,XE)199008-199106

main83247-13850iAE95..5F..XE198912-199106

main83247-13870iAE95..5F..SE199008-199106

main83247-13890iAE91..SE..EFI199008-199106

main83247-1E080iAE92..5F;AE91..FXZI198705-198905

main83247-1E081iAE92..4FC198905-199205

main83247-1E140iAE92..5F198705-198905

main83247-1E141iAE92..5F..(FXGT,GT)198905-199205

main83247-1E160iAE92..4FC198705-198905

main83247-1E161iAE92..4FC198905-199205

main83247-1E180iAE92..4FC198705-198905

main83247-1E181iAE92..4FC..(FXGT,GT)198905-199205

main83247-1E240iAE95..5F..(TX,XE);AE91,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE198705-198905

NO.1

main83247-1E241iAE91,CE9#,EE9#..CTD,DX,FXL,GL,L,STD,TX,XE199008-199205

NO.1

main83247-1E480iAE91..CBR198905-198908

NO.1

main83247-1E481iAE91..XE198912-199106

main83247-1E500iCE90..SE198705-198905

NO.1

main83247-1E501iCE90,95..XE198912-199106

main83247-1E740iAE92..FXGT,GT198905-199205

main83247-1E760iAE92198705-198905

main83247-1E780iAE95..4FC..SE198710-198905

NO.1

main83247-1E781iAE95..4FC..SE198905-199106

NO.1

83110SPEEDOMETER ASSY

main83110-1A800iEE97,98198905-198908

main83110-1A801iAE91,95,EE90..DX,FXL,TX,XE198905-198908

sub83110-1A802

main83110-1A840iAE91,95..FXG,G,SE198705-198905

main83110-1A841iAE91,95..(FXG,FXV,G,LT,SE)..EFI198905-199205

main83110-1E080iAE91,92..FXGT,FXZI,GT198705-198905

main83110-1E081iAE92;AE91..EFIS198905-199205

sub83110-1E082

main83110-1E390iCE9#,EE96..DX,GL,STD,TX,XE198705-198905

main83110-1E391iCE90..DX,TX,XE198905-198908

main83110-1E400iCE90..SE198705-198905

main83110-1E401iCE90,95..XE198912-199106

83132CASE, COMBINATION METER

main83132-1A090iAE91,92..FXGT,FXZI,GT198705-198905

main83132-1A091iAE92;AE91..EFIS198905-199205

main83132-1A190iAE91,95,CE9#,EE9#..CTD,DX,FXD,FXL,GL,L,STD,TX,XE198705-199008

main83132-1A210iAE95..TX,XE199008-199106

main83132-1A250iAE91,95,CE90,95..XE198912-199106

main83132-1A290iAE91,92..FXGT,FXZI,FXZS,GT198705-199205

83133PLATE, COMBINATION METER, NO.1

main83133-13170iAE95..5F..XE198912-199106

main83133-13190iAE95..5F..SE199008-199106

main83133-13210iAE95..4FC..SE199008-199106

main83133-13230iAE91..SE..EFI199008-199106

main83133-1A250iAE92..5F198705-199205

main83133-1A270iAE92..5F..(FXGT,GT)198705-199205

main83133-1A290iAE92..4FC198705-199205

main83133-1A310iAE91..SE..EFIS;AE91..FXVS,FXZI,FXZS198705-199205

main83133-1A710iAE91,95,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE198705-198905

main83133-1A730iAE91,95,CE90,95,EE90..FXL,TX,XE198905-199205

main83133-1A770iAE91..XE198912-199106

main83133-1A790iCE90,95..SE198705-199106

main83133-1E170iAE91,92..FXGT,FXZI,FXZS,GT198705-199205

main83133-1E190iAE91..5F..(FXZI,FXZS)198705-199205

main83133-1E210iAE92..5F198705-198905

main83133-1E230iAE92..4FC198705-198905

main83133-1E250iAE91..4FC..FXZI198705-198905

main83133-1E270iAE92..4FC198705-198905

main83133-1E290iAE91,92..FXGT,FXZI,FXZS,GT198705-199205

main83133-1E310iAE95..4FC..XE198912-199106

main83133-1E330iAE91..5F..SE..EFI199005-199106

main83133-1E550iAE92..5F..(FXGT,GT)198905-199205

main83133-1E570iAE92..4FC..(FXGT,GT)198905-199205

main83133-1E590iAE91..4FC..FXZS198905-199205

main83133-1E610iAE92..4FC..(FXGT,GT)198905-199205

main83133-1E630iAE92..5F..(FXGT,GT)198905-199205

main83133-1E650iAE92..5F..(FXGT,GT)198905-199205

main83133-1E670iAE92..4FC..(FXGT,GT)198905-199205

main83133-1E710iAE92..4FC..(FXGT,GT)198905-199205

main83133-1E730iAE91..SE..EFI198905-199008

83138GLASS, SPEEDOMETER

main83138-12870iAE91,CE90,96,97,EE9#..CTD,DX,FXD,STD198705-199109

main83138-12890iAE91,CE90,96,EE90,96,98..CTD,DX,STD,TX198910-199109

main83138-1A010iAE91,95,CE90,95,EE90..(FXG,FXL,FXV,G,LT,SE,TX,XE)..(CBR,DSL,EFI)198905-199205

83145LENS, METER, NO.1

main83145-13010iAE95..4FC..XE198710-199106

main83145-13030iEE98..(3FC,5F)..GL198908-199109

main83145-13230iAE91,95,EE90..DX,TX198905-198908

main83145-13330iAE95..4FC..XE199008-199106

main83145-13350iAE95..5F..(TX,XE)199008-199106

main83145-1E270iEE97..DX;AE91,95,EE90,96,98..DX,FXD,GL,STD,TX198705-198905

main83145-1E290iAE91,95,EE90,97..(3FC,4F,5F)..(FXL,GL,XE)198705-198905

main83145-1E310iCE9#..DX,STD198705-198709

main83145-1E330iCE9#..DX,STD198705-198709

main83145-1E350iCE90,95,97..GL,XE198705-199106

main83145-1E390iAE91,95,EE9#..CTD,DX,FXL,GL,L,STD,TX,XE198908-199205

main83145-1E410iCE9#..CTD,DX,GL,L,STD,XE198905-199109

main83145-1E470iEE96198708-198908

main83145-1E490iAE91,95,CE9#,EE9#..CTD,DX,FXL,STD,TX,XE198905-199008

sub83145-1E510

main83145-1E710iCE90,95..TX198905-199106

main83145-1E870iAE91,92..FXGT,FXZI,FXZS,GT198705-199205

83248CHIME, SPEED WARNING

main86640-12060iCE96,97,EE96,97,98198905-198908

main86640-12100iAE91,95,CE90..FXG,G,SE198705-198905

main86640-12120iAE91,92..FXGT,FXZS,GT198905-199205

main86640-12130iAE91,92..FXGT,FXZI,GT198705-198905

main86640-12140iAE91,92..FXGT,FXZI,GT198705-198905

83310GAGE ASSY, FUEL RECEIVER

main83243-1A150iAE91,92..FXGT,FXZI,GT198705-198905

main83243-1A151iAE92;AE91..EFIS198905-199205

main83243-1A230iAE91..CBR198905-198908

main83243-1A231iAE95..XE198912-199106

main83243-1A270iEE96,97,98198905-198908

main83243-1A271iAE91..3FC,4F198908-199205

main83243-1A290iCE96,97198905-198908

main83243-1A291iCE96..4FC198908-199109

main83243-1A370iAE95..4FC..XE198710-198802

main83243-1A371iAE95..4FC..XE198905-199106

main83243-1A391iAE91..LT198908-199109

main83243-1A470iAE95..4FC..XE198802-198905

83909KNOB, CLOCK

main83909-12320iAE91,CE9#,EE9#..CTD,DX,GL,L,STD198905-198910

83910CLOCK ASSY

main83910-12390iAE91,95,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE198705-198905

main83910-12400iAE91..CBR198905-199205

main83910-12440iAE91..SE..EFIS;AE91,92..FXGT,FXGTV,FXVS,FXZI,FXZS,GT198705-199205

main83910-12450iAE95,CE90,95,EE90..SE,TX,XE;AE91..(FXG,FXL,FXV,G,LT,SE,TX,XE)..EFI198905-199108

main83910-14340iAE91,92..FXGT,FXZI,FXZS,GT198705-199205

83918KNOB, CLOCK

main83918-12320iAE91,CE9#,EE9#..CTD,DX,GL,L,STD198905-198910

83919SCREW, CLOCK

main83919-12320iAE95..5F..(TX,XE);AE91,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE198705-198905

9009300416

main90093-00416

9009900210

main90099-00210

9009900910

main90099-00910

9009900917

main90099-00917

9009900929

main90099-00929

9009933579

main90099-33579

9016750020

main90167-50020

9411540400

main94115-40400

9451100400

main94511-00400

21 parts on this diagram · 9 diagrams in section
