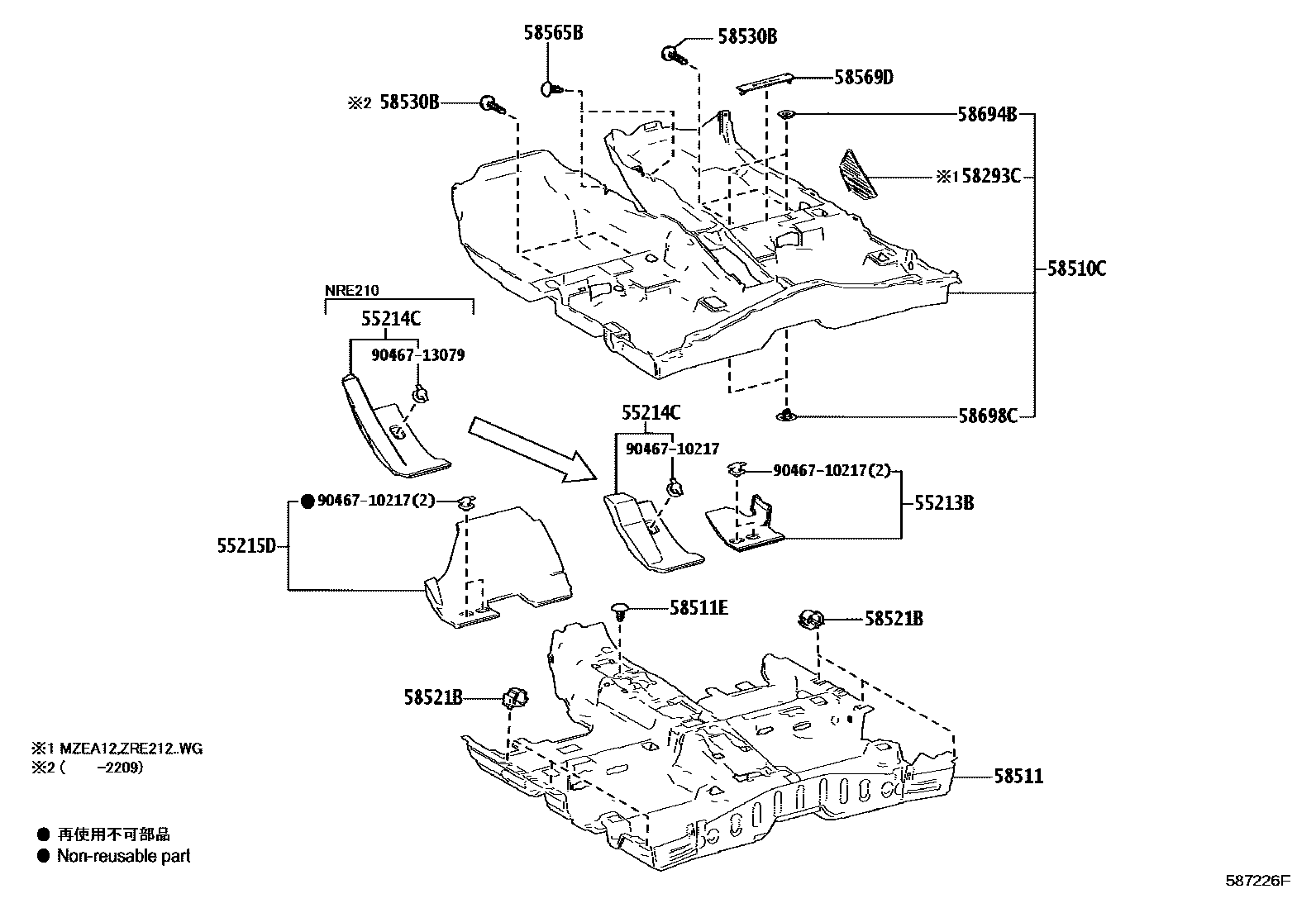

Toyota COROLLA — MAT & CARPET

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-47150i201908

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-12140i201908

main55214-47070i201908

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-47070i201908

58293CPAD, FRONT FLOOR

main58293-47020-C1i201909

BLACK,TRIM2#

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-12L30-C1i201909-202208

BLACK,TRIM2#

main58510-12L31-C1i202209

BLACK,TRIM2#

main58510-12P30-C0i201908-202208

BLACK,TRIM2#

main58510-12P31-C0i202209

BLACK,TRIM2#

main58510-12P40-C0i201908-202208

BLACK,TRIM2#

main58510-12P41-C0i202209

BLACK,TRIM2#

main58510-12P50-C0i201908-202208

BLACK,TRIM2#

main58510-12P51-C0i202210

BLACK,TRIM2#

main58510-12Q70-C1i201909-202208

BLACK,TRIM2#

main58510-12Q71-C1i202209

BLACK,TRIM2#

main58510-12S40-C0i201909-202208

BLACK,TRIM2#

main58510-12S41-C0i202209

BLACK,TRIM2#

58511MAT, FLOOR, FRONT

main58511-12770supersedes 58511-12780i202210-202504

main58511-12810supersedes 58511-12820i201908

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-07042-C4i202210-202504

BLACK,TRIM2#

58521BHOOK, FLOOR CARPET

main58521-33060×6i201908

58530BCLIP(FOR FRONT FLOOR CARPET)

main64726-10020-C2×2i202210

BLACK,TRIM2#

58565BCLIP

main90467-05164-C7×2i201908

BLACK,TRIM2#

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-47020-C1i201908

BLACK,TRIM2#

58694BPLATE, MAT SET, UPPER

main58694-78010×2i201908

58698CPLATE, MAT SET, LOWER

main58698-78010×2i201908

9046710217

main90467-10217

9046713079

main90467-13079

15 parts on this diagram · 3 diagrams in section

MAT & CARPET for Toyota COROLLA

This section contains 16 genuine Toyota parts for the MAT & CARPET system of the Toyota COROLLA. Key components include: PAD, DASH PANEL INSULATOR, NO.1, PAD, DASH PANEL INSULATOR, NO.2, PAD, DASH PANEL INSULATOR, NO.3, PAD, FRONT FLOOR, CARPET ASSY, FRONT FLOOR, FRONT.
