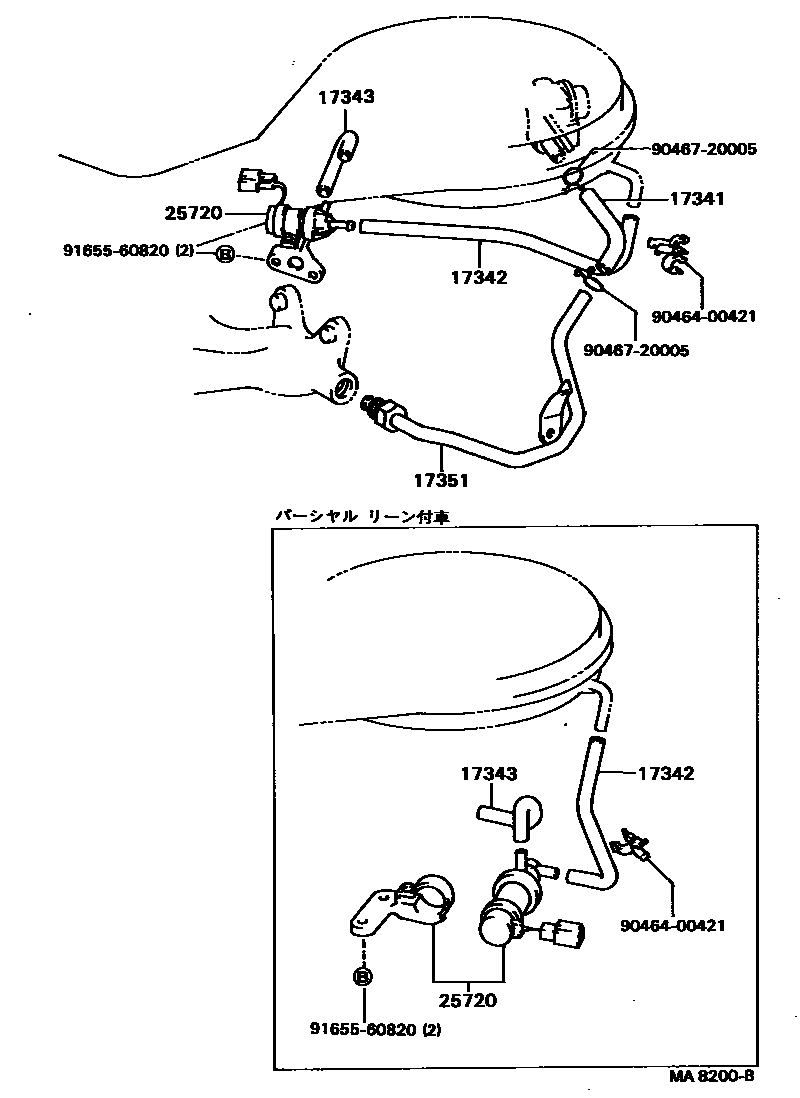

Toyota COROLLA — MANIFOLD AIR INJECTION SYSTEM
17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)
*52
17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)
*52
17351MANIFOLD, AIR INJECTION
25720VALVE ASSY, ELECTRIC AIR CONTROL
*52
9046400421
main90464-00421
9046720005
main90467-20005
9165560820
main91655-60820
8 parts on this diagram · 1 diagram in section
MANIFOLD AIR INJECTION SYSTEM for Toyota COROLLA
This section contains 8 genuine Toyota parts for the MANIFOLD AIR INJECTION SYSTEM system of the Toyota COROLLA. Key components include: HOSE, NO.1(FOR AIR INJECTION SYSTEM), HOSE, NO.2(FOR AIR INJECTION SYSTEM), HOSE, NO.3(FOR AIR INJECTION SYSTEM), MANIFOLD, AIR INJECTION, VALVE ASSY, ELECTRIC AIR CONTROL.
