Toyota COROLLA — LOCK CYLINDER SET

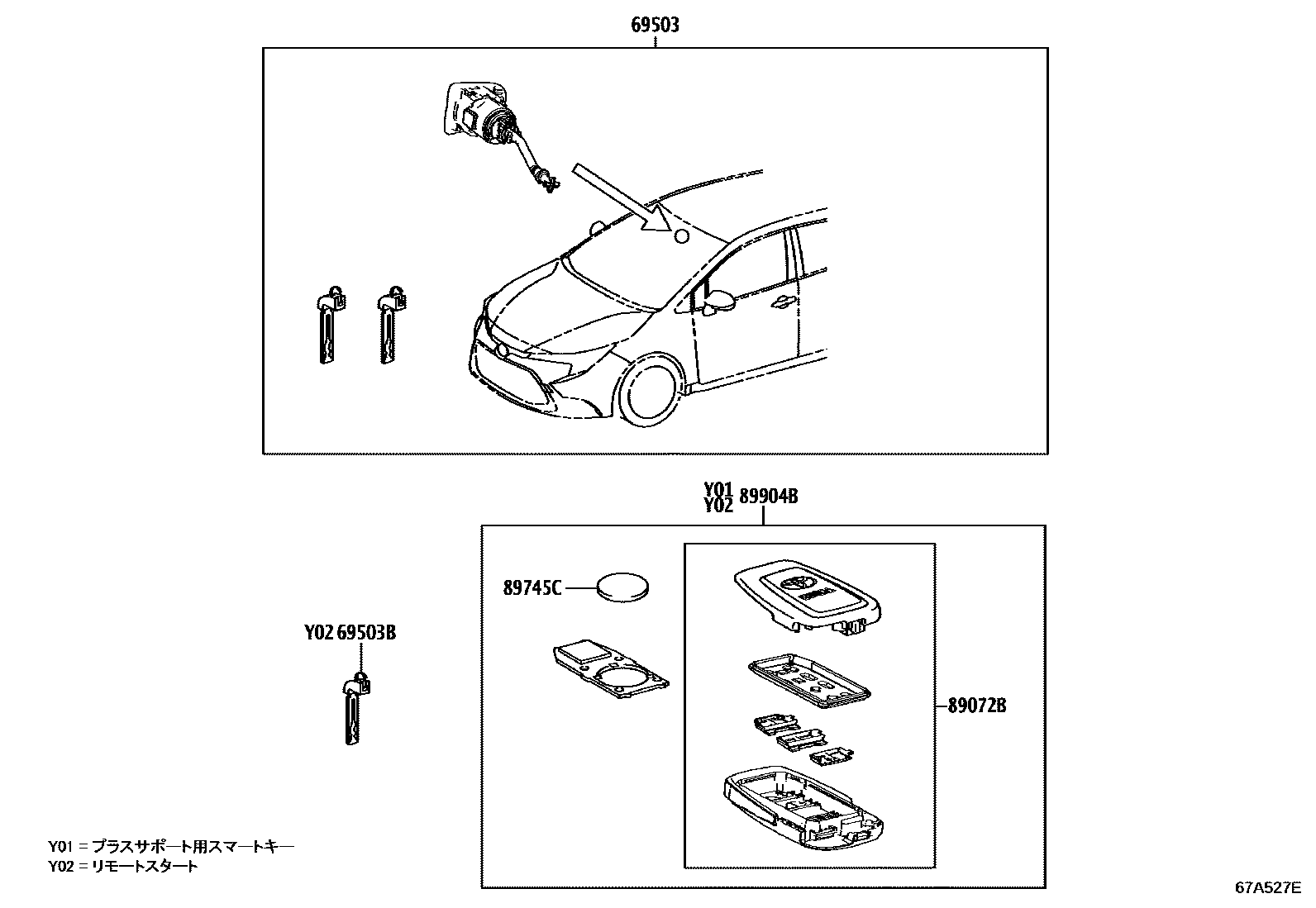

Parts diagram

69503CYLINDER SET, LOCK

main69005-12G80i202001

main69005-12G81i202210-202504

main69005-12K60i201908-202001

69503BKEY, CUT

main69515-16100×2i202010

main69515-47020×2i201908-202009

main69515-K0010×2i202210

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-12500×2i201909

main89072-12510×2i201909-202010

main89072-12720×2i201908

main89072-12730×2i201908-202010

main89072-12A40×2i202210

main89072-K0010×2i202210-202504

89745CBATTERY, TRANSMITTER

main89745-50020i201908

main89745-K0010i202210-202504

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-12150i201909

main8990H-12160i201909-202010

main8990H-12220i201908

main8990H-12230i201908-202010

main8990H-12410i202210-202306

main8990H-12411i202307-202504

main8990H-52160i202210-202306

main8990H-52161i202307-202504

5 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota COROLLA

This section contains 5 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota COROLLA. Key components include: CYLINDER SET, LOCK, KEY, CUT, HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY), BATTERY, TRANSMITTER, TRANSMITTER SUB-ASSY, ELECTRICAL KEY.
