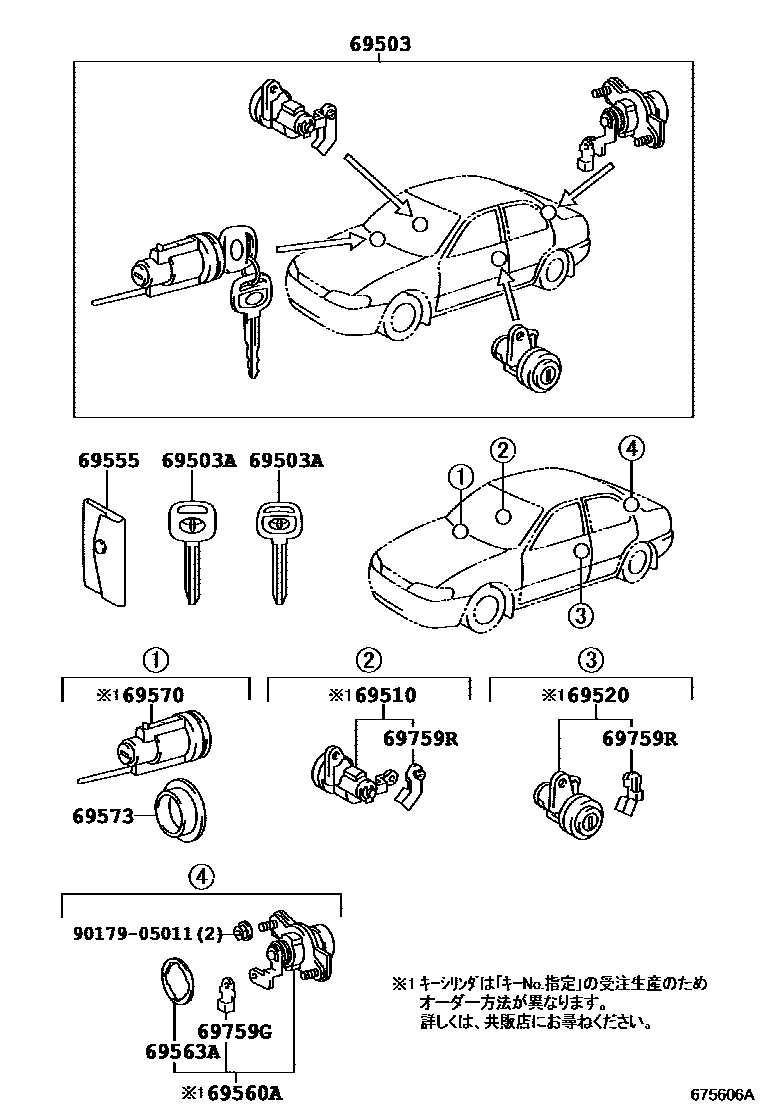

Toyota COROLLA — LOCK CYLINDER SET
69503CYLINDER SET, LOCK
69503AKEY, BLANK
69510CYLINDER ASSY, FRONT DOOR LOCK, RH
69520CYLINDER ASSY, FRONT DOOR LOCK, LH
69555COVER, KEY
69560CYLINDER ASSY, BACK DOOR LOCK
69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK
69563PAD, BACK DOOR LOCK CYLINDER
69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER
69570CYLINDER ASSY, IGNITION SWITCH LOCK
69573PAD, IGNITION SWITCH LOCK CYLINDER
69759GSNAP, LUGGAGE DOOR LOCK CYLINDER
69759RSNAP, FRONT DOOR LOCK CYLINDER
9017905011
main90179-05011
14 parts on this diagram · 4 diagrams in section
LOCK CYLINDER SET for Toyota COROLLA
This section contains 23 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota COROLLA. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER & KEY SET, FUEL FILLER LID.
