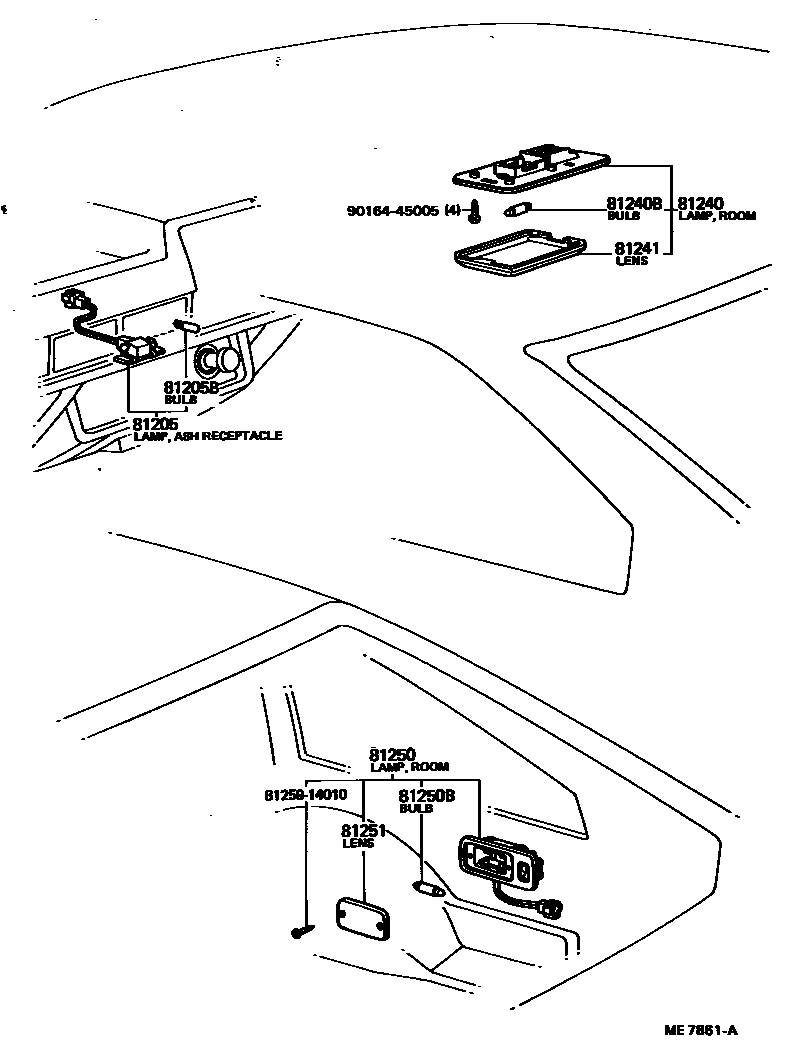

Toyota COROLLA — INTERIOR LAMP
81205LAMP SUB-ASSY, ASH RECEPTACLE
81205BBULB, ASH RECEPTACLE LAMP
81240LAMP ASSY, ROOM, NO.1
IVORY,IVORY
IVORY,IVORY
IVORY,IVORY
IVORY,IVORY
IVORY,IVORY
81240BBULB, ROOM LAMP, NO.1
81241LENS, ROOM LAMP, NO.1
81250LAMP ASSY, ROOM, NO.2
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
81250BBULB, ROOM LAMP, NO.2
81251LENS, ROOM LAMP, NO.2
8125914010
main81259-14010
9016445005
main90164-45005
10 parts on this diagram · 1 diagram in section
INTERIOR LAMP for Toyota COROLLA
This section contains 10 genuine Toyota parts for the INTERIOR LAMP system of the Toyota COROLLA. Key components include: LAMP SUB-ASSY, ASH RECEPTACLE, BULB, ASH RECEPTACLE LAMP, LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1.
