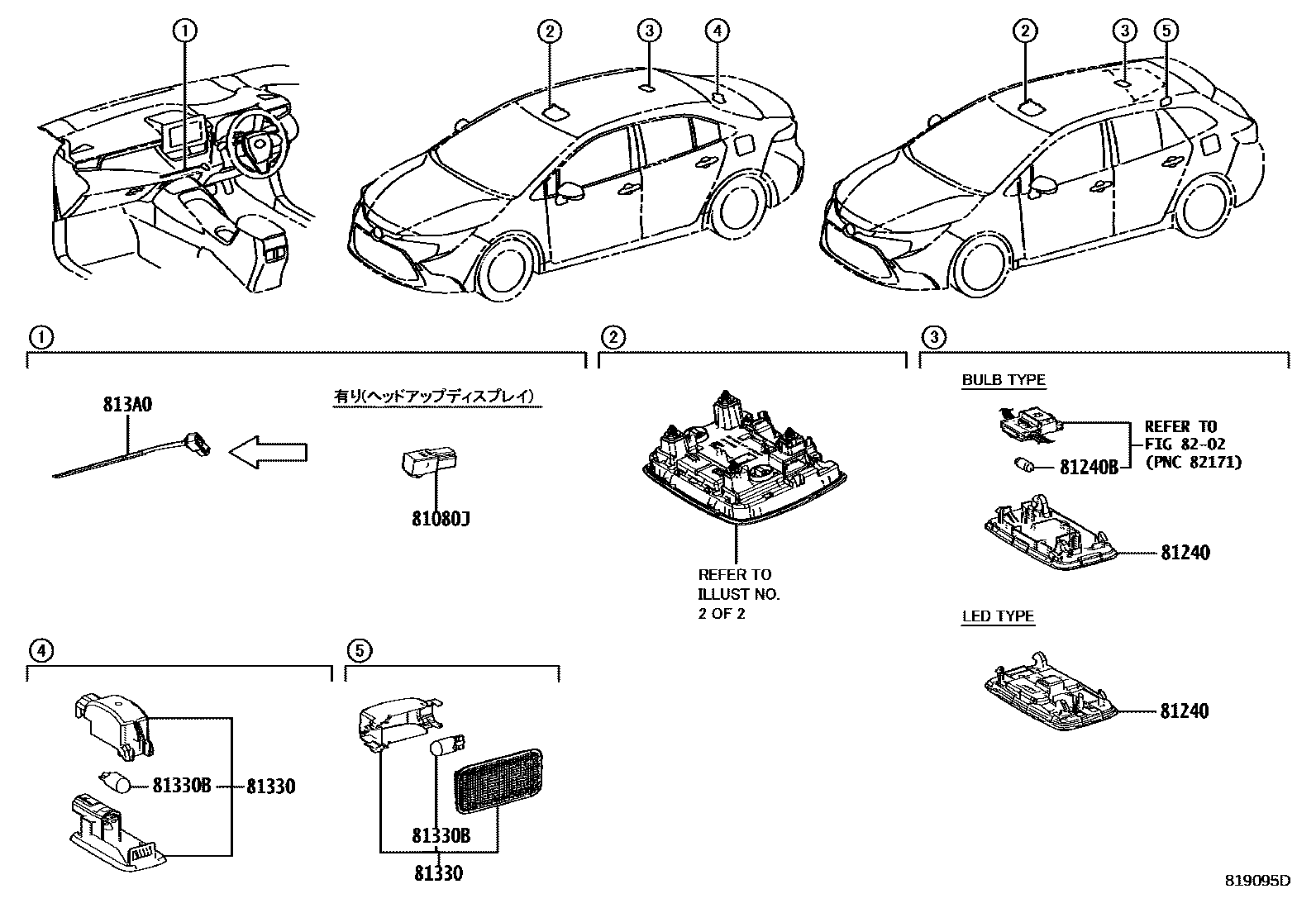

Toyota COROLLA — INTERIOR LAMP

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-33290i202210-202505

81240LAMP ASSY, ROOM, NO.1

main81240-12100-A9i201908

FROMAGE,TRIM2#; FROMAGE,TRIM21,22

main81240-12100-C0i201908

BLACK,TRIM2#; BLACK,TRIM21,22

main81240-48040-C1supersedes 81240-12100-C0i202210-202504

81240BBULB, ROOM LAMP, NO.1

main90981-14011i201908

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-30210i201908

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050i201908

813A0LAMP ASSY, INSTRUMENT PANEL

main813A0-12020i202006

8202WIRING & CLAMP

→ Go to FIG 82-02

7 parts on this diagram · 2 diagrams in section

INTERIOR LAMP for Toyota COROLLA

This section contains 14 genuine Toyota parts for the INTERIOR LAMP system of the Toyota COROLLA. Key components include: CLIP(FOR MAP LAMP), LAMP ASSY, INTERIOR ILLUMINATION, NO.1, LAMP SUB-ASSY, MAP, LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1.
