Toyota COROLLA — INTERIOR LAMP

81205BBULB, ASH RECEPTACLE LAMP

main90981-11018i199704-200008

81240LAMP ASSY, ROOM, NO.1

main81240-12060-A1i199511-199704

IVORY,TRIM4#

main81240-12060-B3i199511-199704

LT.GRAY,TRIM1#

main81240-12060-B4i199704-200008

MD.GRAY,TRIM1#

main81240-12060-B6i199704-199804

MD.CHARCOAL,TRIM1#

main81240-12080-A0i199505-199511

IVORY,TRIM4#

main81240-12080-B0i199505-199511

LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011i199505-199704

81241LENS, ROOM LAMP, NO.1

main81241-12020i199704-200008

81260ALAMP ASSY, MAP

main81260-12100-B1i199704-199804

MD.CHARCOAL,TRIM14

main81260-12100-B3i199704-199804

LT.GRAY,TRIM1#; LT.GRAY,TRIM11

main81260-20160-A0i199505-199704

IVORY,TRIM4#

main81260-20160-B1i199704-199804

main81260-20160-B2i199704-200008

81260CBULB(FOR MAP LAMP)

main90981-12005×2i199704-200008

main90981-12014i199804-200008

81261LENS AND COVER, MAP LAMP

main81261-20160-A0i199508-199704

IVORY,TRIM4#

main81261-20160-B2i199704-199804

LT.GRAY,TRIM1#; LT.GRAY,TRIM11

main81261-20160-B4i199704-200008

MD.CHARCOAL,TRIM1#

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-12020i199505-199704

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020i199505-199704

81870DLAMP ASSY, KEY CYLINDER

main81870-32051i199605-199704

81870EBULB, KEY CYLINDER LAMP

main90981-11018i199605-199704

81870FCAP, KEY CYLINDER LAMP BULB

main84998-10070i199605-199704

9016445005

main90164-45005

9046706132

main90467-06132

9354054016

main93540-54016

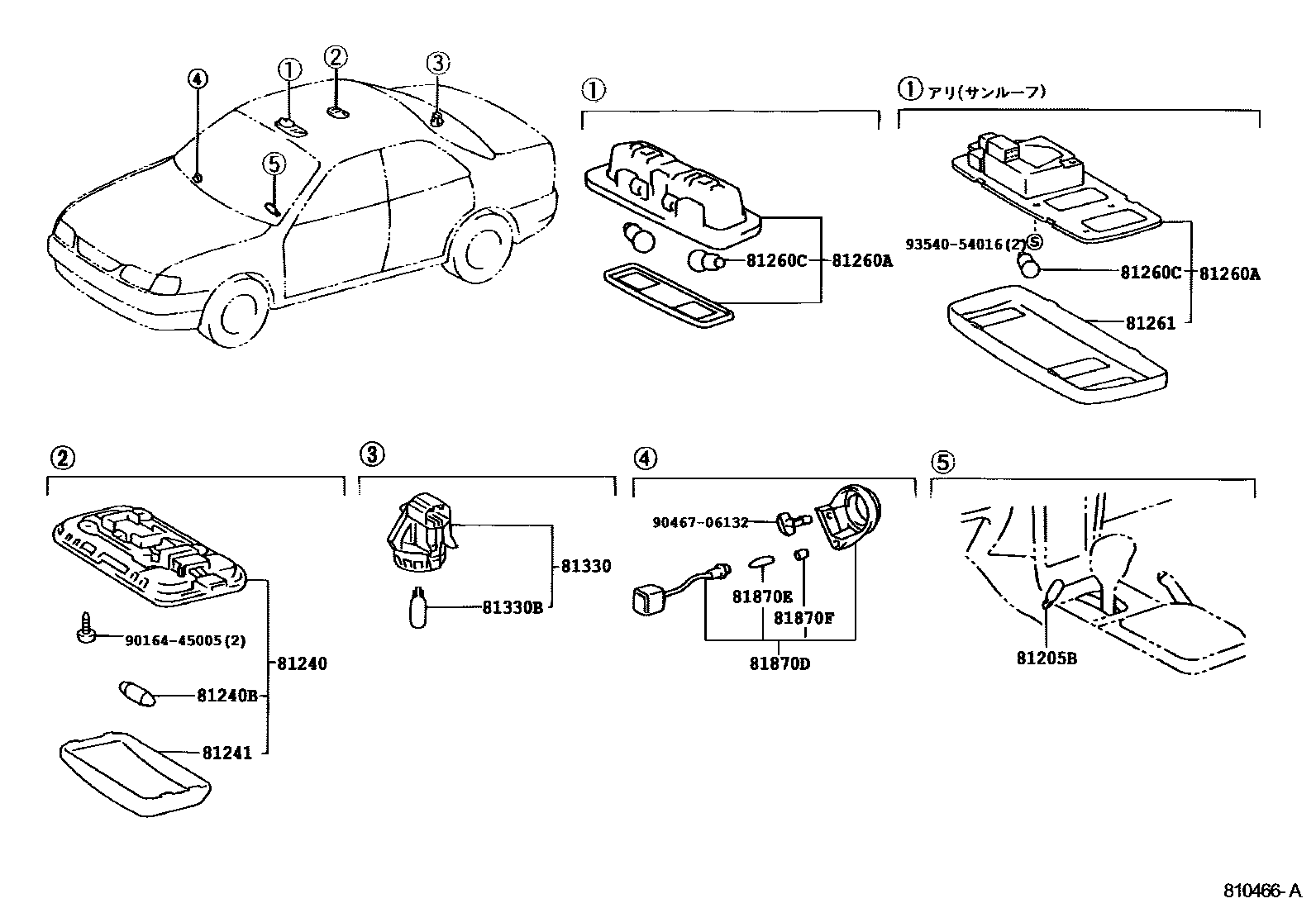

15 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota COROLLA

This section contains 15 genuine Toyota parts for the INTERIOR LAMP system of the Toyota COROLLA. Key components include: BULB, ASH RECEPTACLE LAMP, LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, LAMP ASSY, MAP.
