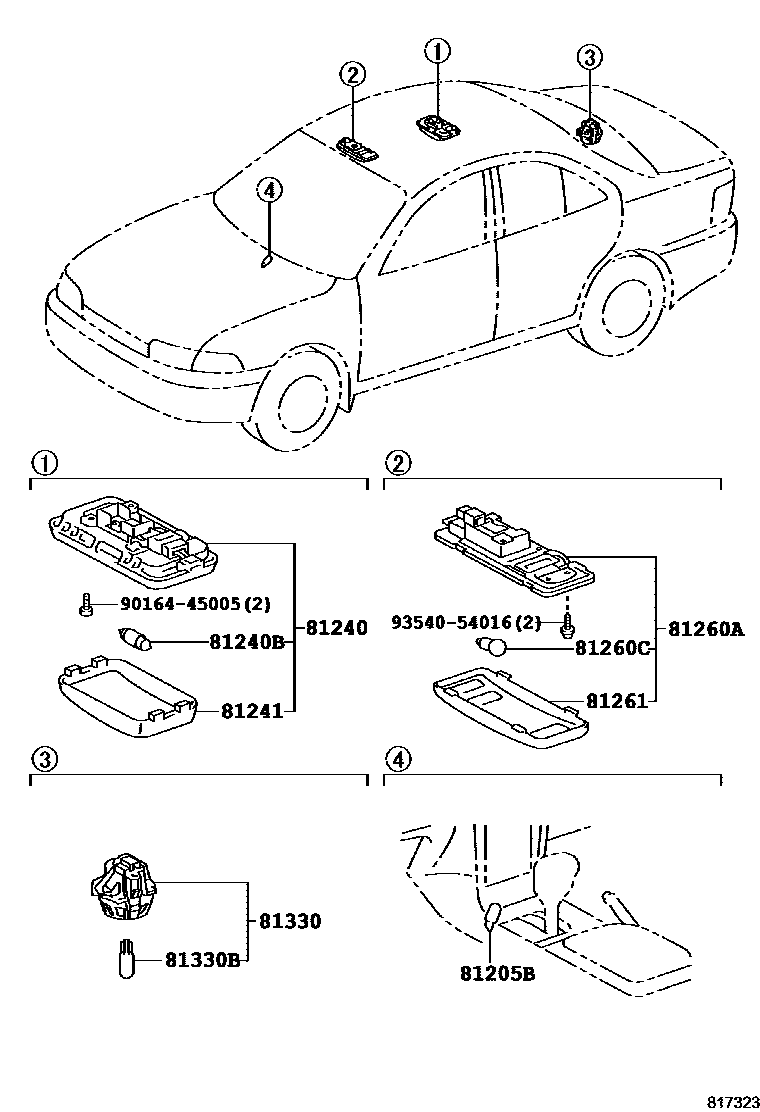

Toyota COROLLA — INTERIOR LAMP
81205BBULB, ASH RECEPTACLE LAMP
81240LAMP ASSY, ROOM, NO.1
LIGHT GRAY,TRIM1#
LIGHT BLUE,TRIM8#
LIGHT TAUP,TRIM9#
LIGHT GRAY,TRIM1#
LIGHT GRAY,TRIM1#
LIGHT GRAY,TRIM1#
LIGHT GRAY,TRIM1#
LT.GRAY,TRIM1#
LIGHT TAUPE,TRIM9#
81240BBULB, ROOM LAMP, NO.1
81241LENS, ROOM LAMP, NO.1
81260ALAMP ASSY, MAP
LT.GRAY,TRIM1#
LIGHT TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
LIGHT BLUE,TRIM8#
81260CBULB(FOR MAP LAMP)
81261LENS AND COVER, MAP LAMP
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
SHADOW GRAY,TRIM1#
LIGHT GRAY,TRIM1#
LIGHT BLUE,TRIM8#
LIGHT TAUPE,TRIM9#
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
9016445005
main90164-45005
9354054016
main93540-54016
11 parts on this diagram · 3 diagrams in section
INTERIOR LAMP for Toyota COROLLA
This section contains 20 genuine Toyota parts for the INTERIOR LAMP system of the Toyota COROLLA. Key components include: BULB, ASH RECEPTACLE LAMP, LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2.
