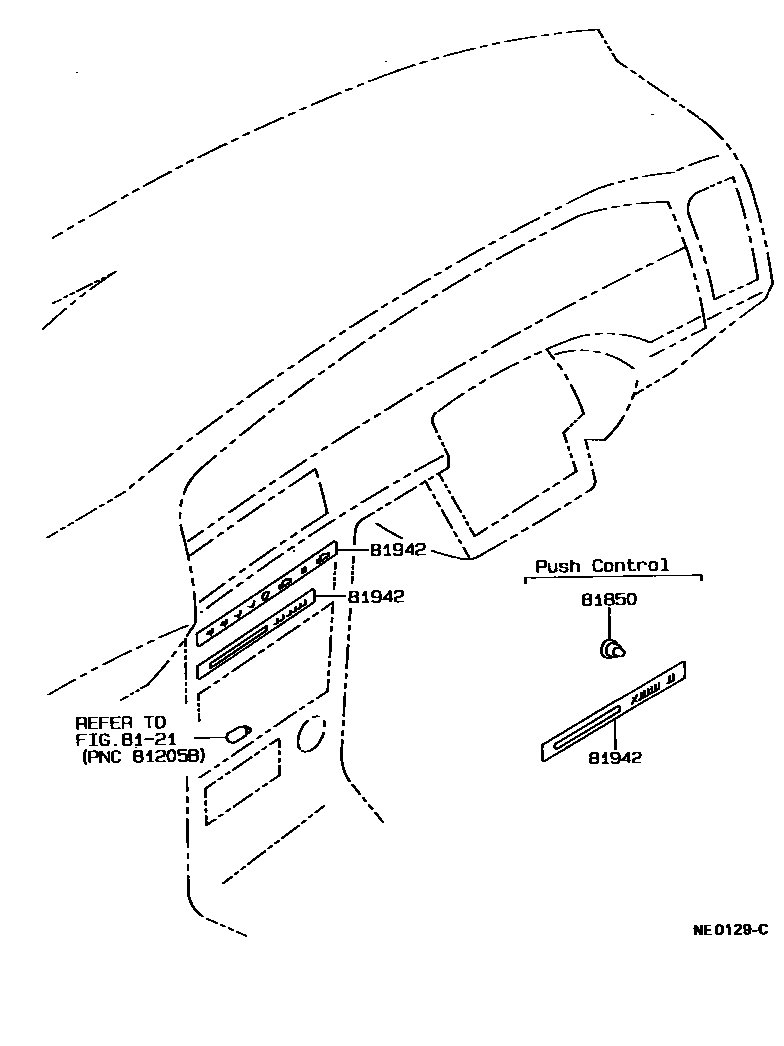

Toyota COROLLA — INDICATOR

8121

81850LAMP ASSY, INDICATOR

main81850-12220iAE91..SE..EFI198805-198905

81942SHEET, HEATER CONTROL NAME

main81942-12230iAE91..SE..EFI198805-198905

main81942-12240iAE91..FXVS;AE9#,CE9#,EE9#..(CTD,DX,FXG,FXGTV,FXL,FXV,G,GL,L,LT,SE,STD,TX,XE)..(CBR,DSL,EFI)198905-199205

main81942-12250iAE91..CBR;AE91..FXZI;AE92,95,CE9#,EE9#198705-198905

main81942-12260iCE90..XE;AE9#..FXG,FXGT,FXL,FXZI,G,GT,TX,XE198805-198905

3 parts on this diagram · 1 diagram in section
