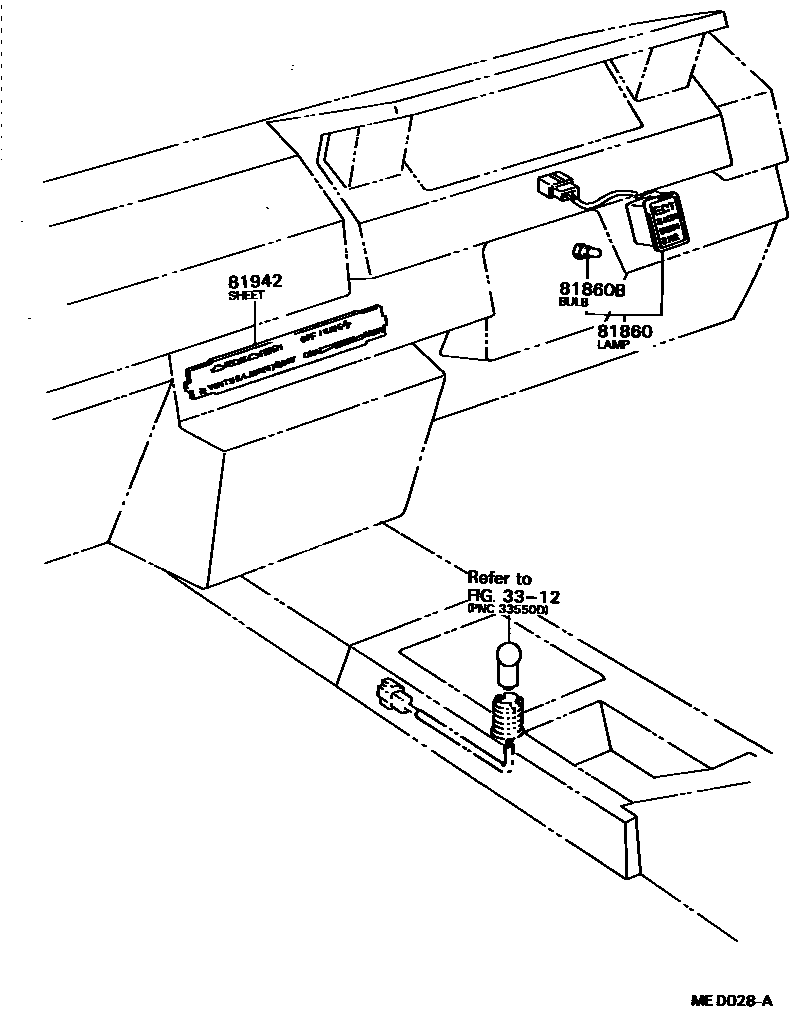

Toyota COROLLA — INDICATOR

3312

81860LAMP ASSY, TRANSMISSION INDICATOR

main81860-12010iAE82..4FC198305-198704

W/*ECT

main81860-12020iAE81,CE80..4FC198401-198704

W/OVER DRIVE

81860BBULB, TRANSMISSION INDICATOR LAMP

main84999-10110×2iAE81,82,CE80..4FC198305-198704

81942SHEET, HEATER CONTROL NAME

main81942-12070iAE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX198305-198408

main81942-12071iAE8#,CE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX198408-198505

main81942-12100iAE82198401-198408

W/*AAC

main81942-12101iAE81,CE80..(3FC,5F)..(FXG,SE,SX,ZX)198408-198505

W/*AAC

main81942-12130iAE82..FXT,GT198410-198505

W/*AS

main81942-12140iAE82..FXT,GT198410-198505

W/*AS & *AAC

main81942-12150iAE82..FXR,FXT,GT,ZX198505-198704

W/*DS

main81942-12160iAE82..FXR,FXT,GT,ZX198505-198704

W/*AS

main81942-12210iAE81,CE80..FXG,SE,ZX198505-198704

W/*AAC

main81942-12220iAE82..FXR,FXT,GT,ZX198505-198704

W/*AS & *AAC

4 parts on this diagram · 1 diagram in section
