Toyota COROLLA — IGNITION COIL & SPARK PLUG / GLOW PLUG

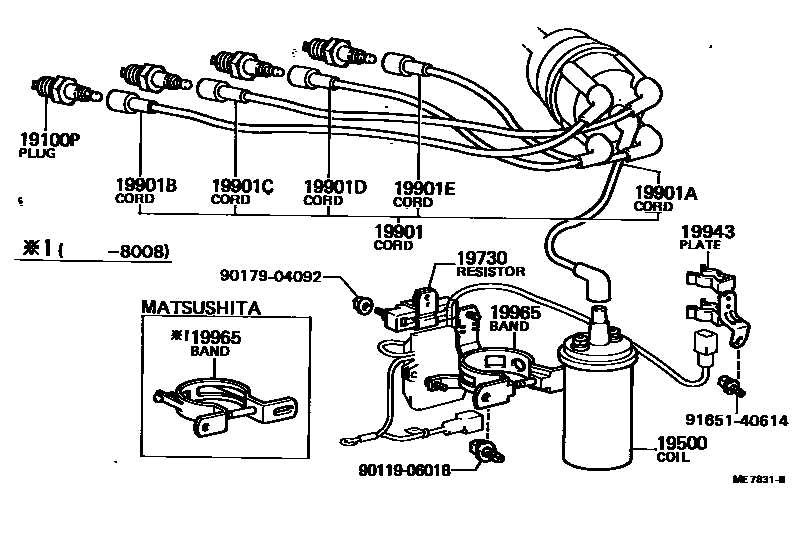

Parts diagram

19100PPLUG, SPARK

main90919-01059×4i197908-198108

main90919-01064×4i197903-198108

main90919-01085×4i197903-198108

main90919-01087×4i198005-198308

BP5EK-A(NGK)

main90919-01090×4i197908-198005

W16ET-S(DENSO)

main90919-01091×4i198108-198304

main90919-01095×4i198005-198108

W16ETR-S(DENSO)

main90919-01096×4i198005-198108

BPR5EK-A(NGK)

main90919-01102×4i197903-198108

main90919-01104×4i198108-198304

main90919-01117×4i198108-198707

main90919-01118×4i198108-198707

19500COIL ASSY, IGNITION

main90919-02083i198108-198308

main90919-02098i197908-198108

main90919-02103i197908-198108

main90919-02106i197908-198108

main90919-02117i198108-198308

main90919-02131i198108-198304

main90919-02132i198108-198308

main90919-02147i198308-198707

19730RESISTOR, IGNITION COIL

main90919-04017i197903-198103

main90919-04026i197903-198108

main90919-04027i197908-198108

main90919-04030i198103-198108

IGNITER=MATSUSHITA

main90919-04031i198108-198304

main90919-04037i198108-198308

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21070i197903-198707

main90919-21120i197908-198308

main90919-21203i197903-198304

main90919-21217i197903-198009

main90919-21268i198009-198304

19901ACORD, COIL RESISTIVE

main90919-13023i197903-198304

main90919-13048i197903-198707

main90919-13105i197908-198308

main90919-13170i198009-198707

main99254-21028i197903-198009

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90072-76848i197903-198304

main90919-12084i197903-198707

main90919-12149i197908-198308

main90919-12352i198009-198304

main99242-21037i197903-198009

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90072-76849i197903-198304

main90919-12083i197903-198707

main90919-12150i197908-198308

main90919-12353i198009-198304

main99242-21032i197903-198009

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90072-76850i197903-198304

main90919-12083i197903-198707

main90919-12151i197908-198308

main90919-12354i198009-198304

main99242-21018i197903-198009

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90072-76851i197903-198304

main90919-12084i197903-198707

main90919-12152i197908-198308

main90919-12355i198009-198304

main99242-21020i197903-198009

19943PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1

main19943-15010i197903-198108

main19943-15011i198108-198304

main19943-88260i197903-198304

19965BAND, IGNITION COIL, NO.1

main90919-03061i197903-198008

IGNITER=MATSUSHITA

main90919-03066i197903-198108

IGNITER=ND

main90919-03074i198108-198308

main90919-03075i198103-198108

IGNITER=MATSUSHITA

9011906018

main90119-06018

9017904092

main90179-04092

9165140614

main91651-40614

14 parts on this diagram · 7 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota COROLLA

This section contains 28 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota COROLLA. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, RESISTOR, IGNITION COIL, PLUG ASSY, GLOW, GROMMET, SCREW(FOR GLOW PLUG).
