Toyota COROLLA — IGNITION COIL & SPARK PLUG / GLOW PLUG

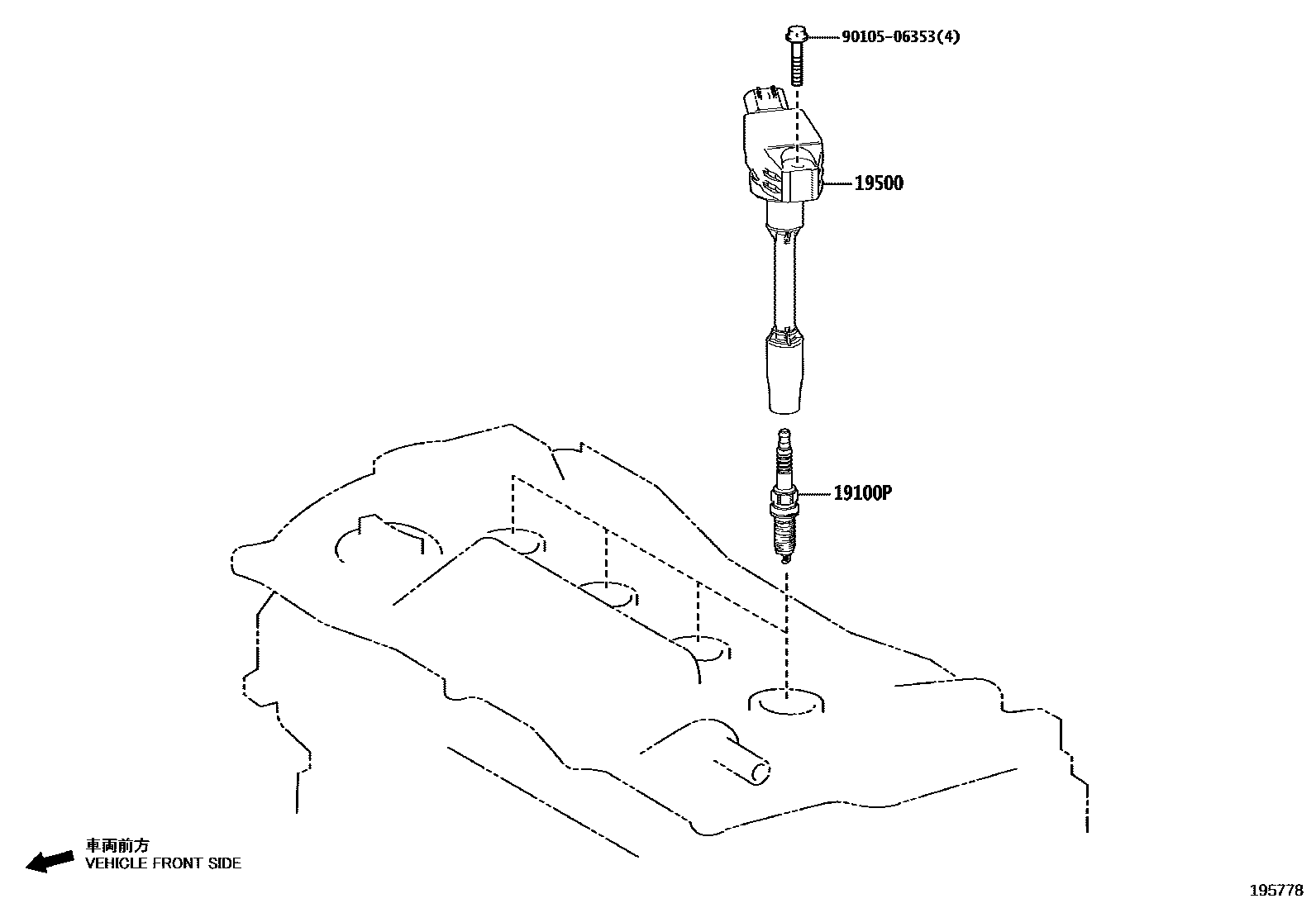

Parts diagram
19100PPLUG, SPARK
main90919-01285×4i201908
main90919-01289×4i201908
main90919-01297×4i202006
main90919-01298×4i201908
main90919-01301×3i202210-202504
19500COIL ASSY, IGNITION
main90919-02272×4i201908
main90919-02276×4i201908
main90919-02277×3i202210-202504
9010506353
main90105-06353

3 parts on this diagram · 5 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota COROLLA

This section contains 6 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota COROLLA. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, COIL, IGNITION, NO.1.
