Toyota COROLLA — HORN

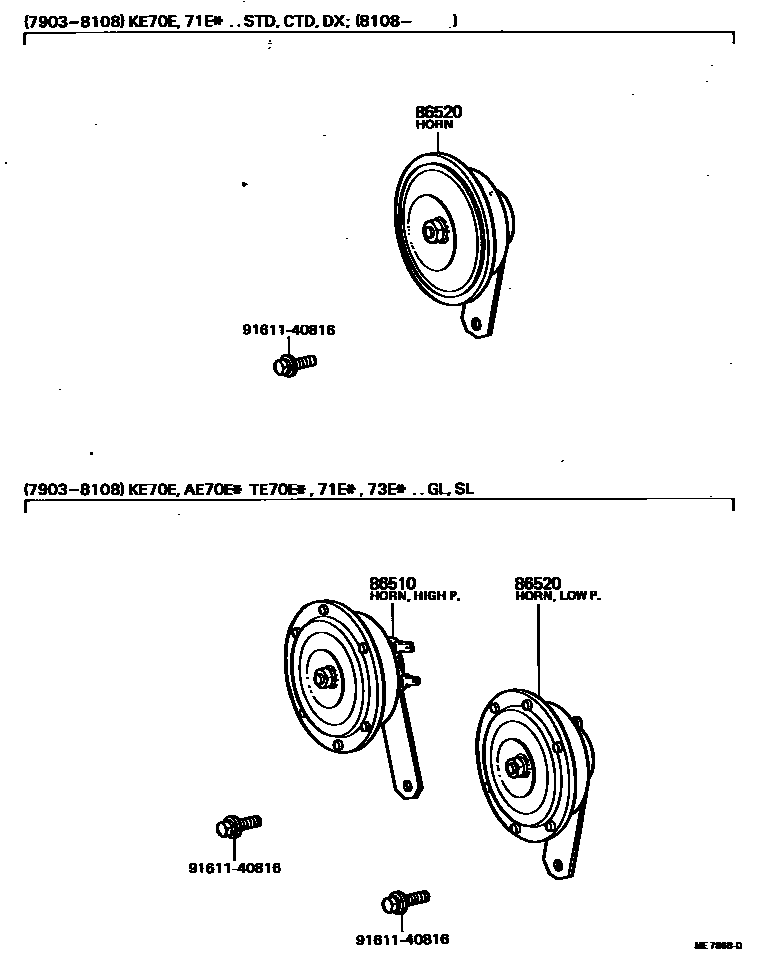

Parts diagram
86510HORN ASSY, HIGH PITCHED
main86510-12170i197903-198108
DENSO
main86510-12180i197903-198108
MARUKO
86520HORN ASSY, LOW PITCHED
main86520-12150i198108-198308
main86520-12170i197903-198108
DENSO
main86520-12180i197903-198108
MARUKO
main86520-12360i198308-198707
9161140816
main91611-40816

3 parts on this diagram · 1 diagram in section

HORN for Toyota COROLLA

This section contains 3 genuine Toyota parts for the HORN system of the Toyota COROLLA. Key components include: HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED.
