Toyota COROLLA — HORN

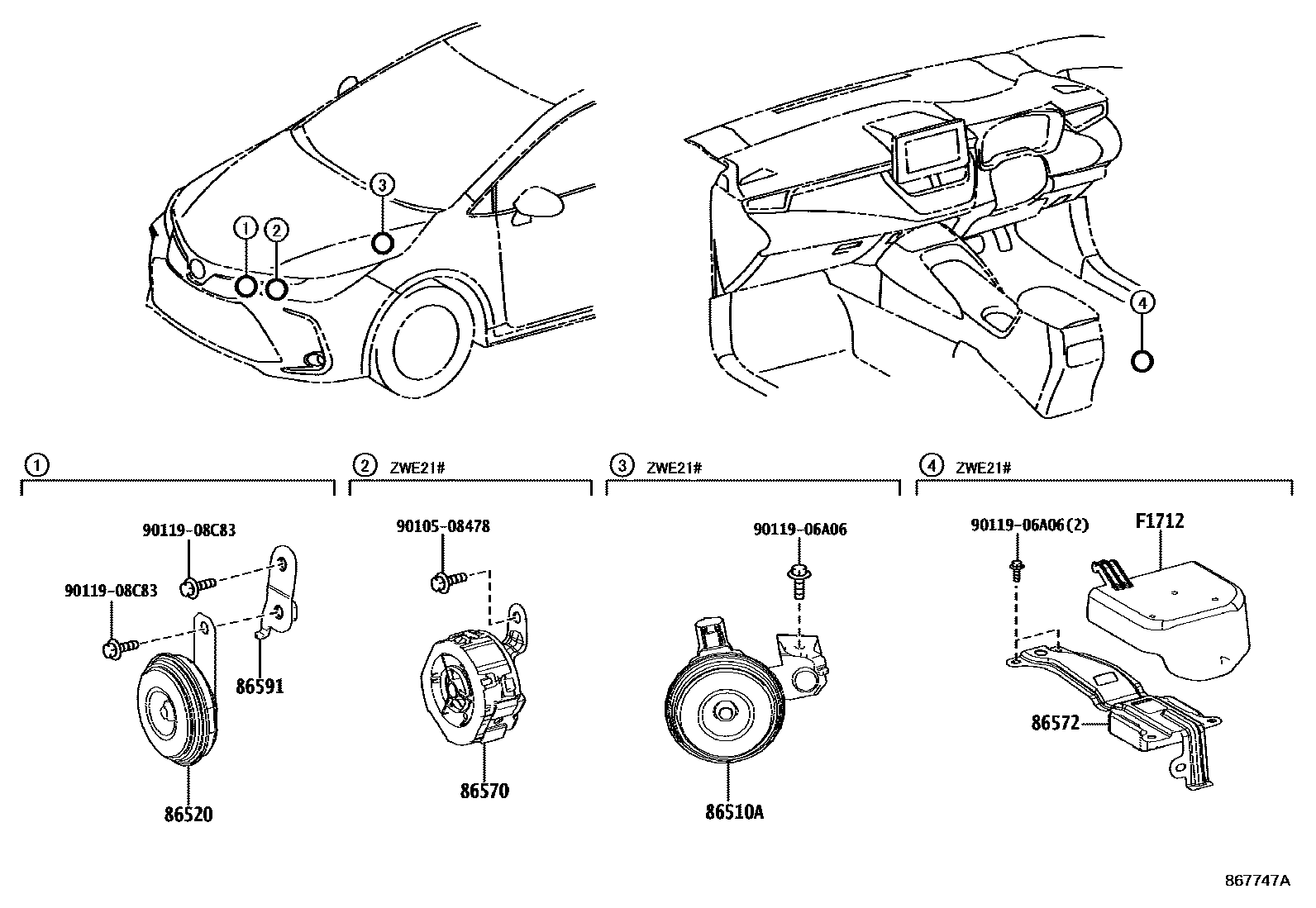

Parts diagram

86510AHORN ASSY, SECURITY

main86560-10020i202210

main86560-47050i201908

86520HORN ASSY, LOW PITCHED

main86520-52230i202304-202504

main86520-68010i202210-202304

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-12030i201908

main86570-12110i202210

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-12070i201908

main86572-12230i202210

main86572-12240i202210

86591BRACKET, HORN

main86591-12040i201908

main86591-12100i202210-202504

F1712COVER, VEHICLE APPROACHING SPEAKER CONTROLLER

mainF171212090i201908

9010508478

main90105-08478

9011906A06

main90119-06A06

9011908C83

main90119-08C83

9 parts on this diagram · 2 diagrams in section

HORN for Toyota COROLLA

This section contains 10 genuine Toyota parts for the HORN system of the Toyota COROLLA. Key components include: HORN ASSY, SECURITY, HORN ASSY, LOW PITCHED, SPEAKER ASSY, VEHICLE APPROACHING, CONTROLLER, VEHICLE APPROACHING SPEAKER, BRACKET, HORN.
