Toyota COROLLA — HORN

86510HORN ASSY, HIGH PITCHED

main86510-12240i198410-198505

DENSO

main86510-12250i198410-198505

MARUKO

main86510-12300i198505-198701

MARUKO

main86510-12301i198701-198704

MARUKO

main86510-12340i198410-198505

COLD SPEC

main86510-12350i198505-198704

DENSO

86520HORN ASSY, LOW PITCHED

main86520-12260i198408-198505

COLD SPEC

main86520-12410i198305-198408

main86520-12450i198505-198701

main86520-12451i198701-198704

86591BRACKET, HORN

main86591-12010i198405-198408

COLD SPEC

main86591-12011i198408-198505

COLD SPEC,LOW PITCHED HORN

8271116190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16190

9011908198

main90119-08198

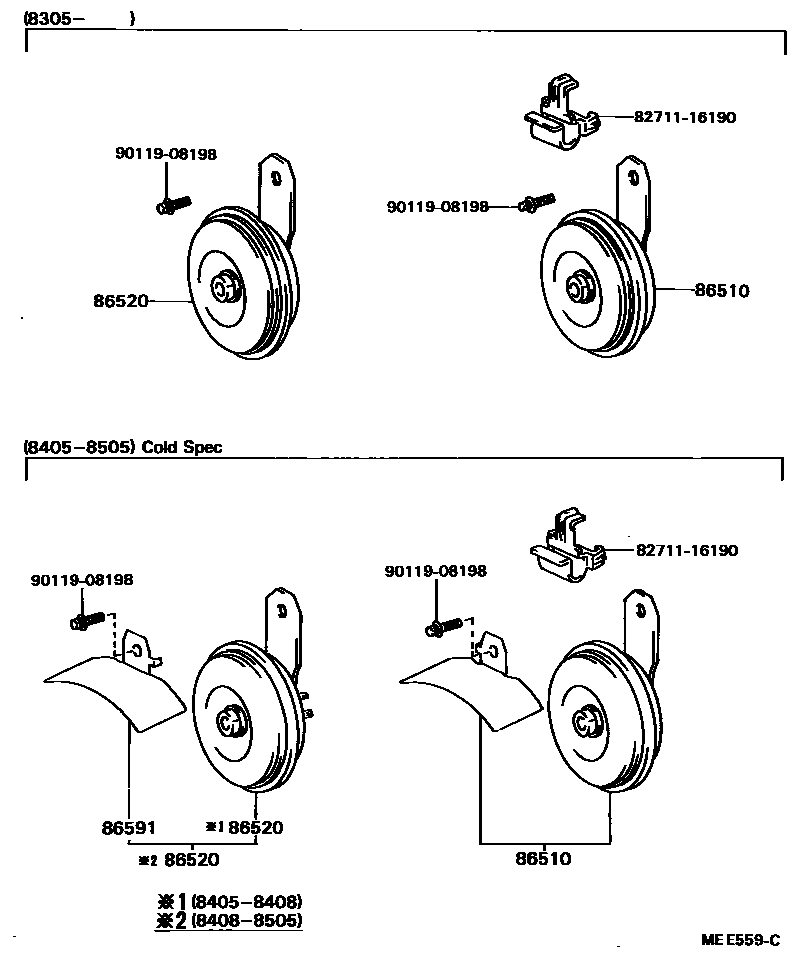

5 parts on this diagram · 1 diagram in section

HORN for Toyota COROLLA

This section contains 5 genuine Toyota parts for the HORN system of the Toyota COROLLA. Key components include: HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED, BRACKET, HORN, WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER).
