Toyota COROLLA — HEATING & AIR CONDITIONING - COMPRESSOR

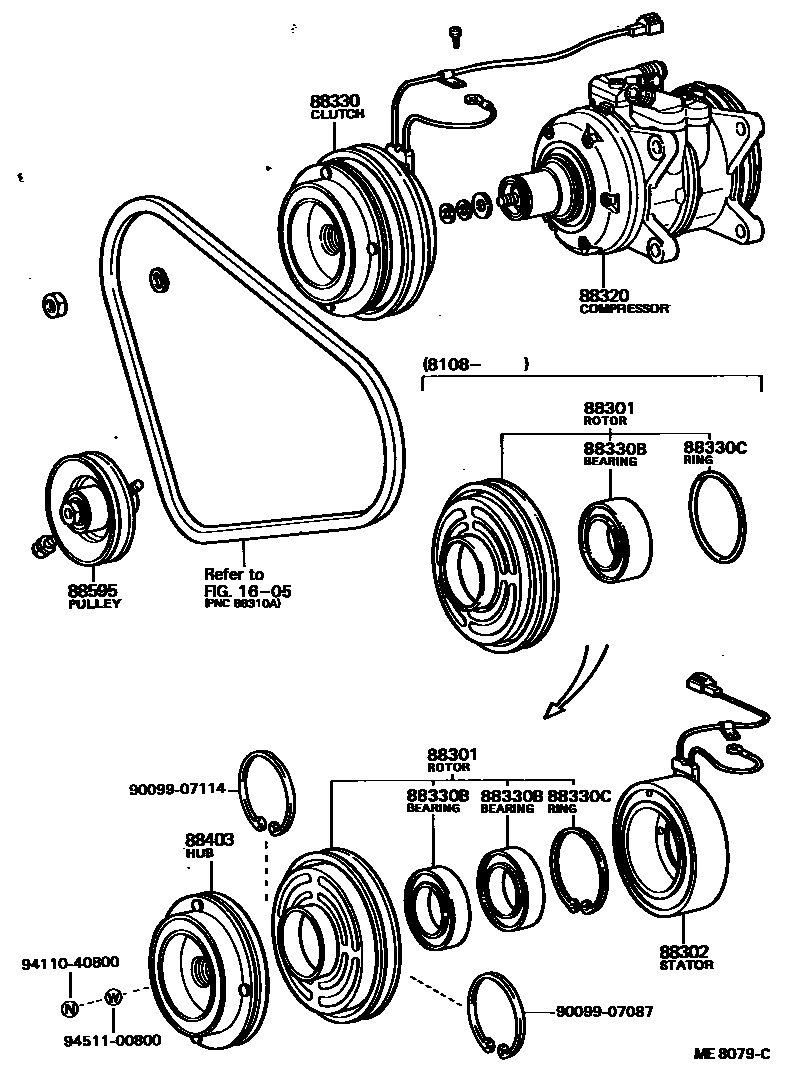

Parts diagram

1605V-BELT

→ Go to FIG 16-05

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12040i197903-198108

main88412-14010i198108-198308

main88412-14020i198108-198707

main88412-20060i197903-198108

main88412-20070i198202-198707

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050i198108-198707

main88411-22040i197903-198108

88320COMPRESSOR ASSY, COOLER

main88320-12180i197903-198108

main88320-12181i198108-198707

main88320-12190i198108-198302

main88320-12200i197903-198108

main88320-12201i198108-198304

main88320-12230i197908-198006

main88320-20350i198202-198707

88330CLUTCH ASSY, MAGNET

main88410-14090i198108-198308

main88410-14100i198108-198707

main88410-14120i198202-198707

main88410-20130i197903-198108

main88410-22060i197903-198108

88330BBEARING, MAGNET CLUTCH

main90099-10117×2i197903-198108

main90099-10133i198108-198707

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07094i197903-198108

main90099-07114i198202-198205

main90099-07118i198205-198707

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14030i198108-198707

main88403-22030i197903-198108

main88403-26030i197903-198108

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-12050i197903-198707

main88440-12060i197903-198205

main88440-12061i198205-198304

main88440-12070i198108-198308

main88440-20090i198202-198707

main88440-30250i197903-198108

9009907087

main90099-07087

9009907114

main90099-07114

9411040800

main94110-40800

9451100800

main94511-00800

13 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota COROLLA

This section contains 28 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota COROLLA. Key components include: V-BELT, FUEL PUMP & PIPE, ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER.
