Toyota COROLLA — HEATING & AIR CONDITIONING - COMPRESSOR

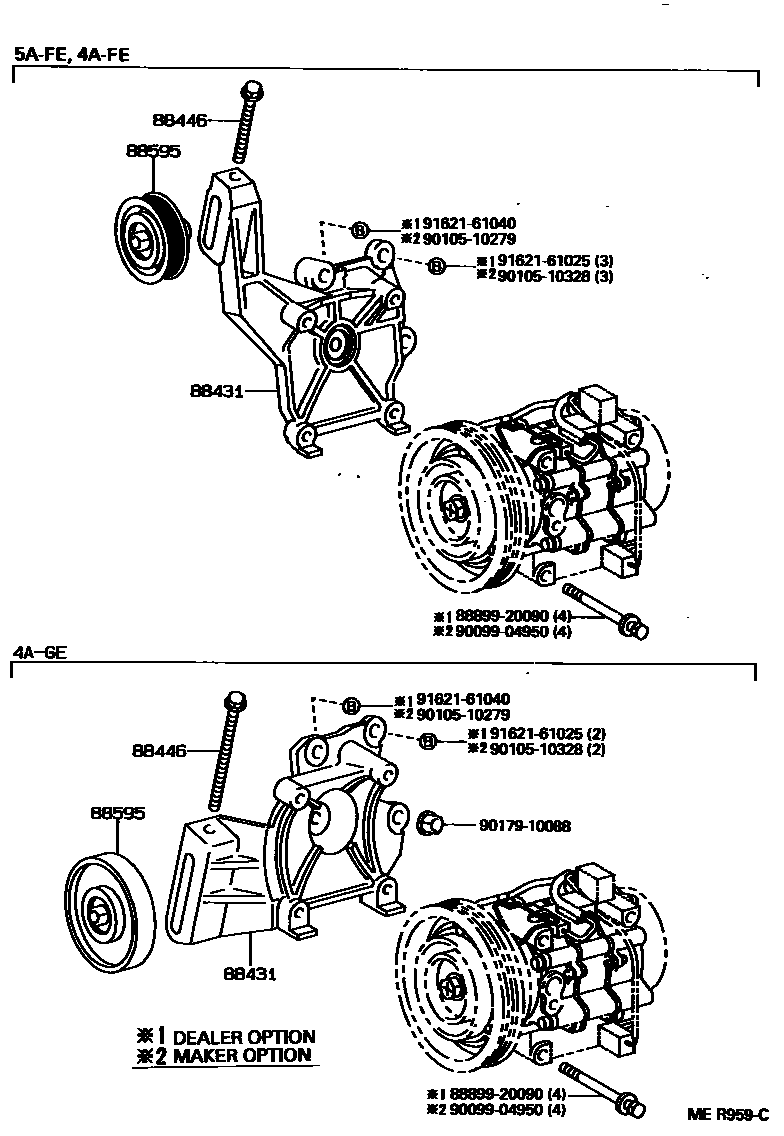

Parts diagram

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-12370i199106-199305

MARK 791

main88431-12390i199106-199305

main88431-12500i199106-199505

main88431-12510i199106-199812

main88431-12511i199812-200206

main88431-12530i199305-200008

main88431-12540i199305-200206

MARK 117

main88431-12560i199505-200206

88446BOLT, IDLE PULLEY

main88446-12020i199106-199305

main88446-12030i199106

main88446-35010i199106-200008

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-12100i199106-199305

main88440-12170i199106-199508

main88440-12200i199305-200008

main88440-12210i199402-199508

main88440-12230i199508-200206

main88440-17010i199106-199505

main88440-20160i199505-200203

main88440-20170i200008-200206

main88440-20170i199804-200008

main88440-32030i199106-199305

8889920090COVER, EVAPORATOR

main88899-20090

9009904950

main90099-04950

9010510279

main90105-10279

9010510328

main90105-10328

9017910088

main90179-10088

9162161025

main91621-61025

9162161040

main91621-61040

10 parts on this diagram · 3 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota COROLLA

This section contains 32 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota COROLLA. Key components include: HEATING & AIR CONDITIONING - COOLER PIPING, ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH).
