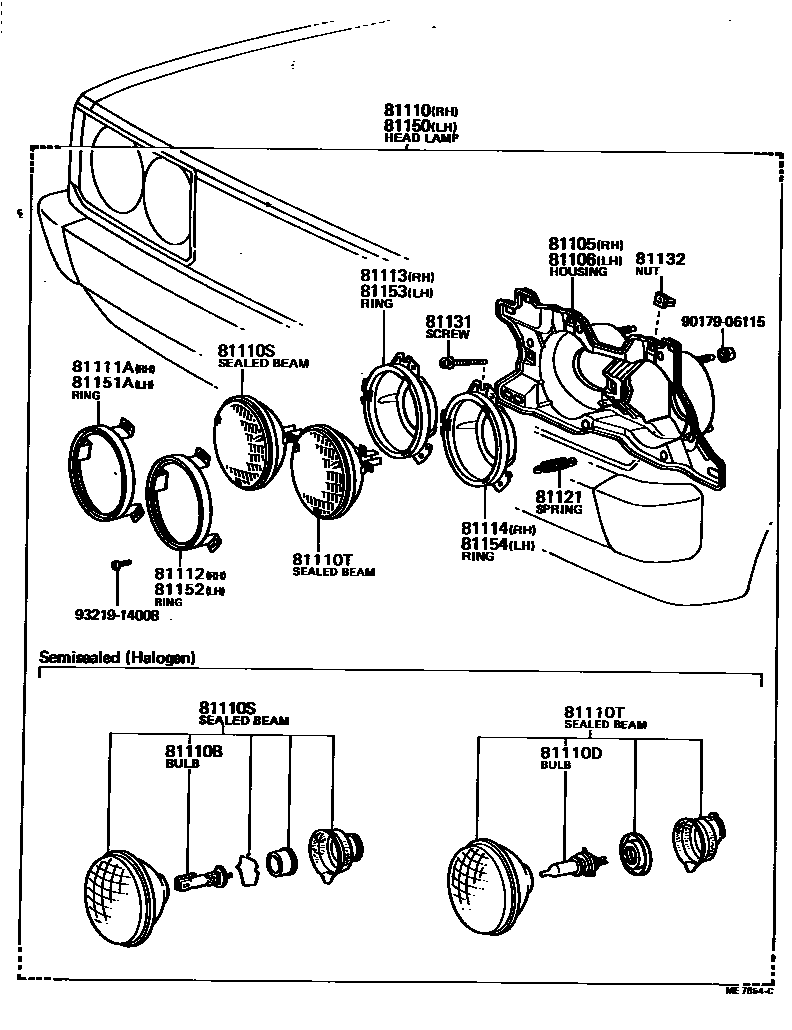

Toyota COROLLA — HEADLAMP

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-12550i197903-198108

KOITO

main81105-12560i197903-198108

IKI

main81105-13060i198308-198508

main81105-13080i198508-198707

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-12480i197903-198108

KOITO

main81106-12490i197903-198108

IKI

main81106-13060i198308-198508

main81106-13080i198508-198707

81110HEADLAMP ASSY, RH

main81110-13080i198508-198707

main81110-13090i198508-198707

HALOGEN

main81110-80021i197903-198108

KOITO

main81110-80022i197903-198108

IKI

main81110-80023i197903-198108

KOITO

main81110-80024i197903-198108

IKI

main81110-80025i197903-198108

SEMI-SEALED TYPE,HALOGEN

main81110-80048i197908-198108

SEMI-SEALED TYPE,HALOGEN

main81110-80154i198108-198308

KOITO

main81110-80155i198108-198308

IKI

main81110-80175i198108-198304

main81110-80176i198108-198304

HALOGEN

main81110-80177i198108-198304

main81110-80178i198108-198304

HALOGEN

main81110-80203i198205-198308

SEMI-SEALED TYPE,HALOGEN

main81110-80338i198308-198508

main81110-80339i198308-198508

HALOGEN

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2i198108-198308

main90981-13017×2i197908-198108

main90981-13022×2i198108-198304

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13015×2i197908-198108

81110SSEALED BEAM UNIT, NO.1

main90981-02011×2i197903-198108

main90981-02039×2i197903-198108

main90981-02042×2i197908-198108

HALOGEN

main90981-04001×2i197903-198108

main90981-04002×2i198108-198308

12V 65/55W,IKI

main90981-04010×2i198205-198308

main90981-04027×2i198508-198707

main90981-04029×2i198508-198707

81110TSEALED BEAM UNIT, NO.2

main90981-02012×2i197903-198108

main90981-02040×2i197903-198108

main90981-02043×2i197908-198108

HALOGEN

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-14261i197903-198108

IKI

main81111-16010i197903-198108

IKI

main81111-16020i198108-198707

KOITO

main81111-20280i197903-198108

KOITO

81112RING, SEALED BEAM RETAINING, NO.2 RH

main81111-14261i197903-198108

IKI

main81111-20280i197903-198108

KOITO

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-10310i198308-198707

main81113-12571i198108-198308

KOITO

main81113-12581i198108-198308

IKI

main81113-14260i197903-198108

IKI

main81113-20100i197903-198108

KOITO

main81153-16010i197903-198108

IKI

main81153-16020i197903-198108

KOITO

81114RING, SEALED BEAM MOUNTING, NO.2 RH

main81154-14260i197903-198108

IKI

main81154-20100i197903-198108

KOITO

81121SPRING, HEADLAMP TENSION

main81121-12570×2i198108-198308

KOITO

main81121-12581×2i198108-198308

IKI

main81121-16010×2i197903-198108

IKI

main81121-16020×2i197903-198108

KOITO

main81121-20100×4i197903-198108

KOITO

main90506-18018×4i197903-198108

IKI

81131SCREW, HEADLAMP ADJUSTING

main81131-10031×4i198108-198707

KOITO

main81131-16010×4i198108-198308

IKI

main81131-20043×8i197903-198108

KOITO

main81131-20053×8i197903-198108

IKI

81132NUT, HEADLAMP SELF LOCKING

main81132-20380×8i197903-198108

IKI

main90189-05013×8i197903-198008

main90189-05015×8i198008-198108

81150HEADLAMP ASSY, LH

main81150-13080i198508-198707

main81150-13090i198508-198707

HALOGEN

main81150-80021i197903-198108

KOITO

main81150-80022i197903-198108

IKI

main81150-80023i197903-198108

KOITO

main81150-80024i197903-198108

IKI

main81150-80025i197903-198108

SEMI-SEALED TYPE,HALOGEN

main81150-80045i197908-198108

SEMI-SEALED TYPE,HALOGEN

main81150-80151i198108-198308

KOITO

main81150-80152i198108-198308

IKI

main81150-80172i198108-198304

main81150-80173i198108-198304

HALOGEN

main81150-80174i198108-198304

main81150-80175i198108-198304

HALOGEN

main81150-80200i198205-198308

SEMI-SEALED TYPE,HALOGEN

main81150-80335i198308-198508

main81150-80336i198308-198508

HALOGEN

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-14261i197903-198108

IKI

main81111-16010i198108-198308

IKI

main81111-16020i197903-198108

KOITO

main81111-20280i197903-198108

KOITO

81152RING, SEALED BEAM RETAINING, NO.2 LH

main81111-14261i197903-198108

IKI

main81111-20280i197903-198108

KOITO

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81113-16010i197903-198108

IKI

main81113-16020i197903-198108

KOITO

main81153-10250i198308-198707

main81153-12501i198108-198308

KOITO

main81153-12511i198108-198308

IKI

main81153-14260i197903-198108

IKI

main81153-20100i197903-198108

KOITO

81154RING, SEALED BEAM MOUNTING, NO.2 LH

main81114-14260i197903-198108

IKI

main81114-20100i197903-198108

KOITO

9017906115

main90179-06115

9321914008

main93219-14008

21 parts on this diagram · 5 diagrams in section

HEADLAMP for Toyota COROLLA

This section contains 33 genuine Toyota parts for the HEADLAMP system of the Toyota COROLLA. Key components include: HOUSING SUB-ASSY, HEADLAMP, RH, BRACKET SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, BRACKET SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH.
