Toyota COROLLA — HEADLAMP

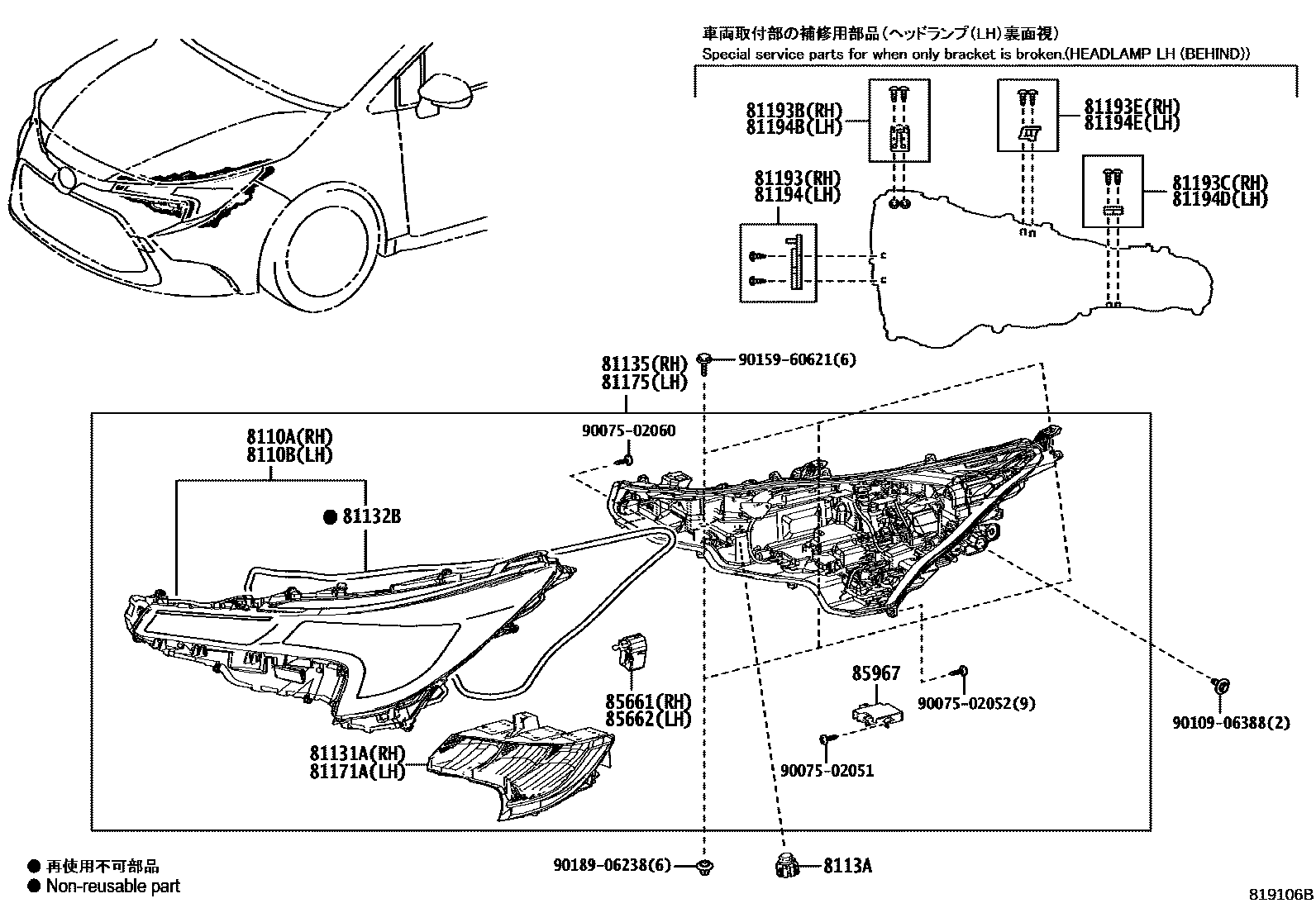

Parts diagram
8110ALENS SUB-ASSY, HEADLAMP, RH
main8110A-12M40i202210
main8110A-12M50i201908
main8110A-12N30i202210
8110BLENS SUB-ASSY, HEADLAMP, LH
main8110B-12G90i202210
main8110B-12K10i201908
main8110B-12N30i202210-202504
81131AUNIT, HEADLAMP, RH
main81130-12L10i201908
main81130-12M10i202210
main81130-12N30i202210-202504
81132BGASKET, HEADLAMP LENS
main81132-48C30×2i201908
81135UNIT ASSY, HEADLAMP, RH
main81105-12M40i201908
main81105-12M50i201908
main81105-12N40i202210
8113ALED, HEADLAMP FRONT TURN SIGNAL
main81536-12D30×2i201908
81171AUNIT, HEADLAMP, LH
main81170-12L10i201908
main81170-12M10i201908
main81170-12N30i202210-202504
81175UNIT ASSY, HEADLAMP, LH
main81106-12G90i202210
main81106-12K10i201908
main81106-12N40i202210-202504
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
main81193-12250i201908
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
main81193-12260i202210-202504
81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH
main81193-12270i201908
81193ERETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3
main81193-12280i201908
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
main81194-12250i201908
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
main81194-12260i201908
81194DRETAINER, LH HEADLAMP PROTECTOR, UPPER LH
main81194-12270i202210-202504
81194ERETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3
main81194-12280i202210-202504
85661MOTOR, HEADLAMP LEVELING, RH
main85661-48050i202210
main85661-52030i202210
85662MOTOR, HEADLAMP LEVELING, LH
main85661-48050i202210-202504
main85661-52030i202210
85967COMPUTER, LIGHT CONTROL
main85967-12020×2i201908
main85967-12050×2i201908
9007502051
main90075-02051
9007502052
main90075-02052
9007502060
main90075-02060
9010906388
main90109-06388
9015960621
main90159-60621
9018906238
main90189-06238

25 parts on this diagram · 3 diagrams in section

HEADLAMP for Toyota COROLLA

This section contains 33 genuine Toyota parts for the HEADLAMP system of the Toyota COROLLA. Key components include: LENS SUB-ASSY, HEADLAMP, RH, LENS SUB-ASSY, HEADLAMP, LH, BRACKET, HEADLAMP, RH, UNIT, HEADLAMP CLEARANCE LED, NO.1 RH, UNIT, HEADLAMP, RH.
