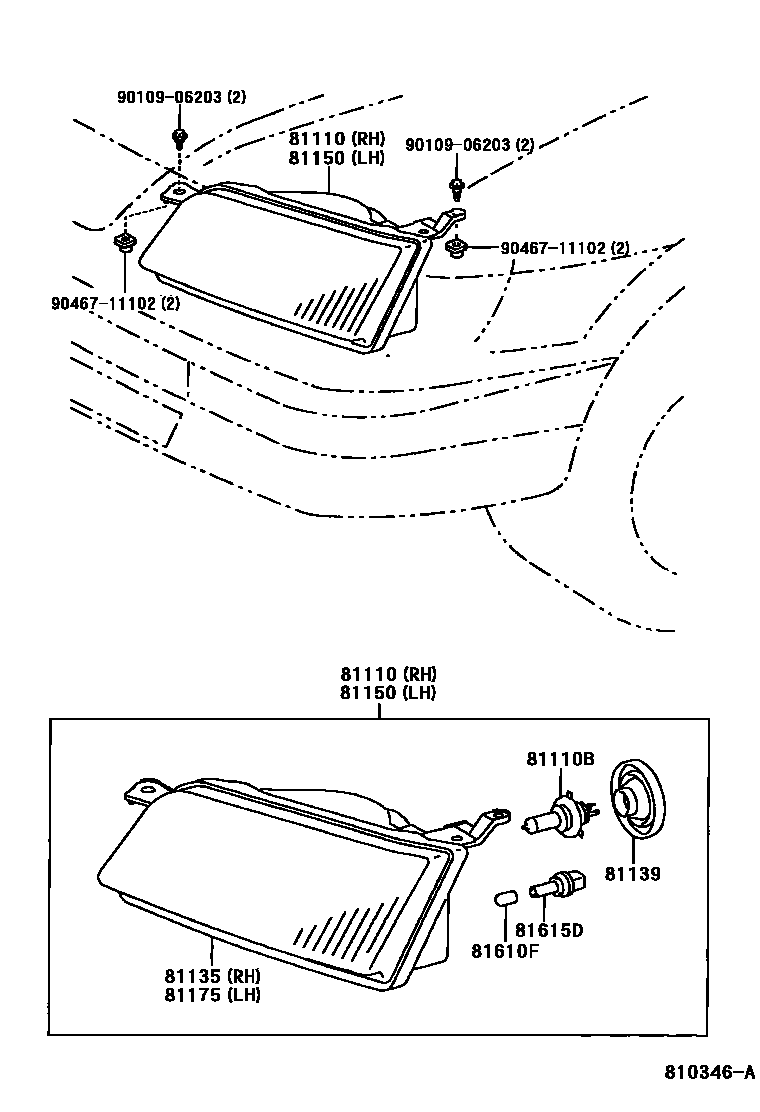

Toyota COROLLA — HEADLAMP

81110HEADLAMP ASSY, RH

main81110-1E250i199505-199704

main81110-1E450i199704-200008

81110BBULB(FOR HEADLAMP, NO.1)

main90981-22004×2i199505-199704

81135UNIT ASSY, HEADLAMP, RH

main81130-1E250i199505-199704

main81130-1E450i199704-199904

main81130-1E570i199904-200008

81139COVER, HEADLAMP SOCKET

main90075-65002×2i199505-199704

81150HEADLAMP ASSY, LH

main81150-1A520i199505-199704

main81150-1E320i199704-200008

81175UNIT ASSY, HEADLAMP, LH

main81170-1A520i199505-199704

main81170-1E320i199704-199904

main81170-1E450i199904-200008

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i199505-199704

81615DSOCKET, CLEARANCE LAMP

main90075-60004×2i199505-199704

9010906203

main90109-06203

9046711102

main90467-11102

10 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota COROLLA

This section contains 10 genuine Toyota parts for the HEADLAMP system of the Toyota COROLLA. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP SOCKET, HEADLAMP ASSY, LH.
