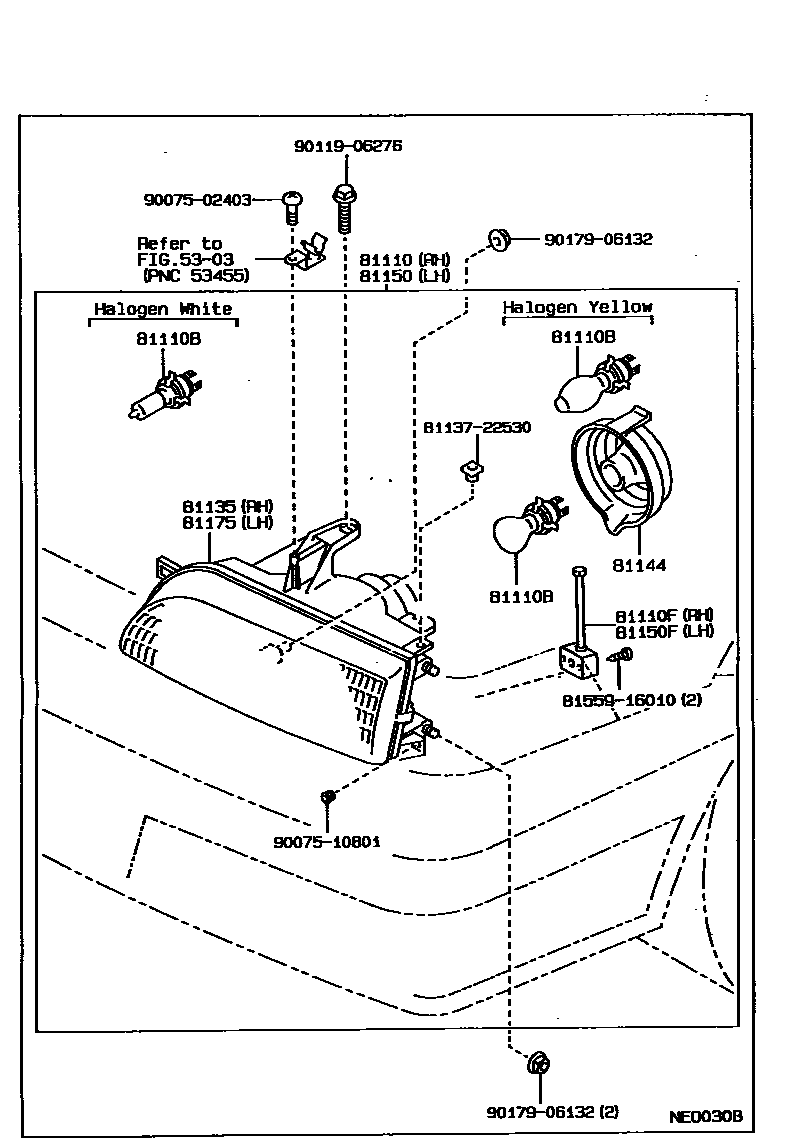

Toyota COROLLA — HEADLAMP
5303HOOD LOCK & HINGE
81110HEADLAMP ASSY, RH
81110BBULB(FOR HEADLAMP, NO.1)
81110FGEAR UNIT ASSY, RH NO.1
81135UNIT ASSY, HEADLAMP, RH
81144COVER, HEADLAMP, NO.1
81150HEADLAMP ASSY, LH
81150FGEAR UNIT ASSY, LH NO.1
81175UNIT ASSY, HEADLAMP, LH
8113722530PROTECTOR, HEADLAMP, NO.2 RH
main81137-22530
8155916010MOULDING, REAR COMBINATION LAMP, RH
main81559-16010
9007502403
main90075-02403
9007510801
main90075-10801
9011906276
main90119-06276
9017906132
main90179-06132
15 parts on this diagram · 3 diagrams in section
HEADLAMP for Toyota COROLLA
This section contains 26 genuine Toyota parts for the HEADLAMP system of the Toyota COROLLA. Key components include: HOOD LOCK & HINGE, HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1).
