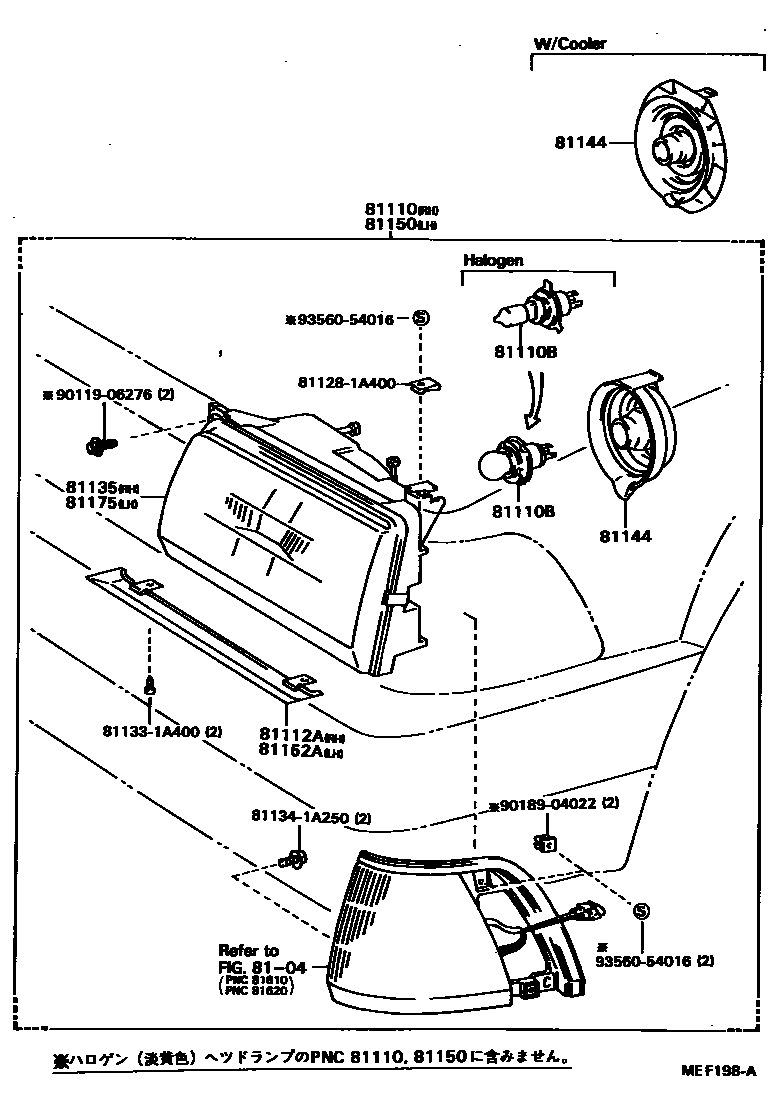

Toyota COROLLA — HEADLAMP

8104FRONT CLEARANCE LAMP

→ Go to FIG 81-04

81110HEADLAMP ASSY, RH

main81110-1A121i198505-198704

main81110-1A131i198505-198704

HALOGEN(WHITE)

main81110-1A540i198505-198704

HALOGEN(YELLOW)

main81110-1A560i198505-198704

HALOGEN(YELLOW)

main81110-80309i198305-198505

main81110-80310i198305-198505

HALOGEN

main81110-80439i198410-198704

main81110-80440i198410-198704

HALOGEN(WHITE)

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2i198305-198704

main90981-13016×2i198505-198704

main90981-13022×2i198305-198704

81112ARIM, HEADLAMP, RH

main81112-1A130i198305-198505

main81112-1A400i198410-198704

81135UNIT ASSY, HEADLAMP, RH

main81130-1A121i198505-198704

main81130-1A131i198505-198704

HALOGEN

main81135-1A120i198305-198505

main81135-1A130i198305-198505

HALOGEN

main81135-1A400i198410-198704

main81135-1A410i198410-198704

HALOGEN

81144COVER, HEADLAMP, NO.1

main81139-1A120i198305-198704

W/COOLER

main81139-20730×2i198305-198704

81150HEADLAMP ASSY, LH

main81150-1A071i198505-198704

main81150-1A081i198505-198704

HALOGEN(WHITE)

main81150-1A370i198505-198704

HALOGEN(YELLOW)

main81150-1A390i198505-198704

HALOGEN(YELLOW)

main81150-80306i198305-198505

main81150-80307i198305-198505

HALOGEN

main81150-80431i198410-198704

main81150-80432i198410-198704

HALOGEN(WHITE)

81152ARIM, HEADLAMP, LH

main81152-1A080i198305-198505

main81152-1A300i198410-198704

81175UNIT ASSY, HEADLAMP, LH

main81170-1A071i198505-198704

main81170-1A081i198505-198704

HALOGEN

main81175-1A070i198305-198505

main81175-1A080i198305-198505

HALOGEN

main81175-1A300i198410-198704

main81175-1A310i198410-198704

HALOGEN

811281A400NUT, HEADLAMP

main81128-1A400

811331A400UNIT ASSY, FOG, RH

main81133-1A400

811341A250GASKET, HEADLAMP

main81134-1A250

9011906276

main90119-06276

9018904022

main90189-04022

9356054016

main93560-54016

15 parts on this diagram · 3 diagrams in section

HEADLAMP for Toyota COROLLA

This section contains 19 genuine Toyota parts for the HEADLAMP system of the Toyota COROLLA. Key components include: FRONT CLEARANCE LAMP, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), RIM, HEADLAMP, RH, NUT, HEADLAMP SELF LOCKING.
