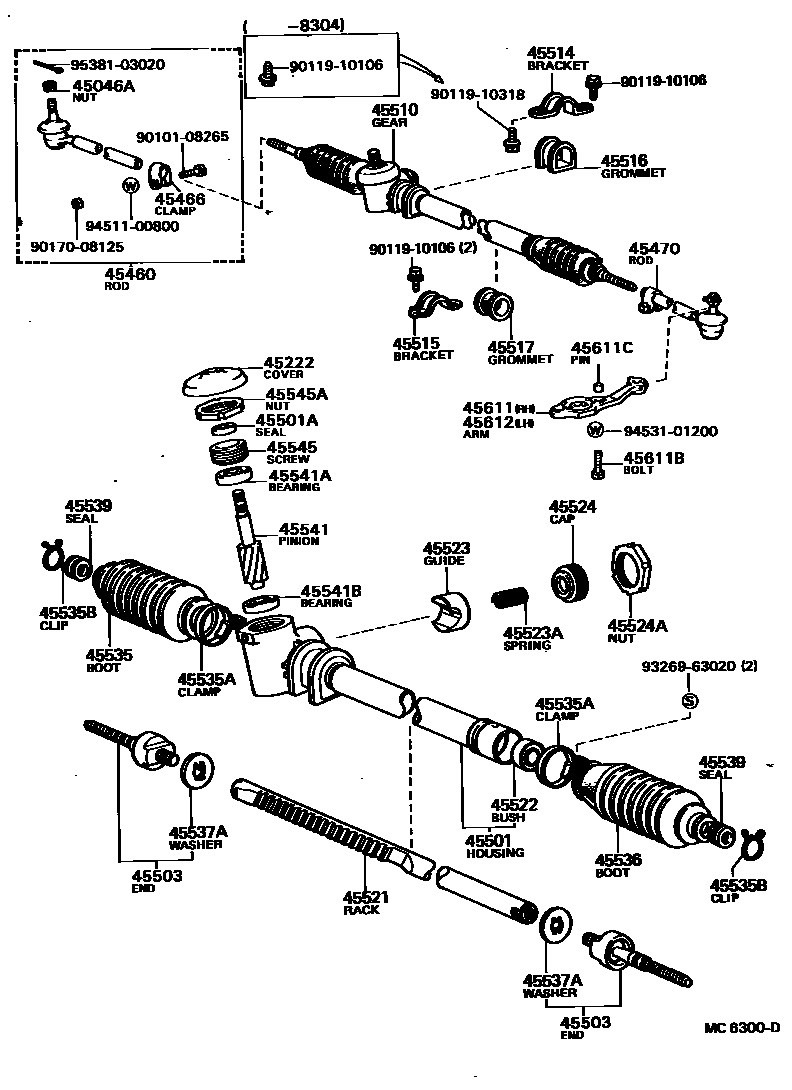

Toyota COROLLA — FRONT STEERING GEAR & LINK
45046END SUB-ASSY, TIE ROD, RH
45046ANUT, CASTLE(FOR TIE ROD END)
45222COVER, STEERING GEAR DUST
45460ROD ASSY, TIE, RH
45466CLAMP, TIE ROD END
45470ROD ASSY, TIE, LH
45501HOUSING SUB-ASSY, STEERING RACK
45501ASEAL, TYPE T OIL(FOR STEERING RACK HOUSING)
45503END SUB-ASSY, STEERING RACK
45510GEAR ASSY, STEERING
45514BRACKET, STEERING RACK HOUSING, NO.1
45515BRACKET, STEERING RACK HOUSING, NO.2
W/PS
45516GROMMET, STEERING RACK HOUSING, NO.1
45517GROMMET, STEERING RACK HOUSING, NO.2
W/PS
45523GUIDE, RACK(FOR STEERING GEAR)
45523ASPRING(FOR STEERING GEAR RACK GUIDE)
45524CAP, STEERING RACK GUIDE SPRING
45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)
45535BOOT, STEERING RACK, NO.1
45535ACLAMP(FOR STEERING RACK BOOT)
45535BCLIP(FOR STEERING RACK BOOT)
45536BOOT, STEERING RACK, NO.2
45537AWASHER, CLAW(FOR STEERING RACK END LOCK)
45539GUIDE, REAR STEERING CONTROL CABLE, NO.1
45541ABEARING, RADIAL BALL(FOR STEERING PINION UPPER)
45541BBEARING, RADIAL BALL(FOR STEERING PINION LOWER)
ID=13
ID=15
45545SCREW, PINION BEARING ADJUSTING
45545ANUT(FOR PINION BEARING ADJUSTING SCREW)
45611ARM, STEERING KNUCKLE, RH
W/POWER STEERING
45611BBOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
45611CPIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
45612ARM, STEERING KNUCKLE, LH
W/POWER STEERING
9010108265
main90101-08265
9011910106
main90119-10106
9011910318
main90119-10318
9017008125
main90170-08125
9326963020
main93269-63020
9451100800
main94511-00800
9453101200
main94531-01200
9538103020
main95381-03020
43 parts on this diagram · 8 diagrams in section
FRONT STEERING GEAR & LINK for Toyota COROLLA
This section contains 169 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota COROLLA. Key components include: WARM KIT, POWER STEERING, GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL), GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION), GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE, GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE.
