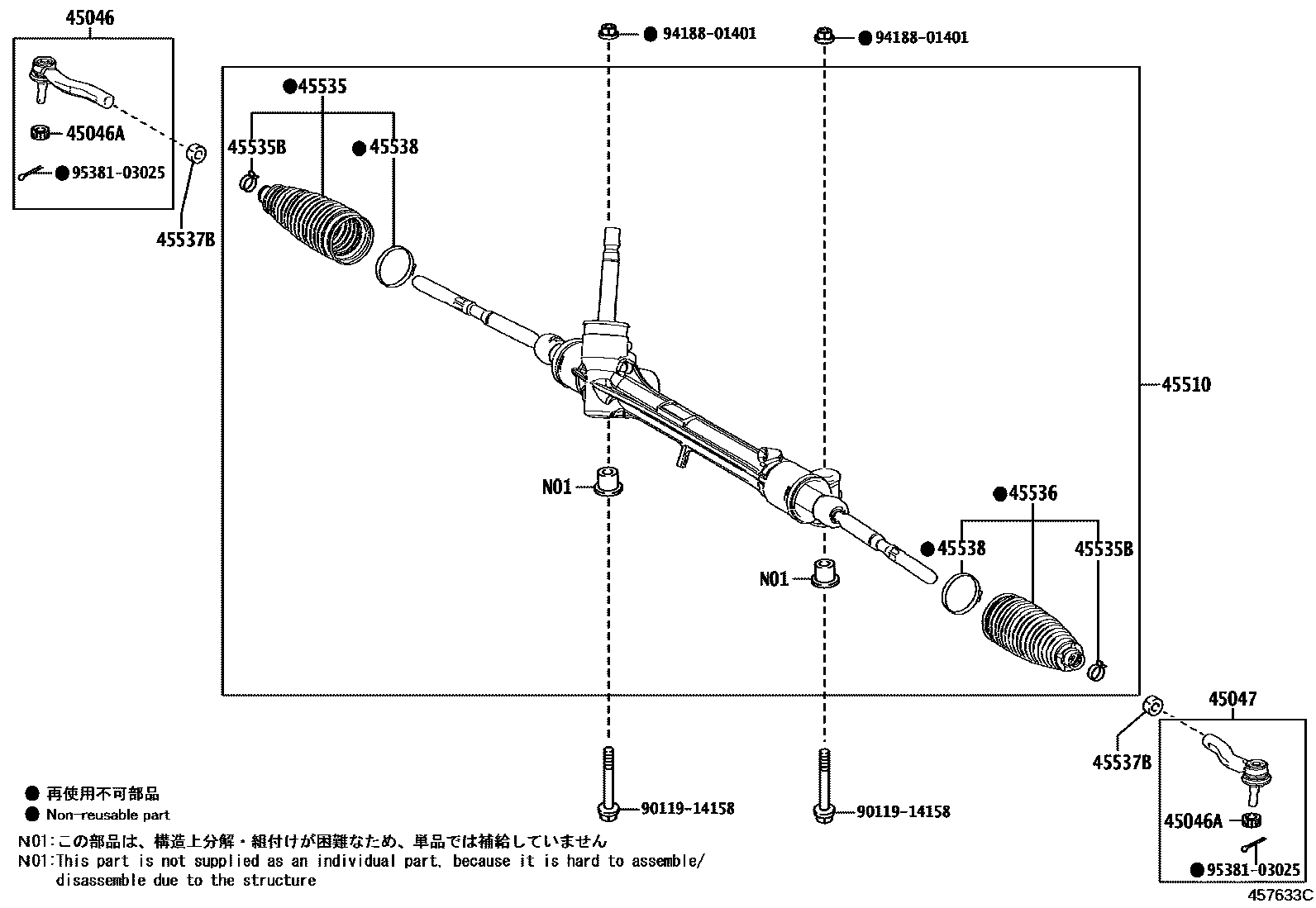

Toyota COROLLA — FRONT STEERING GEAR & LINK
45046END SUB-ASSY, TIE ROD, RH
45046ANUT, CASTLE(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
45510GEAR ASSY, STEERING
main45510-47150supersedes 45510-47140iMZEA12,NRE210,ZRE212,ZWE211,214..G,HBDS,HBDWB,S,WB; ZRE212,ZWE211,214..GX,HBDGX201908
45535BOOT, STEERING RACK, NO.1
45535BCLIP(FOR STEERING RACK BOOT)
45536BOOT, STEERING RACK, NO.2
45537BNUT, RACK END LOCK
45538RETAINER, STEERING RACK BOOT
9011914158
main90119-14158
9418801401
main94188-01401
9538103025
main95381-03025
12 parts on this diagram · 1 diagram in section
FRONT STEERING GEAR & LINK for Toyota COROLLA
This section contains 12 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota COROLLA. Key components include: END SUB-ASSY, TIE ROD, RH, NUT, CASTLE(FOR TIE ROD END), END SUB-ASSY, TIE ROD, LH, GEAR ASSY, STEERING, BOOT, STEERING RACK, NO.1.
