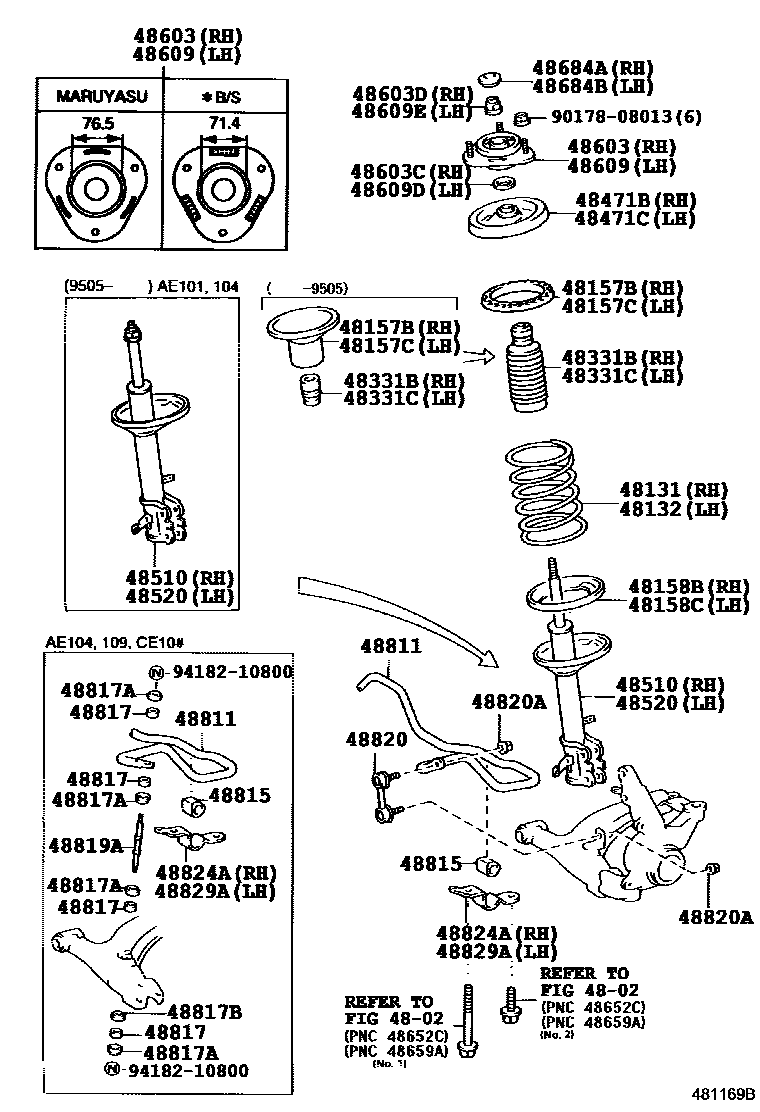

Toyota COROLLA — FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1��(�-��-����� ��������)

4802

48131SPRING, FRONT COIL, RH

main48131-1K160iAE101..3DS..5F..GT199205-199505

main48131-1K380iEE101..4F199106-199505

main48131-1K400iAE101..5F..SJ199205-199505

main48131-1K490iCE105,109;CE102,106,107,108..4FC199109

main48131-1K540iEE101..3FC199106-199505

main48131-1K620iAE100..5F..(DX,LX,XE)199106-199505

main48131-1K640iAE100..WG..5F;CE100..5F..(DX,LX);AE100..ATM..(DX,LX,XE)199106-199705

main48131-1K720iAE100..WG..4FC;AE100..5F..SEL199106-199705

main48131-1K740iAE104..WG..5F;AE100..4FC..SEL;CE100..4FC..(DX,LX);CE100..5F..(G,LT,SEL,XE)199106-199705

main48131-1K760iAE104..WG..4FC;CE100..4FC..(G,LT,SEL,XE)199106-199705

main48131-1K790iAE101..4FC..SJ;AE101..5F..SEG199106-199505

main48131-1K810iAE101..4FC..SEG199106-199505

main48131-1K890iAE101..3DS..5F..GT;AE101,EE102,103,104,106,107,108..(4DS,V,WG)..ATM..(CTD,DX,DXJ,GL,GT,L)199106

main48131-1L020iAE104..5F..(LX,XE)199109-199505

main48131-1L050iAE101..3DS..4FC..GT;AE104,CE102,106,107,108..5F..(CTD,DX,DXJ,GL,L,SEL)199109

main48131-1L100iAE104..4FC..XE199109-199505

main48131-1L120iAE104..4FC..SEL199109-199505

main48131-1L180iCE104..LX,XE199109-199309

main48131-1L200iAE101,EE102,103,104,106,107,108..(4DS,V,WG)..MTM..(CTD,DX,DXJ,GL,GT,L)199106

main48131-1L250iCE104..SEL199109-199309

main48131-1L410iAE101..3DS..4FC..GT199205-199505

main48131-1L510iCE104..SEL,XE199309-199505

main48131-1L570iAE101..6F199705-200008

main48131-1L590iAE100..4FC199705-200008

main48131-1L690iAE109..5F199605

main48131-1L710iAE109..4FC199605

main48131-1L730iAE101..5F199605-199705

main48131-1L850iAE101..4FC199605-199705

main48131-1L890iCE100..5F199705-199804

main48131-1N140iCE101..5F;CE100..4FC199705-200008

main48131-1N170iAE104..5F199705-200008

main48131-1N180iAE100..5F;AE101..4FC199705-200008

main48131-1N240iAE104..4FC199705-200008

main48131-1N330iCE101..4FC199804-200008

48132SPRING, FRONT COIL, LH

main48131-1K170iAE101..3DS..4FC..GT199205-199505

main48131-1K380iEE101..3FC199106-199505

main48131-1K400iAE101..4FC..SJ;AE101..5F..SEG199106-199505

main48131-1K490iCE105,109;CE102,106,107,108..4FC199704

main48131-1K530iEE101..4F199106-199505

main48131-1K540iAE101..5F..SJ199205-199505

main48131-1K600iAE100..5F..(DX,LX,XE)199106-199505

main48131-1K620iAE100..WG..5F;CE100..5F..(DX,LX);AE100..ATM..(DX,LX,XE)199106-199705

main48131-1K640iAE100..WG..4FC;AE100..5F..SEL199106-199705

main48131-1K690iAE101..3DS..5F..GT199205-199505

main48131-1K720iAE104..WG..5F;AE100..4FC..SEL;CE100..4FC..(DX,LX);CE100..5F..(G,LT,SEL,XE)199106-199705

main48131-1K740iAE104..4FC..LT;CE100..4FC..(G,LT,SEL,XE)199106-199705

main48131-1K760iAE104..4FC..G199505-199705

main48131-1K790iAE101..4FC..SEG199106-199505

main48131-1K870iAE101,EE102,103,104,106,107,108..(4DS,V,WG)..MTM..(CTD,DX,DXJ,GL,GT,L)199106-199704

main48131-1K890iAE104..5F..(LX,XE)199109-199505

main48131-1L020iAE101..3DS..4FC..GT;AE104,CE106,108..5F..(CTD,DX,GL,L,SEL)199109-199704

main48131-1L050iCE102,106,107,108..5F199704

main48131-1L080iAE104..4FC..XE199109-199505

main48131-1L100iAE104..4FC..SEL199109-199505

main48131-1L160iCE104..LX,XE199109-199309

main48131-1L180iCE104..LX199309-199505

main48131-1L200iEE10#..MTM199704

main48131-1L250iCE104..SEL,XE199309-199505

main48131-1L570iAE101..6F199705-200008

main48131-1L590iAE100..4FC199705-200008

main48131-1L690iAE109..5F199605

main48131-1L710iAE109..4FC199605

main48131-1L730iAE101..5F199605-199705

main48131-1L850iAE101..4FC199605-199705

main48131-1L890iCE100..5F199705-199804

main48131-1N140iCE101..5F;CE100..4FC199705-200008

main48131-1N170iAE104..5F199705-200008

main48131-1N180iAE100..5F;AE101..4FC199705-200008

main48131-1N240iAE104..4FC199705-200008

main48131-1N330iCE101..4FC199804-200008

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-12060iAE10#,CE10#,EE10#199106-199505

main48157-12070iAE10#,CE10#,EE10#199505-200206

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-12060iAE10#,CE10#,EE10#199106-199505

main48157-12070iAE10#,CE10#,EE10#199505-200206

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-12030iAE10#,CE10#,EE10#199106

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-12030iAE10#,CE10#,EE10#199106

48331BBUMPER, FRONT SPRING, RH

main48331-12120iAE100,EE10#199106-199505

main48331-12130iAE101,104,CE10#199106-199505

main48331-12140iAE100,EE10#199505-200206

main48331-12150iAE101,104,109,CE10#199505-200206

48331CBUMPER, FRONT SPRING, LH

main48331-12120iAE100,EE10#199106-199505

main48331-12130iAE101,104,CE10#199106-199505

main48331-12140iAE100,EE10#199505-200206

main48331-12150iAE101,104,109,CE10#199505-200206

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-01020iAE104,CE100199505-199508

main48044-12090iAE10#,CE10#,EE10#199106

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-01020iAE10#,CE10#,EE10#199508

main48044-12090iAE10#,CE10#,EE10#199106

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-12750iAE100,EE10#199106

main48510-12770iAE101,CE100,106,108..CTD,DX,GL,L,LX,SEG,SEL,XE199106-199205

main48510-12780iAE101..GT199106-199205

main48510-12810iAE104,109,CE104,109..4DS,V199109-199704

sub48510-87682

main48510-12880iAE101..GT199205-199505

sub48510-87684

main48510-19265iAE101..3DS..GT199205-199505

sub48510-19755

main48510-19445iAE101199605-199805

sub48510-80235

main48510-19455iAE104199505-199705

sub48510-80233

main48510-19775iAE104199705-199712

sub48510-80234

main48510-19785iAE104,109,CE105,109199712-199805

sub48510-80234

main48510-1A010iAE101,CE100,101,102,106,107,108..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE199205-199805

sub48510-80232

main48510-87688iCE101,102,107199805-199812

main48510-87689iAE101199805-199812

main48510-87692iAE104,109,CE105199805-199812

main48510-87697iCE101,102,107199812

sub48510-80232

main48510-87699iAE101199812-200008

sub48510-80235

main48510-87703iAE104,109,CE105199812

sub48510-80234

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-12630iAE100,EE10#199106

main48520-12650iAE101,CE100,106,108..CTD,DX,GL,L,LX,SEG,SEL,XE199106-199205

main48520-12660iAE101..GT199106-199205

main48520-12690iAE104,109,CE104,109..4DS,V199109-199704

sub48520-49175

main48520-12750iAE101..GT199205-199505

sub48520-49195

main48520-12770iAE101,CE100,101,102,106,107,108..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE199205-199805

sub48520-80055

main48520-19025iAE101..3DS..GT199205-199505

sub48520-19435

main48520-19165iAE101199605-199805

sub48520-80057

main48520-19175iAE104199505-199705

sub48520-80056

main48520-19455iAE104199705-199712

sub48520-80054

main48520-19465iAE109,CE109199704-199712

sub48520-80054

main48520-49235iCE101,102,107199805-199812

main48520-49236iCE101,102,107199812

sub48520-80055

main48520-49245iAE101199805-199812

main48520-49246iAE101199812-200008

sub48520-80057

main48520-49275iAE104,109,CE105199805-199812

main48520-49276iAE104,109,CE105199812

sub48520-80054

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-12260iAE101..3DS..GT199205-199505

main48609-12270iAE104,CE100..4DS;AE100,101,CE104,106,108,109,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE199106-199508

main48609-12290iAE101..GT199106-199505

main48609-12330iAE100,104,109,CE10#,EE10#199508-199705

main48609-12340iAE101199605-200008

sub48609-12341

main48609-12370iAE100,104,109,CE10#,EE10#199705

*B/S

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22049iAE10#,CE10#,EE10#199106

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main94182-11400iAE10#,CE10#,EE10#199106

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-12260iAE101..3DS..GT199205-199505

main48609-12270iAE104,CE100..4DS;AE100,101,CE104,106,108,109,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE199106-199508

main48609-12290iAE101..GT199106-199505

main48609-12330iAE100,104,109,CE10#,EE10#199705

main48609-12340iAE101199605-200008

sub48609-12341

main48609-12370iAE109,CE106,108,109,EE10#199704-199705

*B/S

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22049iAE10#,CE10#,EE10#199106

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main94182-11400iAE10#,CE10#,EE10#199106

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-12070iAE10#,CE10#,EE10#199602

main48684-32010iAE10#,CE10#,EE10#199106-199602

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-12070iAE10#,CE10#,EE10#199602

main48684-32010iAE10#,CE10#,EE10#199106-199602

48811BAR, STABILIZER, FRONT

main48811-12770iAE101199205-200008

main48811-12780iAE101..3DS..GT199205-199505

main48811-12821iAE101..GT199106-199205

main48811-12860iAE104,109,CE104,105,109..4DS,V199109

main48811-12890iCE100,102,106,107,108..CTD,DX,DXJ,GL,L,LX,SEL,XE199106

main48811-1A011iAE101..SEG199106-199205

sub48811-12720

main48811-1A040iAE104199505-199705

main48811-1A120iAE104199705-200008

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-12200×2iAE101..3DS..GT199205-199505

main48815-12220×2iAE104,109,CE104,105,109..4DS,V199205

main48815-12230×2iAE101,CE100,106,108..BZT,CTD,DX,GL,GT,L,LX,SEG,SEL,SJ,XE199205-199705

main48815-12240×2iAE104199505-199705

48817CUSHION, FRONT STABILIZER

main48817-30020×8iCE100..4DS;AE104,109,CE102,104,105,106,107,108,109199106

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032×8iCE100..4DS;AE104,109,CE102,104,105,106,107,108,109199106

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015×2iCE100..4DS;AE104,109,CE102,104,105,106,107,108,109199106

48819ABOLT, FRONT STABILIZER

main48819-20030×2iCE100..4DS;AE104,109,CE102,104,105,106,107,108,109199106

48820LINK ASSY, FRONT STABILIZER

main48820-12010×2iAE101..3DS..GT199205-199505

main48820-20010×2iAE101199106-199107

main48820-20021×2iAE101..GT199205-199505

main48820-33010×2iAE101..BZT,SEG,SJ199205-200008

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10183×4iAE101199106-200008

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-12120iAE101..3DS..GT199205-199505

main48824-12130iCE100..4DS;AE101,104,109,CE102,104,105,106,107,108,109199106

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48829-12050iAE101..3DS..GT199205-199505

main48829-12060iCE100..4DS;AE101,104,109,CE102,104,105,106,107,108,109199106

9017808013

main90178-08013

9418210800

main94182-10800

33 parts on this diagram · 2 diagrams in section
