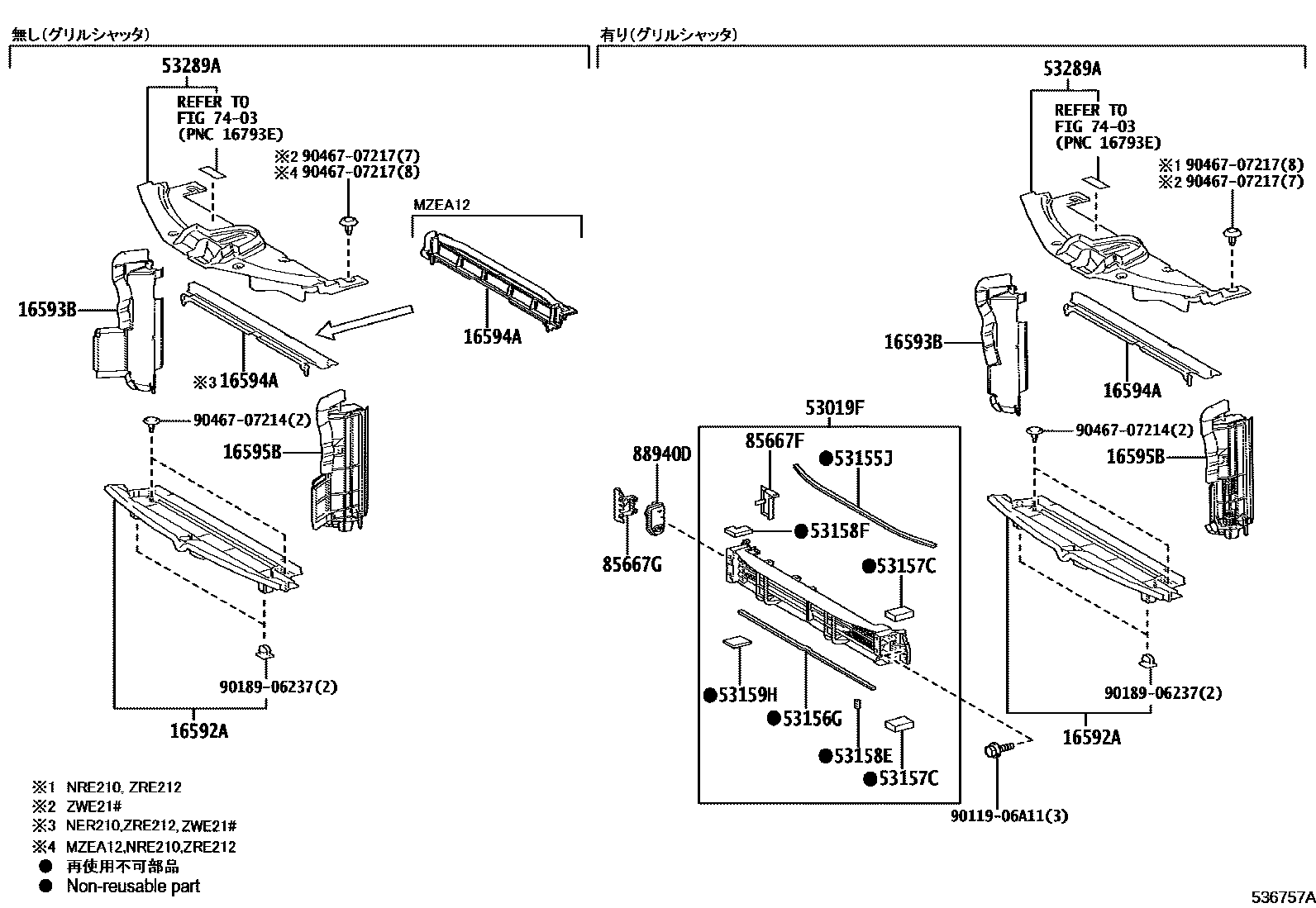

Toyota COROLLA — FRONT FENDER APRON & DASH PANEL

0001 1�������&��������������� 0002 1������� & ��������������� 0003 1�����������&���������� 0004 1����������� & ���������� 0005 1���������

16592AGUIDE, RADIATOR AIR, NO.3

main16592-24010i8NRFTS,2ZRFXE..NRE210,ZWE21#201908-202001

main16592-24050supersedes 16592-24050iM20AFKS,8NRFTS,2ZRFXE..MZEA12,NRE210,ZWE21#202002

main16592-37070i2ZRFAE..ZRE212201908

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-24020supersedes 16593-24020i2ZRFXE..ZWE215,219..HBDG,HBDWB,HBDX202210

main16593-37130i8NRFTS,2ZR#..NRE210,ZRE212,ZWE211,214..GX,HBDWB,S,WB201908

main16593-37150i2ZRFXE..ZWE211,214..HBDGX,HBDS201908

16594AGUIDE, RADIATOR AIR, NO.2

main16594-24010iM20AFKS..MZEA12202006

main16594-24040supersedes 16594-24040i2ZRFXE..ZWE215,219..HBDG,HBDWB,HBDX202210

main16594-37010i2ZRFXE..ZWE211,214201908

main16594-37040i2ZRFAE..ZRE212201908

main16594-47010i8NRFTS..NRE210201908

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-24020supersedes 16595-24020i2ZRFXE..ZWE215,219..HBDG,HBDWB,HBDX202210

main16595-37130i2ZRFAE..ZRE212201908

main16595-37150i2ZRFXE..ZWE211,214..HBDWB201908

main16595-37160i2ZRFXE..ZWE211,214..HBDGX,HBDS201908

main16595-47030i8NRFTS..NRE210201908

53019FSHUTTER SUB-ASSY, RADIATOR

main53019-12020iZWE211,214..HBDGX,HBDS201908

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-12100iZWE211,214..HBDGX,HBDS201908

53156GSEAL, RADIATOR GRILLE, NO.2

main53156-12040iZWE211,214..HBDGX,HBDS201908

53157CSEAL, RADIATOR GRILLE, NO.3

main53157-12010×2iZWE211,214..HBDGX,HBDS201908

53158ESEAL, RADIATOR GRILLE, NO.4

main53158-12010iZWE211,214..HBDGX,HBDS201908

53158FSEAL, RADIATOR GRILLE, NO.4

main53158-47010iZWE211,214..HBDGX,HBDS201908

53159HSEAL, RADIATOR GRILLE, NO.5

main53159-47030iZWE211,214..HBDGX,HBDS201908

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-12080iZWE211,214201908

main53289-12090iMZEA12,NRE210,ZRE212201908

main53289-12120iZWE215,219202210

main53289-12130iMZEA17202210-202504

7403

85667FCOVER, MOTOR

main85667-12010iZWE211,214..HBDGX,HBDS201908

85667GCOVER, MOTOR

main85667-47010iZWE211,214..HBDGX,HBDS201908

88940DACTUATOR ASSY, SWING GRILLE

main88940-12050iZWE21#..HBDGX,HBDS201908-202107

main88940-12071iZWE211,214..HBDGX,HBDS202107

9011906A11

main90119-06A11

9018906237

main90189-06237

9046707214

main90467-07214

9046707217

main90467-07217

20 parts on this diagram · 5 diagrams in section
