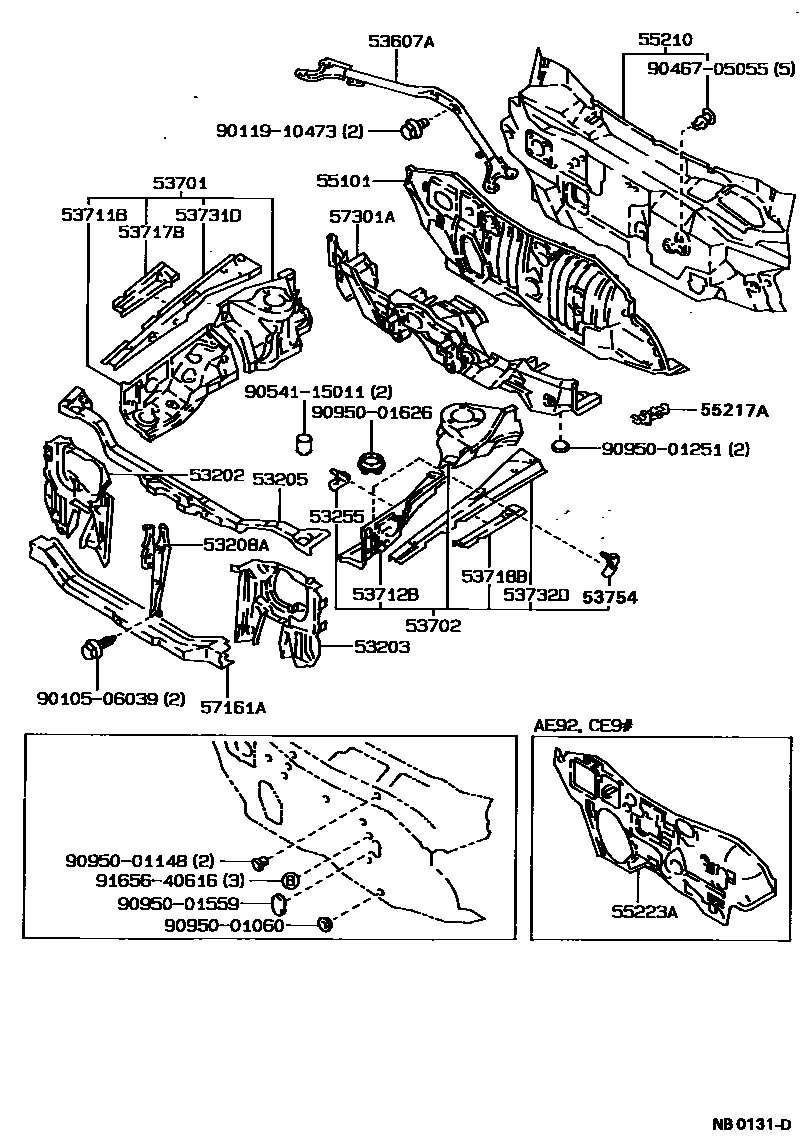

Toyota COROLLA — FRONT FENDER APRON & DASH PANEL

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-12290iAE9#,CE9#,EE9#198705-199108

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-12250iAE9#,CE9#,EE9#198705-199108

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-12928iAE91,CE9#,EE9#199108-199205

main53216-12929iAE92198705-199205

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-12340iCE97,EE97..L;AE9#,CE90,95,EE90..4D,WG198705-199108

main53208-12350iCE96,97,EE96,97,98..CTD,DX,GL,STD198708-199109

main53208-12360iAE91,92,EE90..3D,5D198705-199205

53255BRACKET, RELAY BOX MOUNTING

main53255-12010iAE9#,CE9#,EE9#198705-199108

53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER

main53607-12020iAE92198705-199205

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-1A010iAE9#,CE9#,EE9#198705-199108

main53701-1A030iAE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE198905-199008

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-1A030iAE9#,CE9#,EE9#198705-199108

53711BAPRON, FRONT FENDER, FRONT RH

main53711-12210iAE9#,CE9#,EE9#199108-199205

main53711-12250iAE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE198905-199008

53712BAPRON, FRONT FENDER, FRONT LH

main53712-12170iAE9#,CE9#,EE9#198705-199108

53717BGUSSET, FENDER APRON, RH

main53717-12040iAE9#,CE9#,EE9#199108-199205

53718BGUSSET, FENDER APRON, LH

main53718-12040iAE9#,CE9#,EE9#198802-199108

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-12130iAE9#,CE9#,EE9#198705-198908

main53731-12140iAE9#..(4FC,5F)..(FXGT,FXGTV,FXVS,FXZS,GT,SE,TX,XE)199011-199106

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-12110iAE9#,CE9#,EE9#198705-198908

main53732-12120iAE9#,CE9#,EE9#199011-199108

53754BRACKET, RELAY BOX MOUNTING, NO.2

main53754-12010iAE9#,CE9#,EE9#198705-198905

55101PANEL SUB-ASSY, DASH

main55101-1A070iCE90..4FC..SE;AE9#..4FC..(FXG,FXGT,FXGTV,FXV,FXVS,FXZI,FXZS,G,GT,SE,XE)198705-199205

main55101-1A080iAE91,CE90,96,97,EE9#..MTM..(CTD,DX,FXD,FXL,GL,L,LT,STD,TX,XE)198705-199205

sub55101-1A630

main55101-1A090iAE91,CE90,96,97,EE90,96,98..ATM..(CTD,DX,FXL,GL,L,LT,TX,XE)198705-199205

main55101-1A370iCE90..5F..SE;AE9#,CE95..5F..(FXG,FXGT,FXGTV,FXV,FXVS,FXZI,FXZS,G,GT,SE,TX,XE)198705-199205

sub55101-1A630

55210INSULATOR ASSY, DASH PANEL

main55210-12350iAE9#,CE9#,EE9#198705-199108

55217ARETAINER, DASH PANEL SILENCER

main55217-12080iAE92..4FC..GT198905-199106

55223AINSULATOR, DASH PANEL, OUTER

main55223-12050iAE92,CE9#198705-199205

57161AMEMBER, FRONT CROSS, FRONT W/REAR

main57161-12911iAE9#,CE9#,EE9#198705-199108

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-12100iAE9#,CE9#,EE9#198705-199108

9010506039

main90105-06039

9011910473

main90119-10473

9046705055

main90467-05055

9054115011

main90541-15011

9095001060

main90950-01060

9095001148

main90950-01148

9095001251

main90950-01251

9095001559

main90950-01559

9095001626

main90950-01626

9165640616

main91656-40616

31 parts on this diagram · 1 diagram in section
