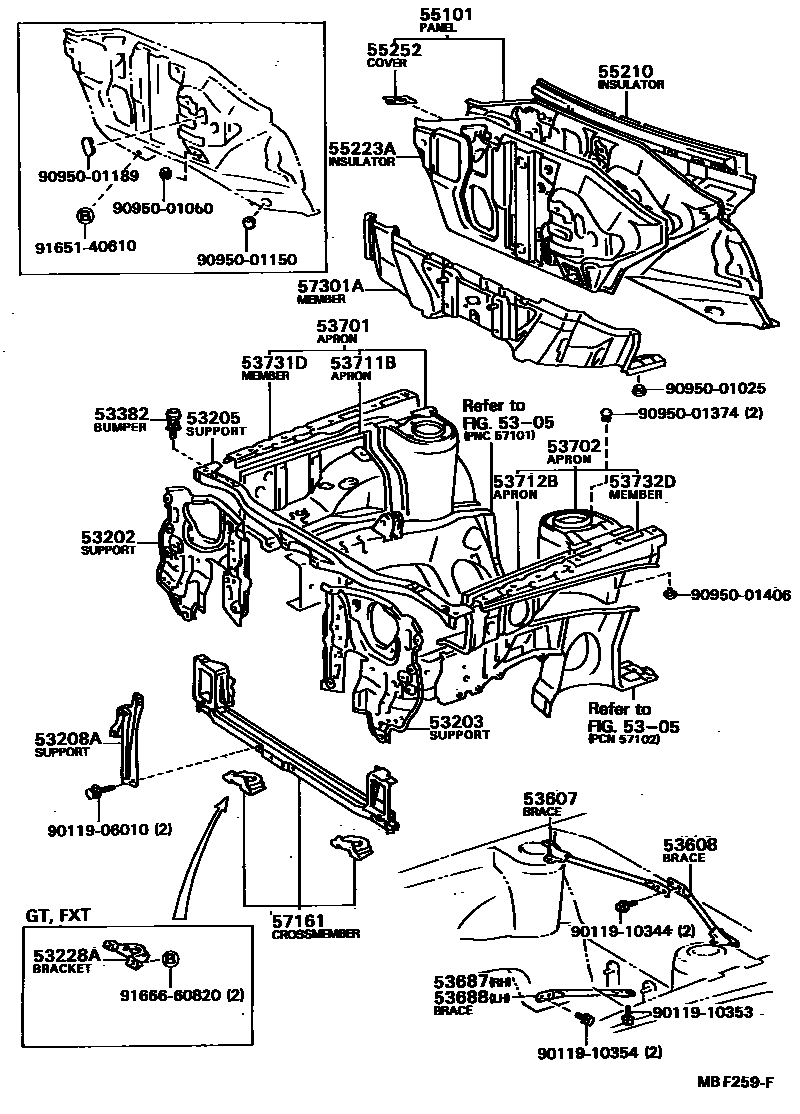

Toyota COROLLA — FRONT FENDER APRON & DASH PANEL
5305FLOOR SIDE MEMBER
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53228ABRACKET, RADIATOR MOUNTING, LOWER NO.1
53382BUMPER, HOOD, FRONT
53607BRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, RH
53608BRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, LH
53687BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, RH
53688BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, LH
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
55101PANEL SUB-ASSY, DASH
*52
55210INSULATOR ASSY, DASH PANEL
55223AINSULATOR, DASH PANEL, OUTER
55252COVER, DASH PANEL HOLE
57161CROSSMEMBER, FRONT
57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT
9011906010
main90119-06010
9011910344
main90119-10344
9011910353
main90119-10353
9011910354
main90119-10354
9095001025
main90950-01025
9095001060
main90950-01060
9095001150
main90950-01150
9095001189
main90950-01189
9095001374
main90950-01374
9095001406
main90950-01406
9165140610
main91651-40610
9166660820
main91666-60820
35 parts on this diagram · 1 diagram in section
FRONT FENDER APRON & DASH PANEL for Toyota COROLLA
This section contains 35 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota COROLLA. Key components include: FLOOR SIDE MEMBER, SUPPORT SUB-ASSY, RADIATOR, RH, SUPPORT SUB-ASSY, RADIATOR, LH, SUPPORT SUB-ASSY, RADIATOR, UPPER, SUPPORT SUB-ASSY, HOOD LOCK.
