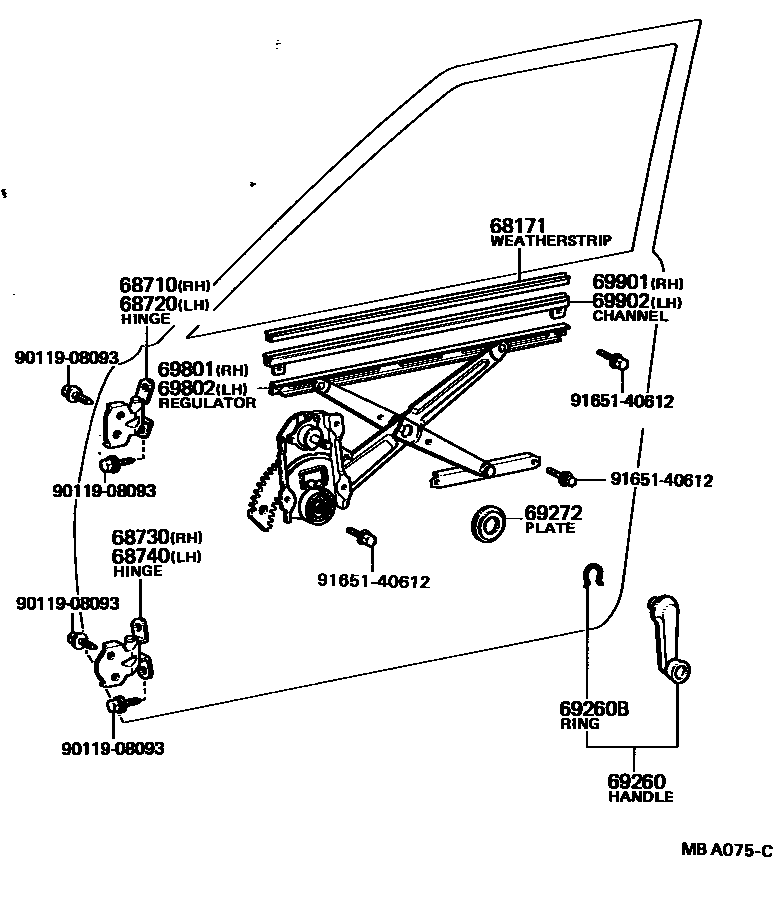

Toyota COROLLA — FRONT DOOR WINDOW REGULATOR & HINGE
68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68710HINGE ASSY, FRONT DOOR, UPPER RH
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
GRAY,GRAY,TRIM1#
BROWN,LIGHT BROWN,TRIM4#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BLACK,BLACK,TRIM2#
DARK BROWN,BROWN,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
KOJIMA,BLACK,BLACK,TRIM2#
KOJIMA,DARK BROWN,BROWN,TRIM4#
KOJIMA,BLUE,BLUE,TRIM8#
AISIN,BLACK,BLACK,TRIM2#
AISIN,DARK BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
AISIN,BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#,4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DARK BROWN,BROWN,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
GLASS,T=3.5
GLASS,T=4.0
69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
GLASS,T=3.5
GLASS T=4.0
9011908093
main90119-08093
9165140612
main91651-40612
14 parts on this diagram · 4 diagrams in section
FRONT DOOR WINDOW REGULATOR & HINGE for Toyota COROLLA
This section contains 46 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota COROLLA. Key components include: STABILIZER, FRONT DOOR GLASS, STOPPER ASSY, DOOR GLASS(FOR FRONT DOOR), SUPPORT, FRONT DOOR TRIM, STABILIZER, FRONT DOOR GLASS, OUTER, OILER, FRONT DOOR WINDOW BAR.
