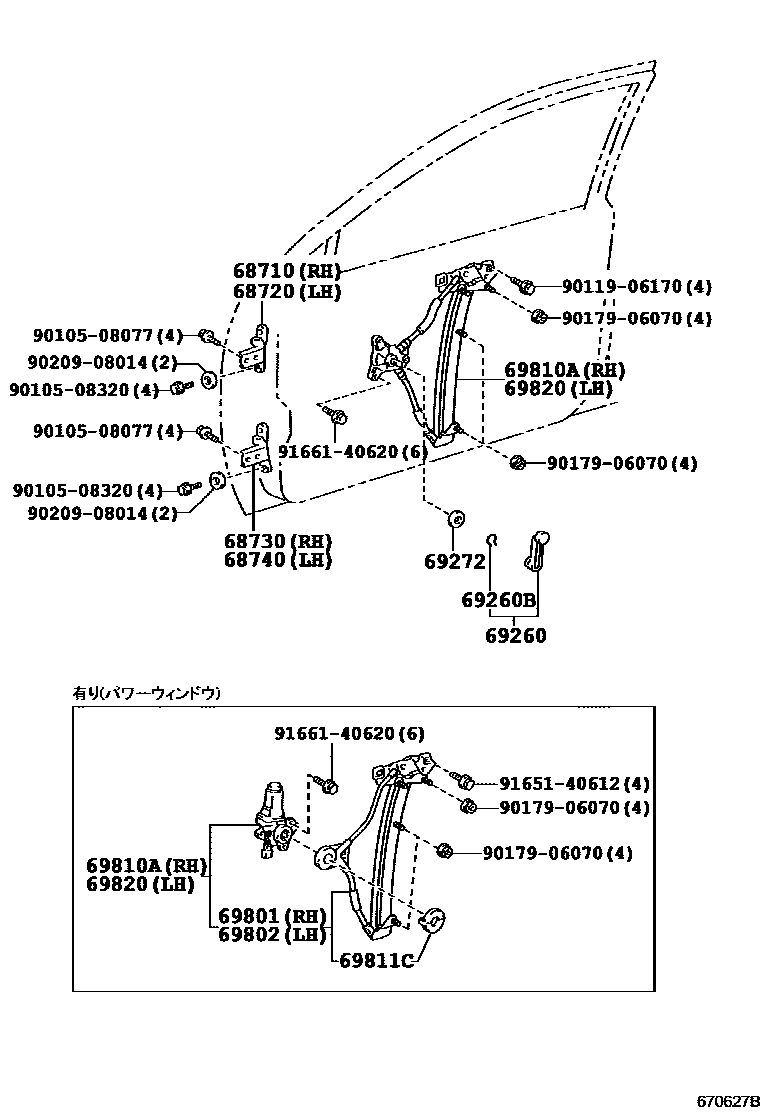

Toyota COROLLA — FRONT DOOR WINDOW REGULATOR & HINGE
68710HINGE ASSY, FRONT DOOR, UPPER RH
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
DARK BLUE,TRIM8#
TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
TAUPE,TRIM9#
DARK BLUE
DK.CHARCOAL,TRIM1#
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
main69801-12140iCE106,109,EE103..DX;AE109,CE105,107,EE102..DX,GL;AE100,101,104,CE100,101,102,104,EE101..(4DS,WG)..(BZT,G,GT,L,LT,LX,SEG,SEL,XE)199401-200008
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH
main69810-12390iEE101..LX,XE;AE109,CE104,106,109,EE102,103..DX,GL,LX,SEL,XE;AE100,101,104,CE100,108,EE104..(4DS,WG)..(BZT,G,GT,L,SEG,SEL)199401-199704
69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE
main69811-32040×2iAE109,CE105,106,107,109,EE102,103..DX,GL;AE100,101,104,CE100,101,102,104,108,EE101,104..(4DS,WG)..(BZT,G,GT,L,LT,LX,SEG,SEL,XE)199401-200008
69820REGULATOR ASSY, FRONT DOOR WINDOW, LH
main69820-12390iAE109,CE106,109,EE102,103..DX,GL;AE100,104,CE100,104,108,EE101,104..L,LT,LX,XE199401-199704
9010508077
main90105-08077
9010508320
main90105-08320
9011906170
main90119-06170
9017906070
main90179-06070
9020908014
main90209-08014
9165140612
main91651-40612
9166140620
main91661-40620
19 parts on this diagram · 2 diagrams in section
FRONT DOOR WINDOW REGULATOR & HINGE for Toyota COROLLA
This section contains 22 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota COROLLA. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, HANDLE ASSY, FRONT DOOR WINDOW REGULATOR.
