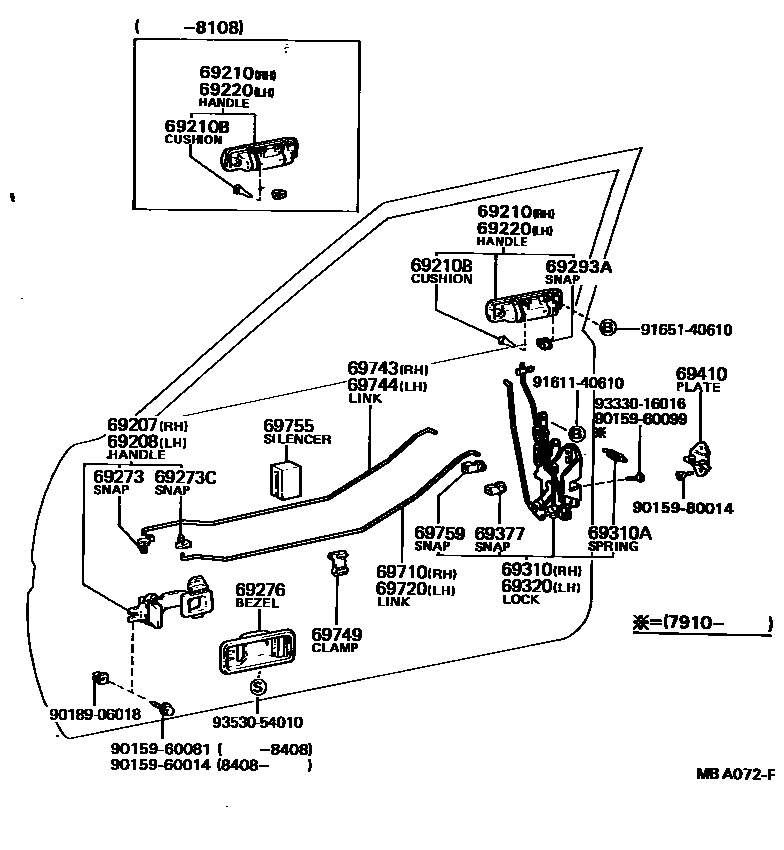

Toyota COROLLA — FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69273CSNAP, DOOR INSIDE HANDLE LINK
69276BEZEL, FRONT DOOR INSIDE HANDLE
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69310ASPRING(FOR FRONT DOOR LOCK)
69320LOCK ASSY, FRONT DOOR, LH
69377SNAP, FRONT DOOR LOCK CONTROL ROD
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69743LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH
69744LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH
69749CLAMP, FRONT DOOR LOCK LINK
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
9015960014
main90159-60014
9015960081
main90159-60081
9015960099
main90159-60099
9015980014
main90159-80014
9018906018
main90189-06018
9161140610
main91611-40610
9165140610
main91651-40610
9333016016
main93330-16016
9353054010
main93530-54010
30 parts on this diagram · 4 diagrams in section
FRONT DOOR LOCK & HANDLE for Toyota COROLLA
This section contains 35 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota COROLLA. Key components include: FRONT DOOR PANEL & GLASS, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH, CUSHION(FOR FRONT DOOR OUTSIDE HANDLE).
