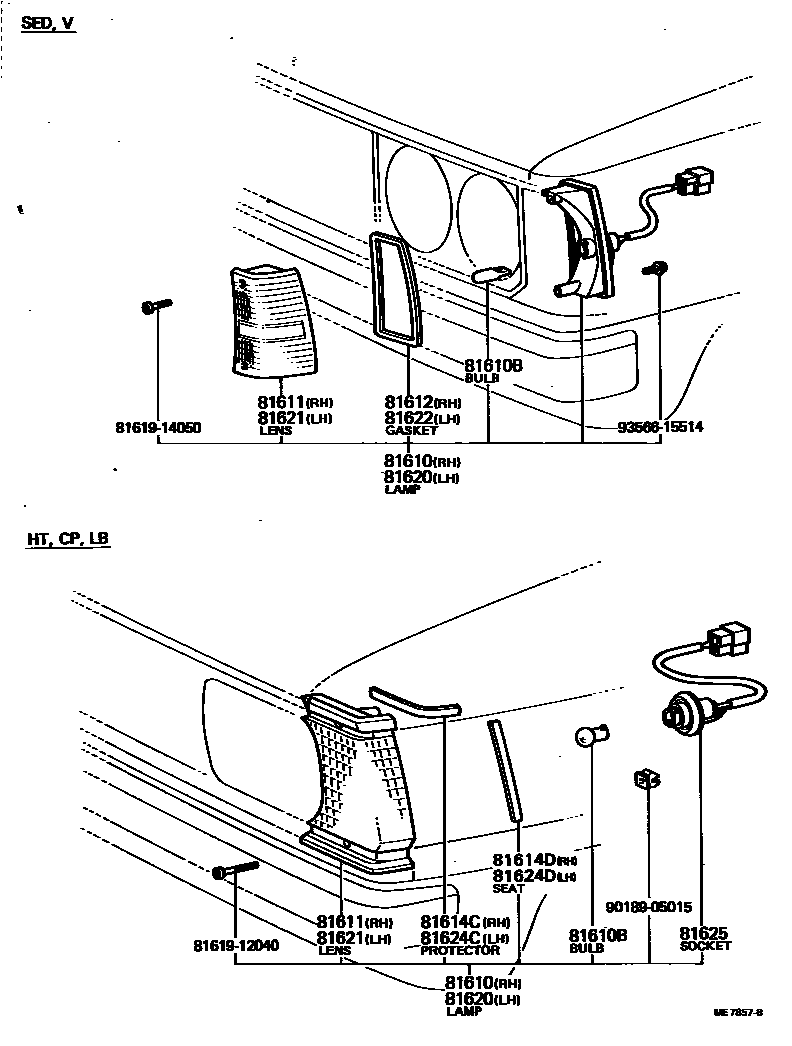

Toyota COROLLA — FRONT CLEARANCE LAMP
81610LAMP ASSY, PARKING & CLEARANCE, RH
81610BBULB(FOR PARKING & CLEARANCE LAMP)
81611LENS, PARKING & CLEARANCE LAMP, RH
BLACK
81612GASKET, PARKING AND CLEARANCE LAMP LENS, RH
81614CPROTECTOR, CLEARANCE LAMP, RH
81614DSEAT, CLEARANCE LAMP, RH
81620LAMP ASSY, PARKING & CLEARANCE, LH
BLACK
81621LENS, PARKING & CLEARANCE LAMP, LH
81622GASKET, PARKING AND CLEARANCE LAMP LENS, LH
81624CPROTECTOR, CLEARANCE LAMP, LH
81624DSEAT, CLEARANCE LAMP, LH
81625SOCKET AND WIRE, PARKING AND CLEARANCE LAMP
8161912040
main81619-12040
8161914050
main81619-14050
9018905015
main90189-05015
9356615514
main93566-15514
16 parts on this diagram · 5 diagrams in section
FRONT CLEARANCE LAMP for Toyota COROLLA
This section contains 27 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota COROLLA. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, GASKET, PARKING AND CLEARANCE LAMP LENS, RH, PROTECTOR, CLEARANCE LAMP, RH.
