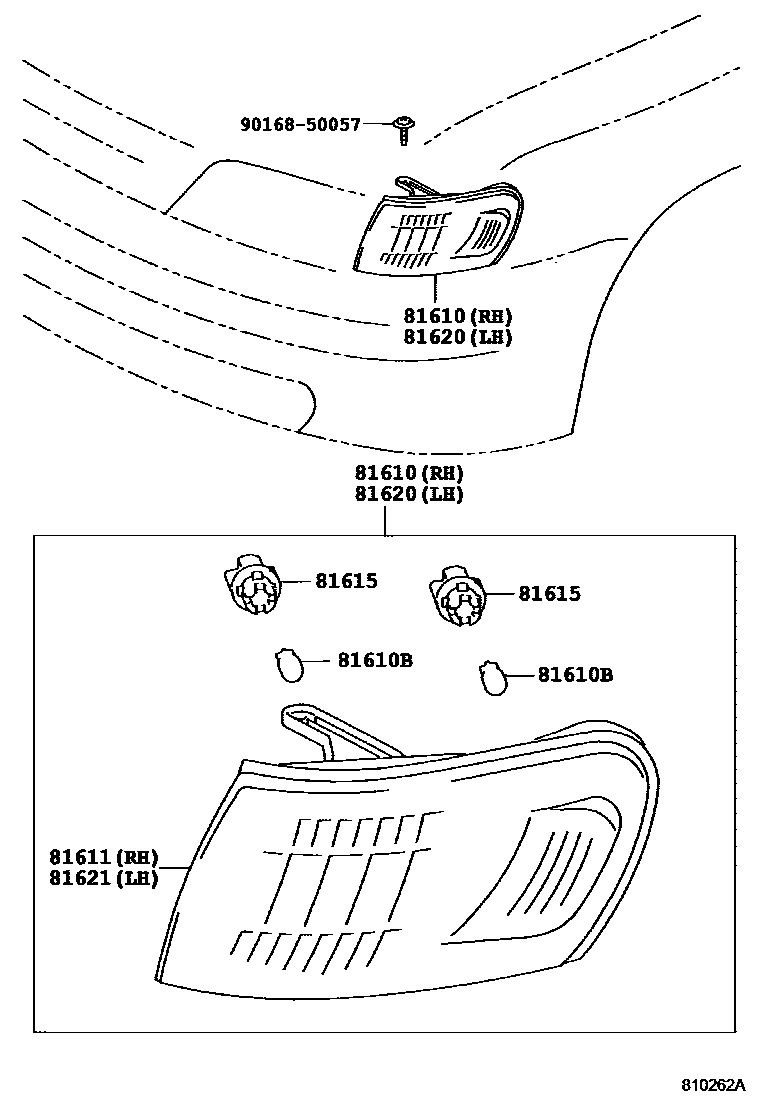

Toyota COROLLA — FRONT CLEARANCE LAMP

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-12530i199106-199705

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main99132-12050×4i199106-199705

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-12530i199106-199705

81615SOCKET AND WIRE, CLEARANCE LAMP

main90075-99007×2i199106-199705

main90075-99091×2i199106-199705

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-12530i199106-199705

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-12530i199106-199705

9016850057

main90168-50057

7 parts on this diagram · 1 diagram in section

FRONT CLEARANCE LAMP for Toyota COROLLA

This section contains 7 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota COROLLA. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, SOCKET AND WIRE, CLEARANCE LAMP, LAMP ASSY, PARKING & CLEARANCE, LH.
