Toyota COROLLA — FRONT CLEARANCE LAMP

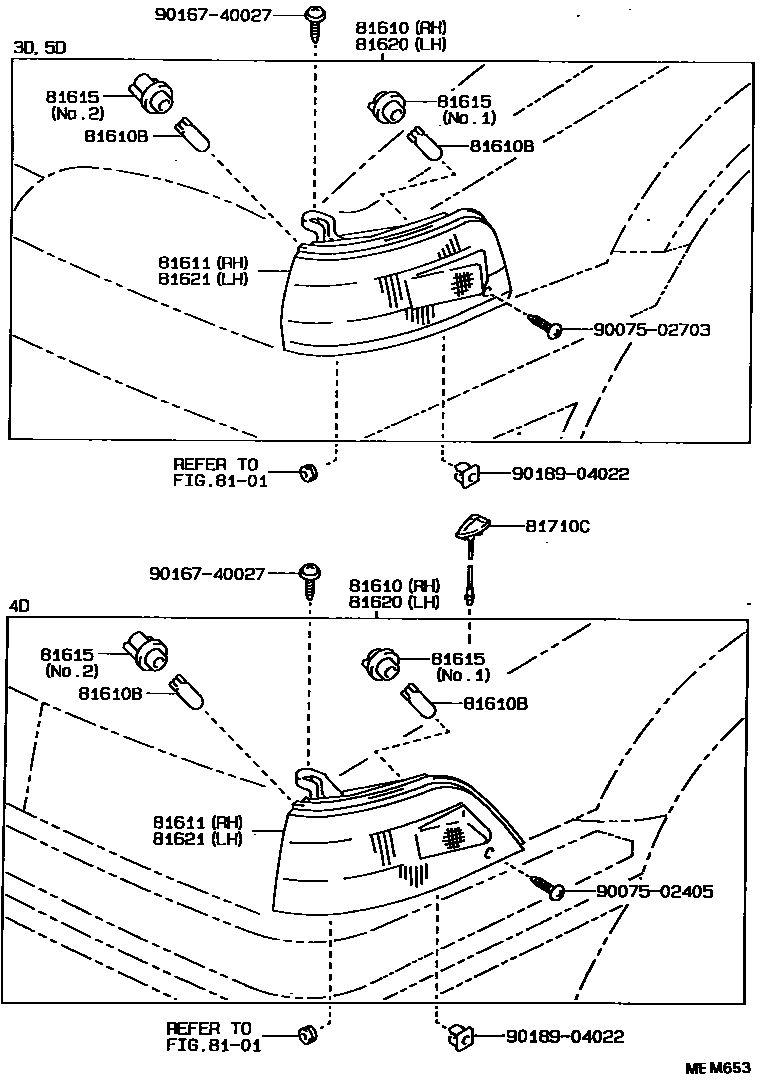

Parts diagram

8101HEADLAMP

→ Go to FIG 81-01

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-12390i198705-198707

main81610-12391i198707-198905

main81610-12471i198705-199205

main81610-12500i198905-199106

main81610-13060i198708-199109

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main99132-12050×4i198705-199108

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-12390i198705-198707

main81611-12391i198707-198905

main81611-12471i198705-199205

main81611-12500i198905-199106

main81611-16100i198708-199109

81615SOCKET AND WIRE, CLEARANCE LAMP

main90075-99006×2i199108-199205

main90075-99007×2i198705-199108

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-12390i198705-198707

main81620-12391i198707-198905

main81620-12471i198705-199205

main81620-12500i198905-199106

main81620-13060i198708-199109

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-12390i198705-198707

main81621-12391i198707-198905

main81621-12471i198705-199205

main81621-12500i198905-199106

main81621-16100i198708-199109

81710CMARKER ASSY, FENDER

main81710-12010×2i198905-199106

9007502405

main90075-02405

9007502703

main90075-02703

9016740027

main90167-40027

9018904022

main90189-04022

12 parts on this diagram · 2 diagrams in section

FRONT CLEARANCE LAMP for Toyota COROLLA

This section contains 15 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota COROLLA. Key components include: HEADLAMP, LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, GASKET, PARKING AND CLEARANCE LAMP LENS, RH.
