Toyota COROLLA — FRONT CLEARANCE LAMP

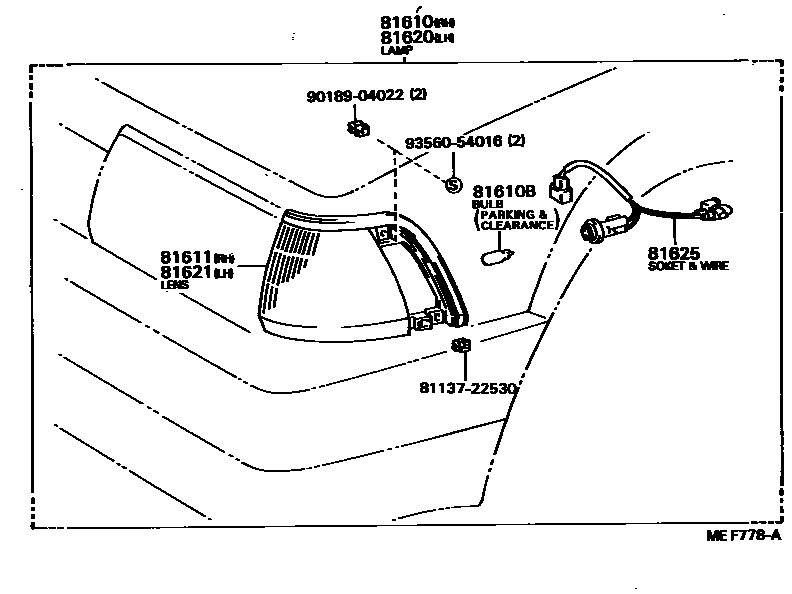

Parts diagram
81610LAMP ASSY, PARKING & CLEARANCE, RH
main81610-12181i198505-198704
main81610-12270i198505-198704
GL SALOON OR LIME
main81610-19455i198305-198505
main81610-19575i198410-198704
81610BBULB(FOR PARKING & CLEARANCE LAMP)
main99132-12050×2i198305-198704
81611LENS, PARKING & CLEARANCE LAMP, RH
main81611-12180i198305-198505
main81611-12181i198505-198704
main81611-12250i198410-198704
main81611-12270i198505-198704
GL SALOON OR LIME
81620LAMP ASSY, PARKING & CLEARANCE, LH
main81620-12181i198505-198704
main81620-12270i198505-198704
GL SALOON OR LIME
main81620-19455i198305-198505
main81620-19575i198410-198704
81621LENS, PARKING & CLEARANCE LAMP, LH
main81621-12180i198305-198505
main81621-12181i198505-198704
main81621-12250i198410-198704
main81621-12270i198505-198704
GL SALOON OR LIME
81625SOCKET AND WIRE, PARKING AND CLEARANCE LAMP
main81615-12180×2i198305-198505
main81615-12181×2i198505-198704
main81615-12250×2i198410-198704
8113722530PROTECTOR, HEADLAMP, NO.2 RH
main81137-22530
9018904022
main90189-04022
9356054016
main93560-54016

9 parts on this diagram · 2 diagrams in section

FRONT CLEARANCE LAMP for Toyota COROLLA

This section contains 14 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota COROLLA. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, LAMP ASSY, PARKING & CLEARANCE, LH, LENS, PARKING & CLEARANCE LAMP, LH.
